Otherwise it is displayed as .
In the Playback interface:

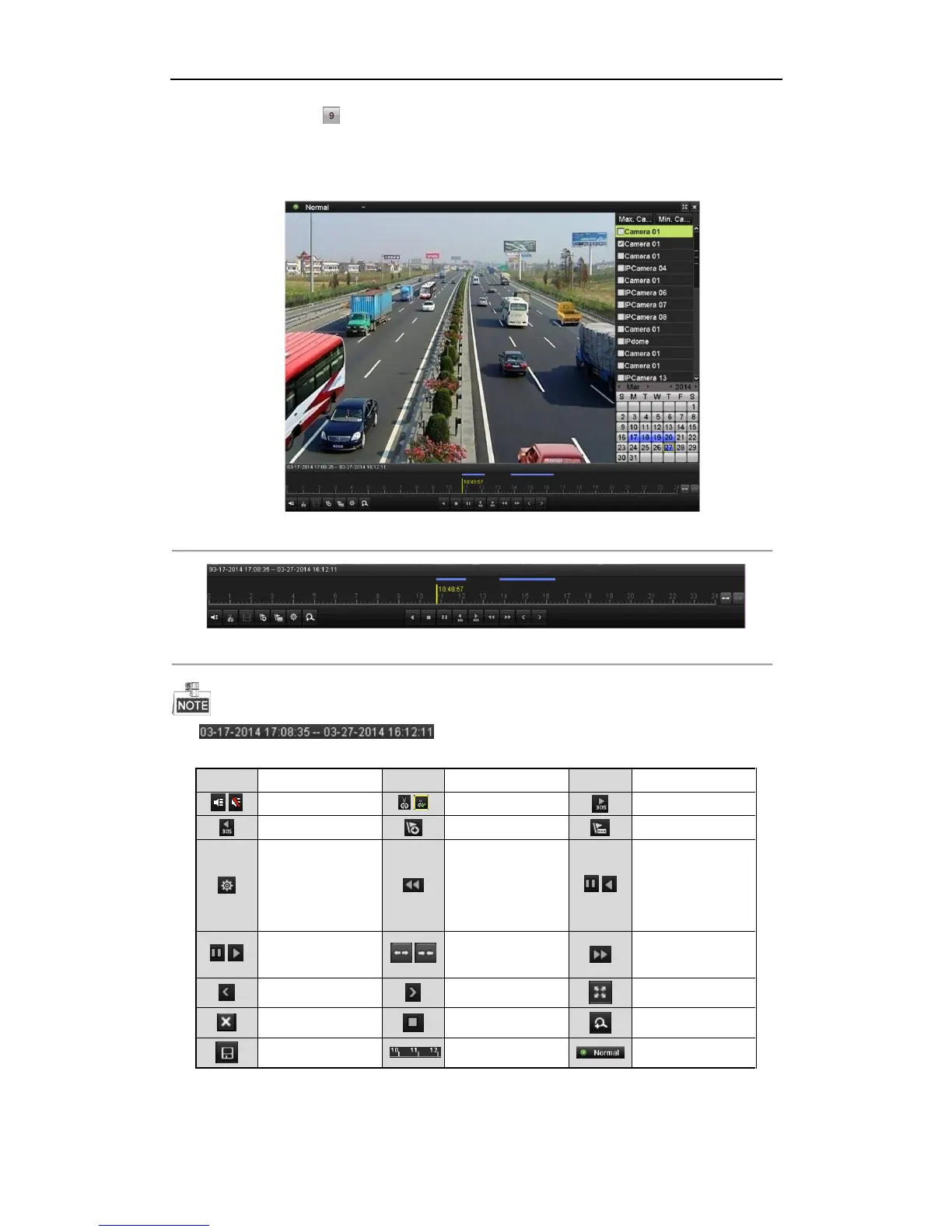

The toolbar in the bottom part of Playback interface can be used to control playing process, as shown in Figure 6.
6.
Figure 6. 6 Interface of Playback by Time
Figure 6. 7 Toolbar of Playback by Time
The indicates the start/end time of the record.
Table 6. 2 Detailed Explanation of Playback-by-time Interface
Button
Operation
Button
Operation
Button
Operation
/
Audio on/ Mute
/
Start/Stop clipping
30s forward
30s reverse
Add default tag
Add customized tag
Tag management
Speed down
/
Pause reverse play/
Reverse play/
Single-frame
reverse play
/
Pause play/ Play/
Single-frame play
/
Scaling up/down the
time line
Speed up
Previous day
Next day
Full Screen
Exit
Stop
Digital Zoom
Save the clips
Process bar
Video type

HIKVISION DS-7116NI-SN/P Specifications

General

Number of users	128 user(s)
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Power over Ethernet (PoE)	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-T
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	4 TB
Number of HDDs installed	0
Output voltage	48 V
Power consumption (max)	35 W
Power consumption (typical)	6 W
Product color	White
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Wi-Fi	No

Weight and Dimensions

Depth	205 mm
Width	255 mm
Height	45 mm
Weight	1000 g
