DS-7200HVI-ST/SN, DS-7204HFI-ST/SN, DS-7208HFI-ST/SN:

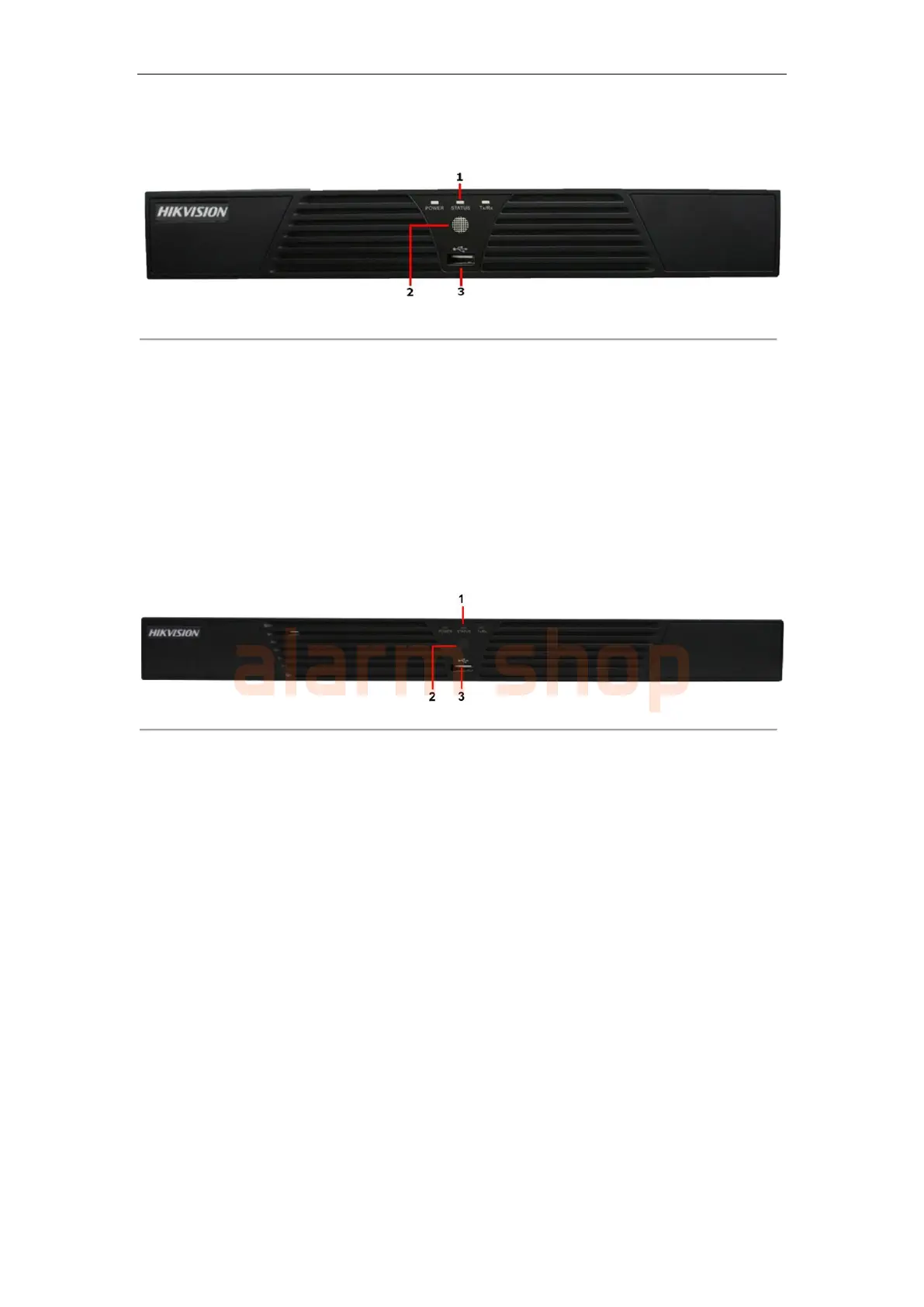

Figure 12. DS-7200HVI-ST/SN, DS-7204HFI-ST/SN, DS-7208HFI-ST/SN Front Panel
1. Status Indicators:
• POWER: the POWER indicator turns green when DVR is powered up.
• STATUS: the indicator lights when the compound key switches to numeric/letter input
mode.
• Tx/Rx: TX/RX indictor flickers green when network connection is functioning normally.
2. IR Receiver: operation by IR remote control.
3. USB Interface: Connects USB mouse or USB flash memory devices.
DS-7216HFI-ST/SN:
Figure 13. DS-7216HFI-ST/SN Front Panel
1. Status Indicators:
• POWER: the POWER indicator turns green when DVR is powered up.
• STATUS: the indicator lights when the compound key switches to numeric/letter input mode.
• Tx/Rx: TX/RX indictor flickers green when network connection is functioning normally.
2. IR Receiver: operation by IR remote control.
3. USB Interface: Connects USB mouse or USB flash memory devices.
