HIKVISION DS-7200-ST Series User Manual

User Manual of DS-7200-ST Series DVR
25
DS-7204HVI-ST/SN, DS-7208HVI-ST/SN, DS-7216HVI-ST/SN:

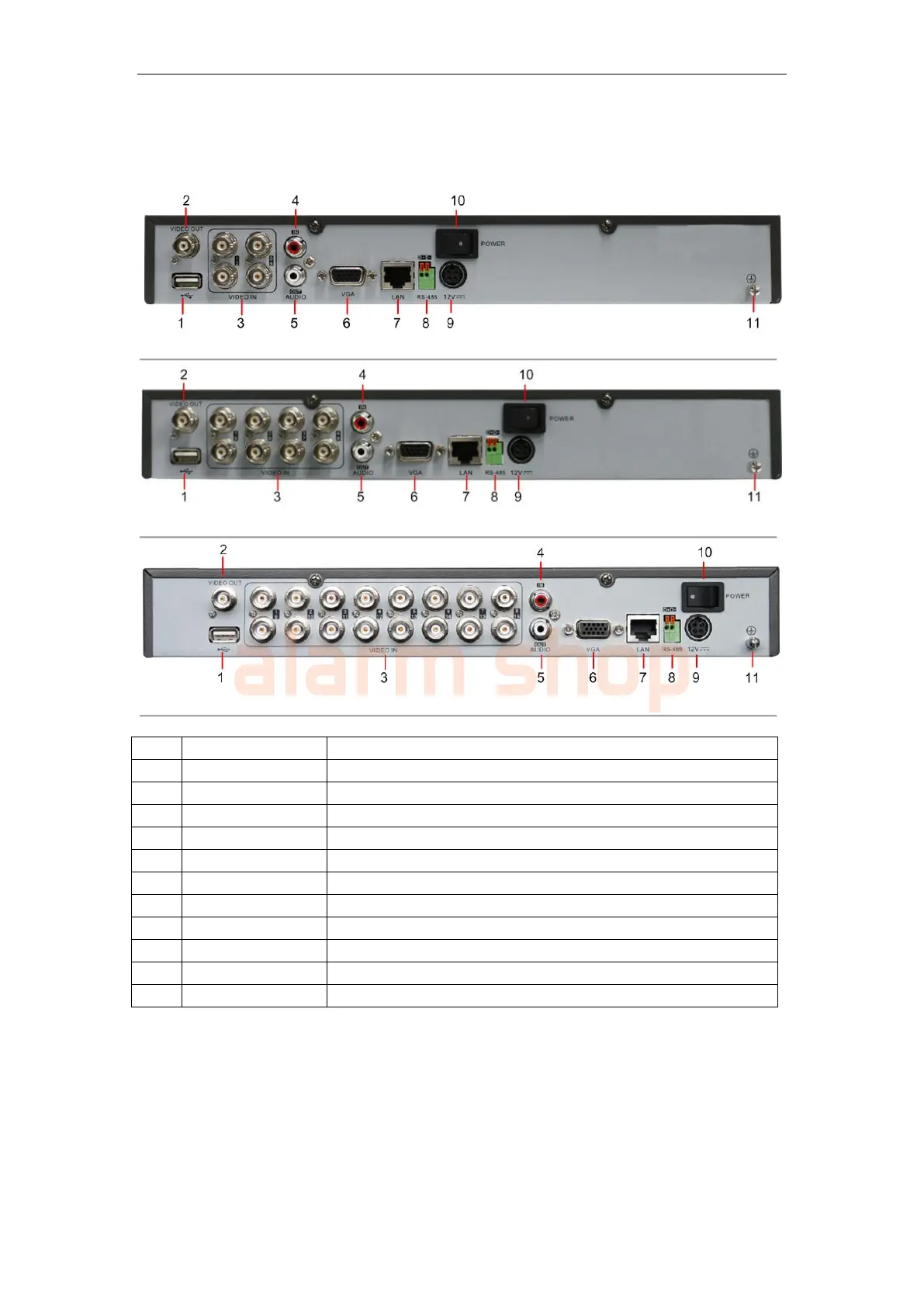

Figure 25. DS-7204HVI-ST/SN Rear Panel
Figure 26. DS-7208HVI-ST/SN Rear Panel
Figure 27. DS-7216HVI-ST/SN Rear Panel
No.
Item
Description
1
USB
Connector for USB devices
2
VIDEO OUT
BNC connectors for video output
3
VIDEO IN
BNC connectors for analog video input
4
AUDIO IN
RCA connectors for analog audio input
5
AUDIO OUT
RCA connector for audio output
6
VGA
DB15 connector for VGA output. Display local video output and menu
7
LAN
Connector for LAN (Local Area Network)
8
RS-485 Interface
Connector for RS-485 devices. D+, D- pin connects to PTZ
9
12V
12VDC power supply
10
POWER
Switch for turn on/off the device
11
GND
Ground(needs to be connected when DVR starts up)
