User Manual of DS-7200-ST Series DVR
30

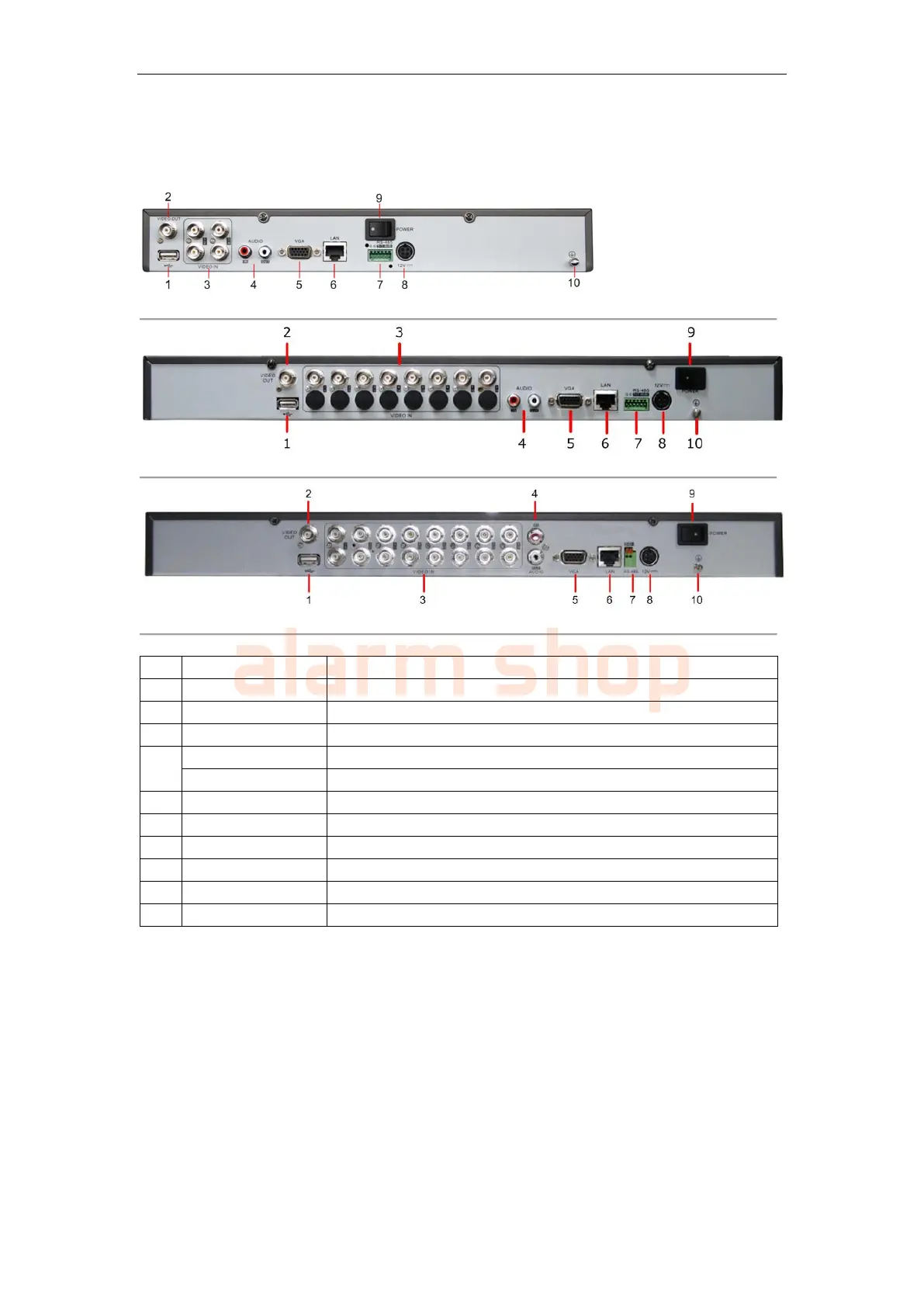

DS-7204HFI-ST/SE, DS-7208HFI-ST/SE, DS-7216HFI-ST/SE:
Figure 34. DS-7204HFI-ST/SE Rear Panel
Figure 35. DS-7208HFI-ST/SE Rear Panel
Figure 36. DS-7216HFI-ST/SE Rear Panel
No.
Item
Description
1
USB
Connector for USB devices
2
VIDEO OUT
BNC connectors for video output
3
VIDEO IN
BNC connectors for analog video input
4
AUDIO IN
RCA connectors for analog audio input
AUDIO OUT
RCA connector for audio output
5
VGA
DB15 connector for VGA output. Display local video output and menu
6
LAN
Connector for LAN (Local Area Network)
7
RS-485 Interface
Connector for RS-485 devices. T+, T- pin connects to PTZ
8
12V
12VDC power supply
9
POWER
Switch for turn on/off the device
10
GND
Ground(needs to be connected when DVR starts up)
