User Manual of DS-7200-ST Series DVR
32
DS-7204HFI-ST/RW:

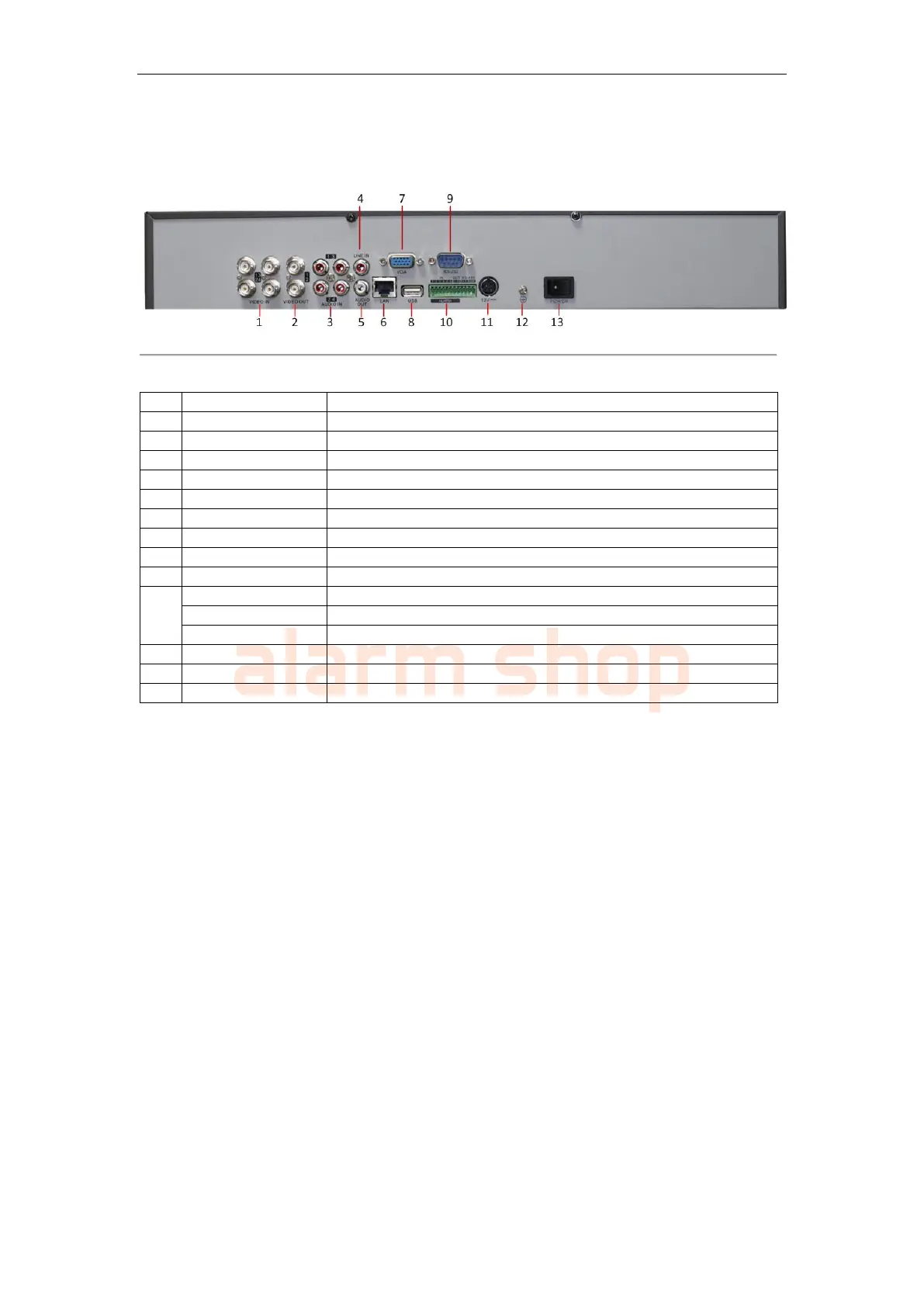

Figure 40. DS-7204HFI-ST/RW Rear Panel
No.
Item
Description
1
VIDEO IN
BNC connectors for analog video input
2
VIDEO OUT
VIDEO OUT1 is main video out, and VIDEO OUT2 is spot video out
3
AUDIO IN
RCA connectors for analog audio input
4
LINE IN
RCA connector for audio input
5
AUDIO OUT
RCA connector for audio output
6
LAN
Connector for LAN (Local Area Network)
7
VGA
DB15 connector for VGA output. Display local video output and menu
8
USB
Connector for USB devices
9
RS-232 Interface
DB9 connector for RS-232 devices
10
ALARM IN
Connector for alarm input
ALARM OUT
Connector for alarm output
RS-485 Interface
Connector for RS-485 devices. T+, T- pin connects to PTZ
11
12V
12VDC power supply
12
GND
Ground(needs to be connected when DVR starts up)
13
POWER
Switch for turn on/off the device
