DS-7204HVI-ST/L:

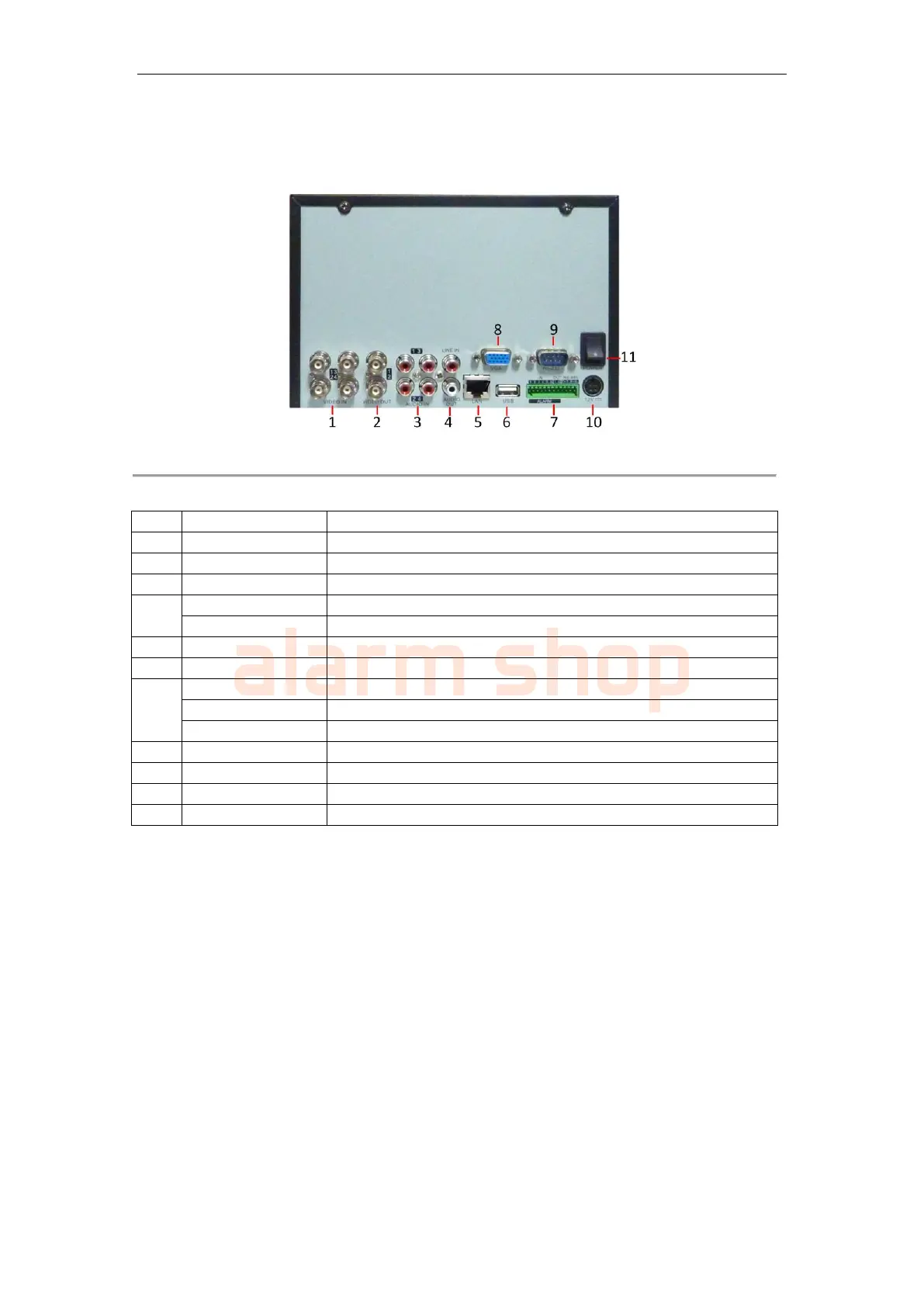

Figure 43. DS-7204HVI-ST/L Rear Panel
No.
Item
Description
1
VIDEO IN
BNC connectors for analog video input
2
VIDEO OUT
VIDEO OUT1 is main video out, and VIDEO OUT2 is spot video out
3
AUDIO IN
RCA connectors for analog audio input
4
LINE IN
RCA connector for audio input
AUDIO OUT
RCA connector for audio output
5
LAN
Connector for LAN (Local Area Network)
6
USB
Connector for USB devices
7
ALARM IN
Connector for alarm input
ALARM OUT
Connector for alarm output
RS-485 Interface
Connector for RS-485 devices. T+, T- pin connects to PTZ
8
VGA
DB15 connector for VGA output. Display local video output and menu
9
RS-232 Interface
DB9 connector for RS-232 devices
10
12V
12VDC power supply
11
POWER
Switch for turn on/off the device
