Digital Video Recorder User Manual
105
space.

The Redundant Record option is only available when the HDD mode is Group.

Redundant HDD is required for the redundant record function. For detailed information, see
Chapter 14.3.2 Setting HDD Property.

For network cameras, the parameters of Main Stream (Event) are not editable.
Step 5 Click Apply to save the settings.
Step 6 Optionally, you can click Copy to copy the settings to other analog channels if needed.

For -F series DVR, the analog signal inputs can be recognized automatically and mixed
randomly. So you can copy the same settings of the selected analog camera to any other
analog channel.

For other series, you can copy the same settings to the cameras with the same signal, e.g.,
the channel No. 1-3 connect to the Turbo HD cameras, and the channel No.4 connects to an
analog camera, and then the settings of channel No. 1 can be only copied to channel 2 and
3.

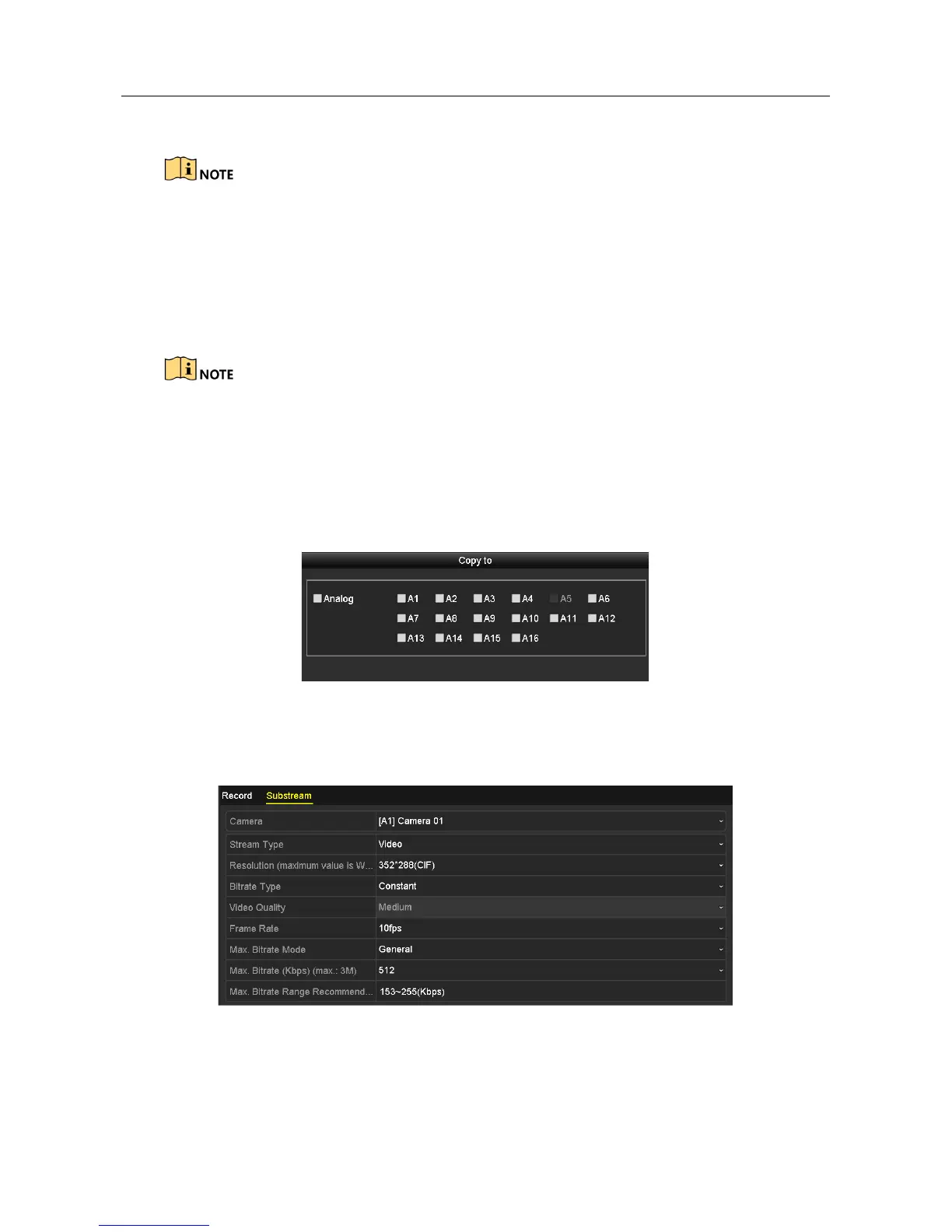

Figure 5-5 Copy Camera Settings
Step 7 Set encoding parameters for sub-stream.
1) Select the Sub-Stream tab.
Figure 5-6 Sub-Stream Encoding
2) Select a camera in the camera dropdown list.

HIKVISION DS-7216HQHI-F1/N Specifications

General

Video input channels	16 channels
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Power consumption (typical)	30 W
Voltage	12 V
Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Analog signal format system	NTSC, PAL
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
