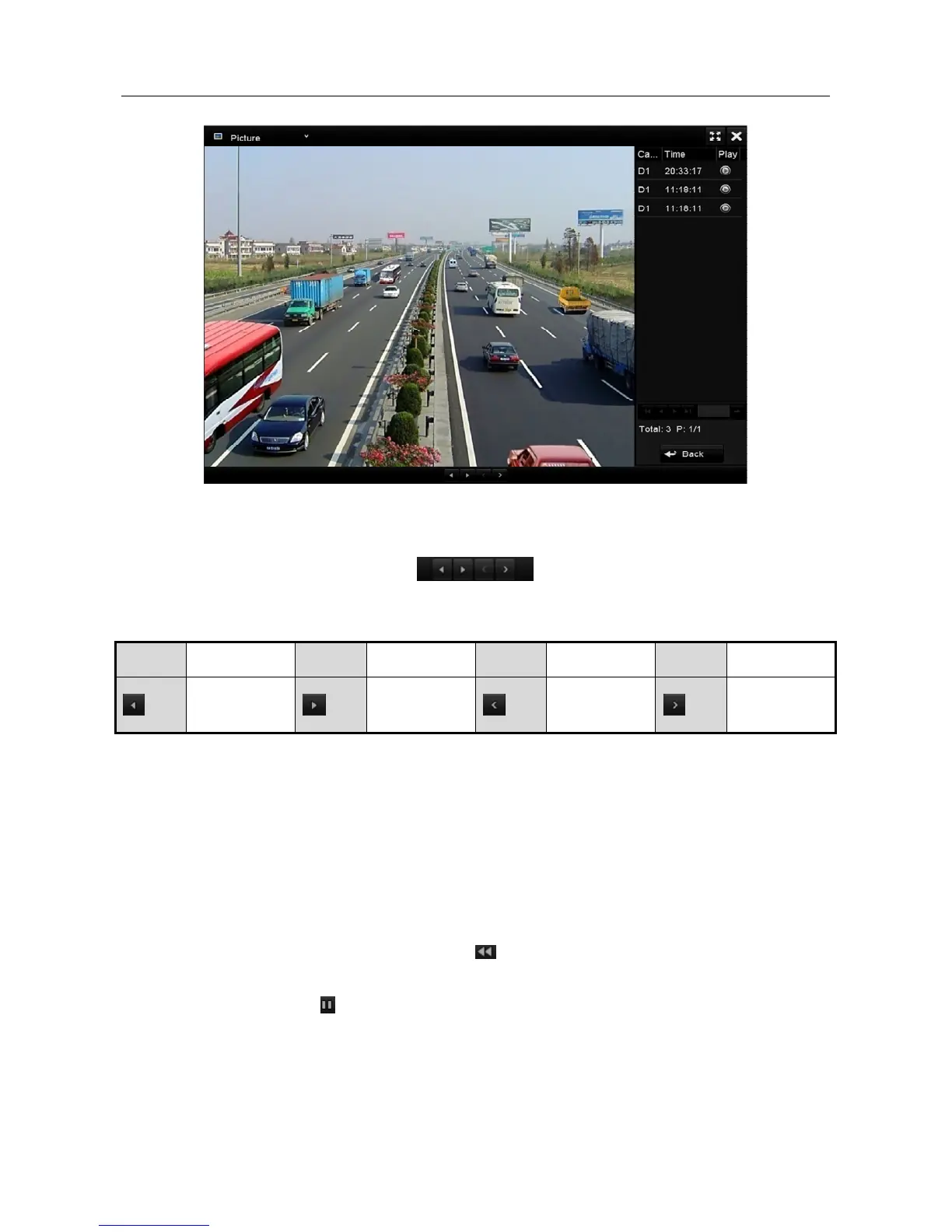

Figure 6-23 Result of Picture Playback
Step 7 The toolbar in the bottom part of Playback interface can be used to control playing process.
Figure 6-24 Picture Playback Toolbar
Table 6-3 Detailed Explanation of Picture-playback Toolbar
Button Function Button Function Button Function Button Function
Play reverse Play
Previous
Next picture
6.2 Auxiliary Functions of Playback
6.2.1 Playing Back Frame by Frame
Purpose
Play video files frame by frame, in order to check image details of the video when abnormal events
happen.
Step 1 Go to Playback interface and click button until the speed changes to Single frame.
Step 2 One click on the playback screen represents playback or adverse playback of one frame.
You can use button in toolbar to stop the playing.

HIKVISION DS-7216HQHI-F1/N Specifications

General

Video input channels	16 channels
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Power consumption (typical)	30 W
Voltage	12 V
Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Analog signal format system	NTSC, PAL
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
