HIKVISION DS-7216HQHI-F1/N User Manual

Digital Video Recorder User Manual
124

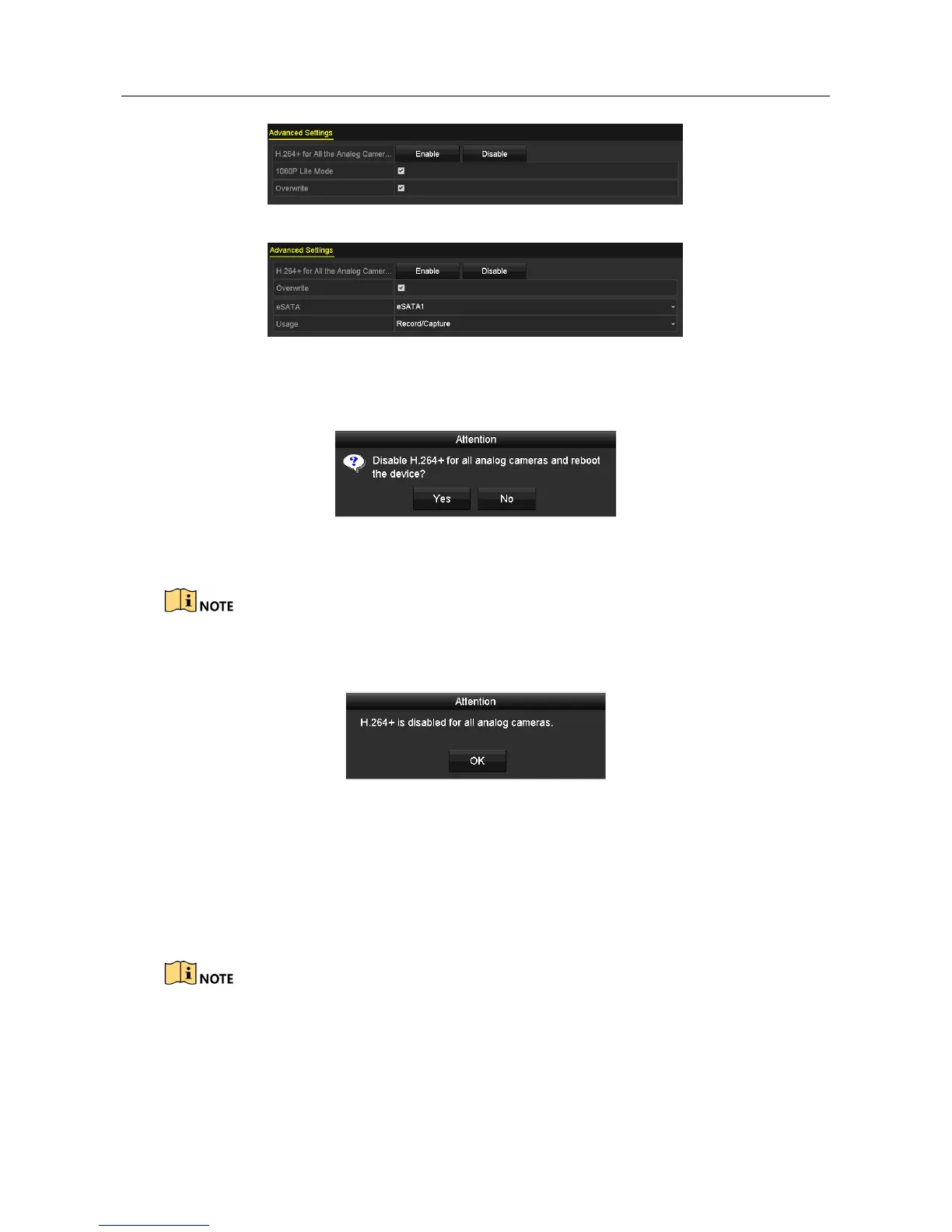

Figure 5-40 Advanced Settings (for HQHI and HGHI-F series DVR)
Figure 5-41 Advanced Settings (for HUHI series DVR)
Step 3 Click Disable to disable H.264+ for all the analog cameras and the following attention box
pops up.
Figure 5-42 Attention Box
Step 4 Click Yes to enable the function and reboot the device to have new settings taken effect.
If H.264+ is already disabled for all the analog cameras, when you click Disable button, the
following attention box pops up to remind you that H.264+ is already disabled for all analog
cameras.
Figure 5-43 Attention Box
5.12 Configuring 1080P Lite
Purpose
When the 1080P Lite Mode is enabled, the encoding resolution at 1080P Lite (real-time) is
supported. If not, up to 1080P (non-real-time) is supported.
This chapter is appplicable to HQHI and HGHI-F series DVR.
 For HQHI series DVR:
Task1: Enabling the 1080P Lite Mode

HIKVISION DS-7216HQHI-F1/N Specifications

General

Video input channels	16 channels
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Power consumption (typical)	30 W
Voltage	12 V
Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Analog signal format system	NTSC, PAL
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
