HIKVISION DS-7216HQHI-F1/N User Manual

Digital Video Recorder User Manual
222

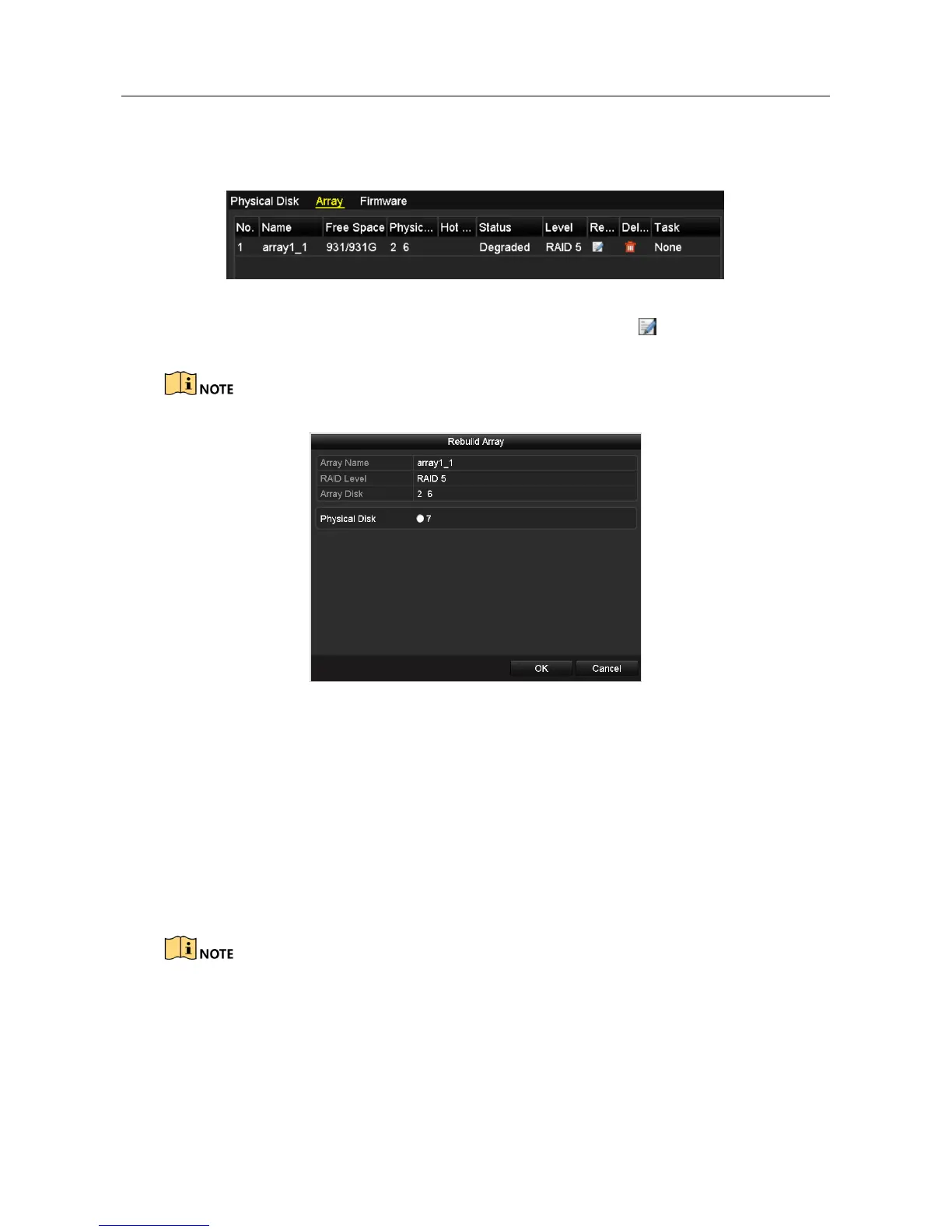

Step 1 Enter the Array Settings interface. The disk 3 is lost.
Menu > HDD > RAID > Array
Figure 13-13 Array Settings Interface
Step 2 Click Array tab to return to the Array Settings interface and click to configure the array
rebuild.
At least one available physical disk should exist for rebuilding the array.
Figure 13-14 Rebuild Array Interface
Step 3 Select the available physical disk and click OK button to confirm to rebuild the array.
Step 4 The “Do not unplug the physical disk when it is under rebuilding” message box pops up.
Click OK button to start rebuilding.
Step 5 You can enter the Array Settings interface to view the rebuilding status.
Step 6 After rebuilding successfully, the array and virtual disk will restore to Functional.
13.3 Deleting Array
Deleting array will cause to delete all the data saved in the disk.
Step 1 Enter the Array Settings interface.
Menu>HDD>RAID>Array

HIKVISION DS-7216HQHI-F1/N Specifications

General

Video input channels	16 channels
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Power consumption (typical)	30 W
Voltage	12 V
Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Analog signal format system	NTSC, PAL
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
