HIKVISION DS-7216HQHI-F1/N User Manual

Digital Video Recorder User Manual
161

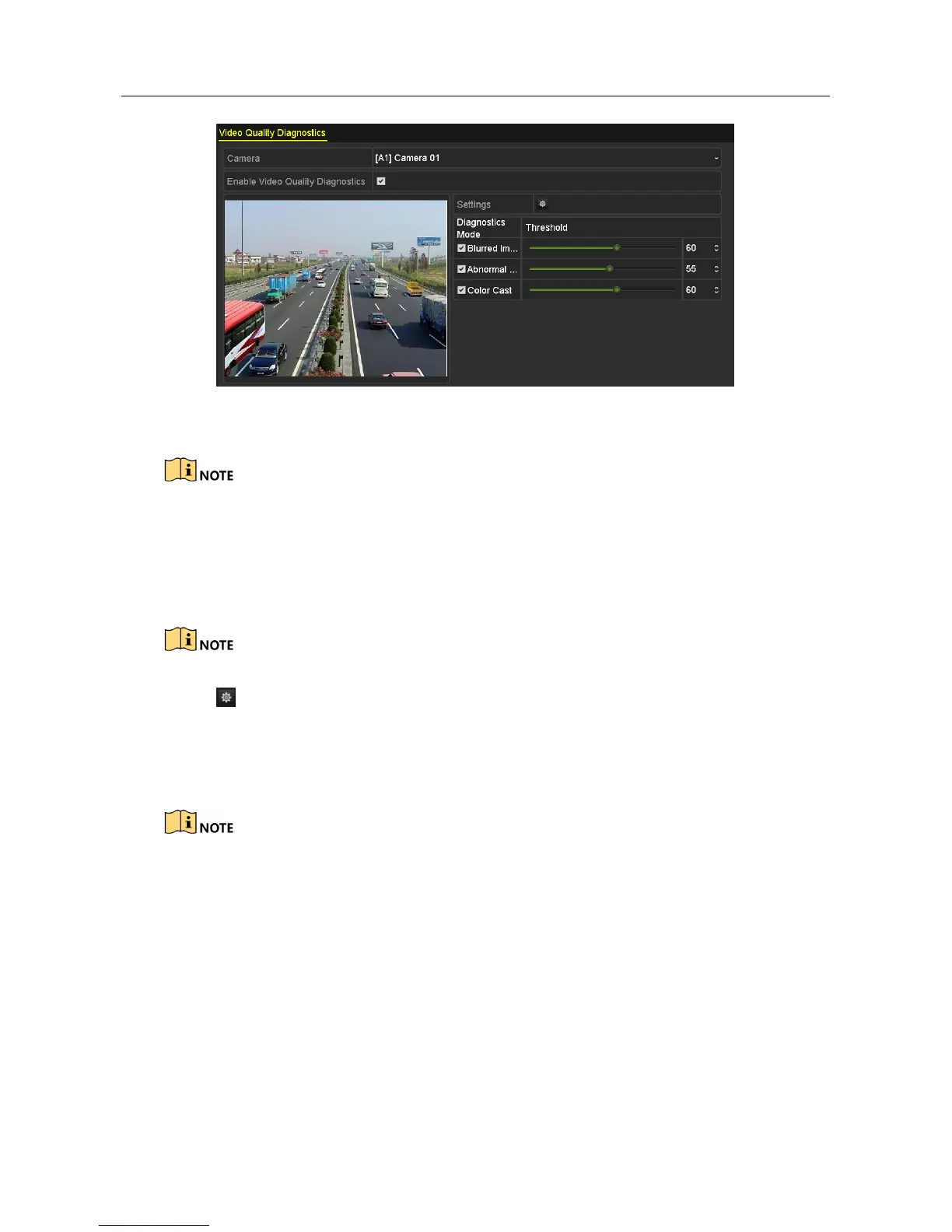

Figure 8-14 Video Quality Diagnostics Interface
Step 2 Check the checkbox of Enable Video Quality Diagnostics.
To enable video quality diagnostics, the function should be supported by the selected camera.
Step 3 Enable and set the threshold of the diagnostic types, there are Blurred Image, Abnormal
Brightness, and Color Cast.
Check the corresponding checkbox of the diagnostic type, and adjust the threshold of it by
dragging the bar.
The higher the threshold you set, the harder the exception will be detected.
Step 4 Click to set handling method of video quality diagnostics. Set arming schedule and
alarm response actions of the channel.
1) Click Arming Schedule tab to set the arming schedule of response action.
2) Choose one day of a week and up to eight time periods can be set within each day.
Time periods shall not be repeated or overlapped.

HIKVISION DS-7216HQHI-F1/N Specifications

General

Video input channels	16 channels
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Power consumption (typical)	30 W
Voltage	12 V
Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Analog signal format system	NTSC, PAL
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
