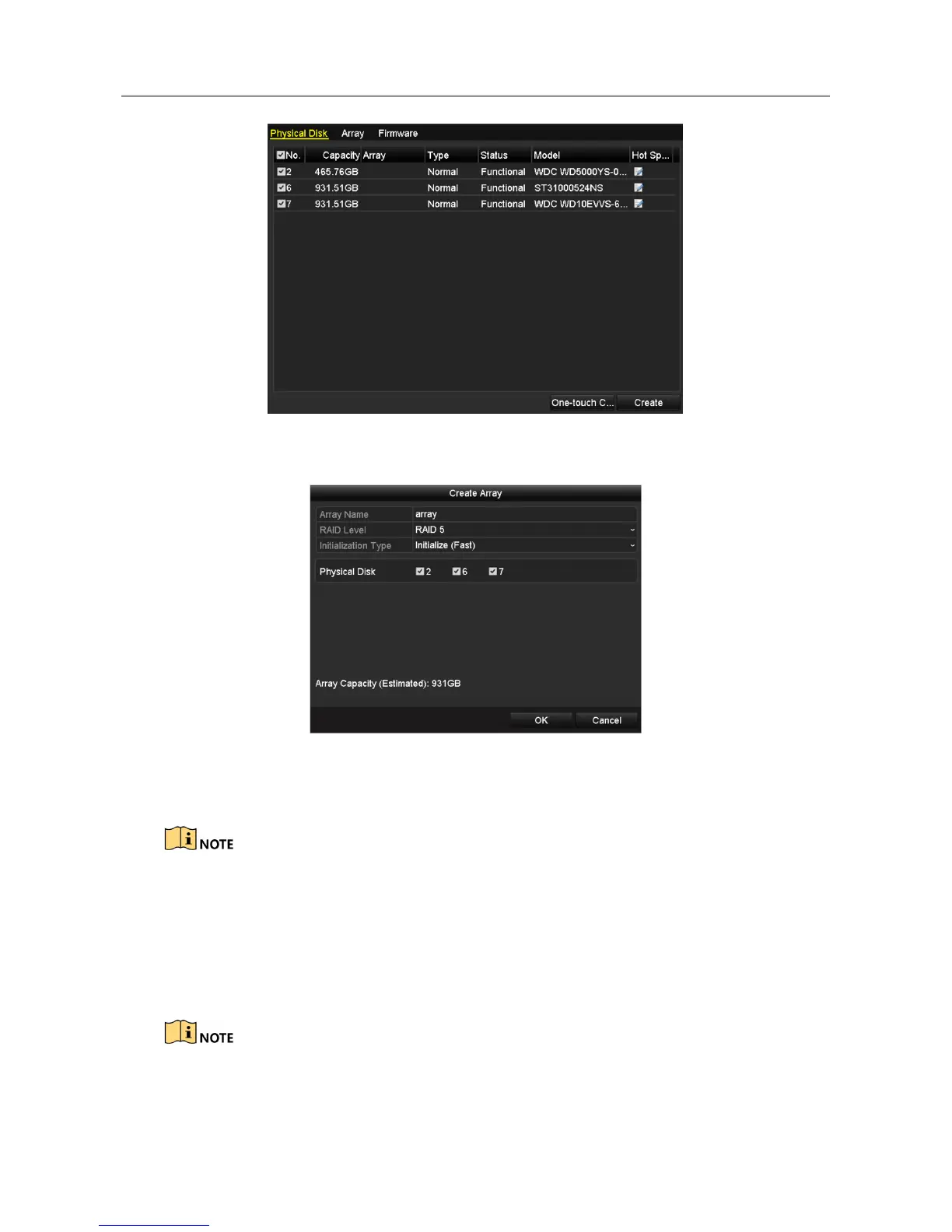

Figure 13-7 Physical Disk Settings Interface
Step 2 Click Creat button to enter the Create Array interface.
Figure 13-8 Create Array Interface
Step 3 Edit the Array Name; set the RAID Level to RAID 0, RAID 1, RAID 5, RAID6 or RAID 10; select
the Physical Disk that you want to configure array.

If you choose RAID 0, at least 2 HDDs must be installed.

If you choose RAID 1, 2 HDDs need to be configured for RAID 1.

If you choose RAID 5, at least 3 HDDs must be installed.

If you choose RAID 6, at least 4 HDDs must be installed.

If you choose RAID 10, the number of HDDs installed should be even in the range of 4 to 16.
Step 4 Click OK button to create array.

HIKVISION DS-7216HQHI-F1/N Specifications

General

Video input channels	16 channels
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Power consumption (typical)	30 W
Voltage	12 V
Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Analog signal format system	NTSC, PAL
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
