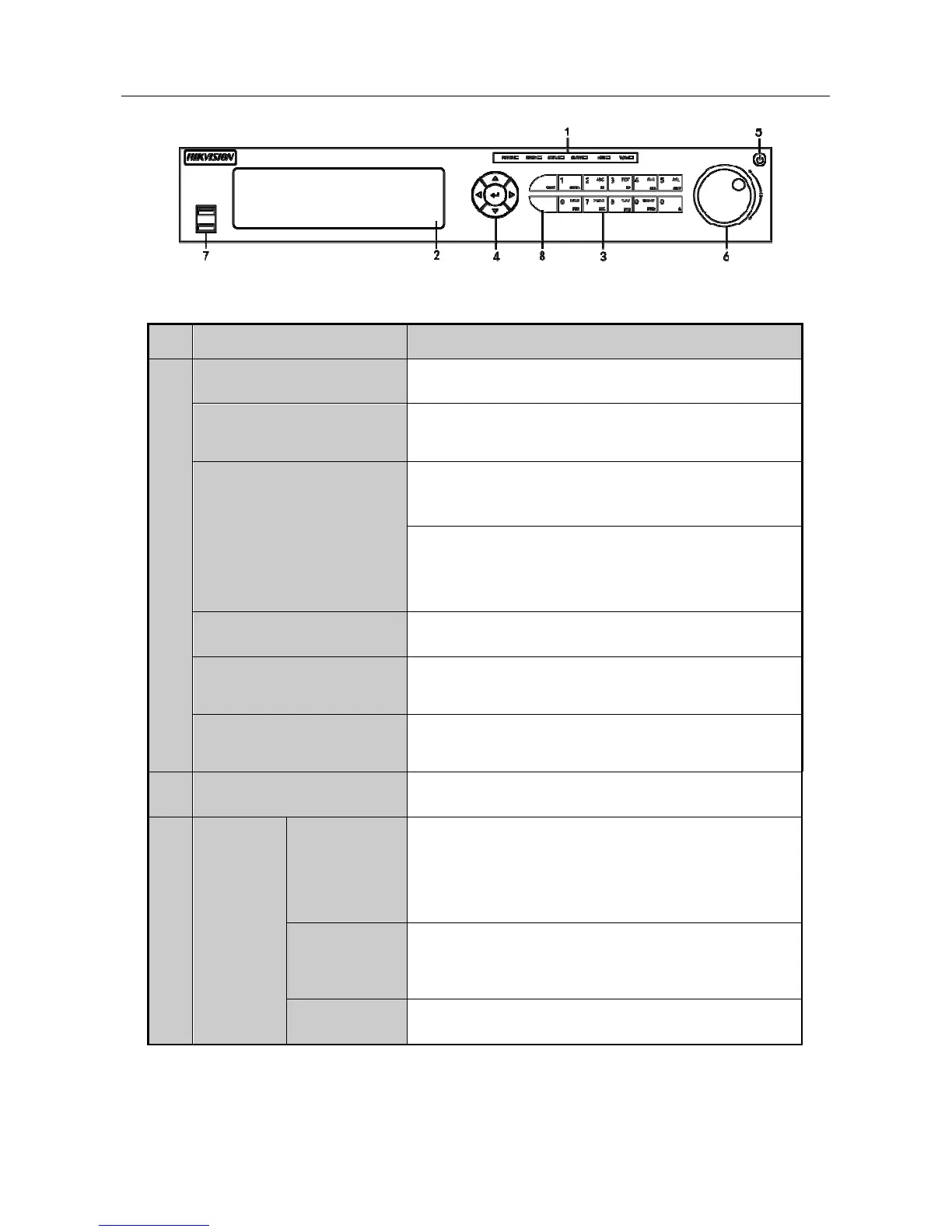

Figure 1-5 Front Panel of DS-7300HQHI-F/N and DS-7300HUHI-F/N
Table 1-4 Description of Front Panel
No. Name Function Description
1
POWER
Turns green when DVR is powered up.
READY
Turns green, indicating that the DVR is functioning
properly.
STATUS
Turns green when device is controlled by an IR
remote.
Turns red when controlled by a keyboard and purple
when IR remote and keyboard is used at the same
time.
ALARM
Turns red when a sensor alarm is detected.
HDD
Flickers in red when data is being read from or
written to HDD.
Tx/Rx
Flickers in green when network connection is
functioning properly.
2 DVD-R/W Slot for DVD-R/W.
3
Composite
Keys
SHIFT
Switches between the numeric or letter input and
functions of the composite keys. (Input letter or
numbers when the light is out; Realize functions
when the light is red.)
1/MENU
Enters numeral “1”;
Accesses the main menu interface.
2/ABC/F1 Enters numeral “2”;

HIKVISION DS-7216HQHI-F1/N Specifications

General

Video input channels	16 channels
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Power consumption (typical)	30 W
Voltage	12 V
Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Analog signal format system	NTSC, PAL
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
