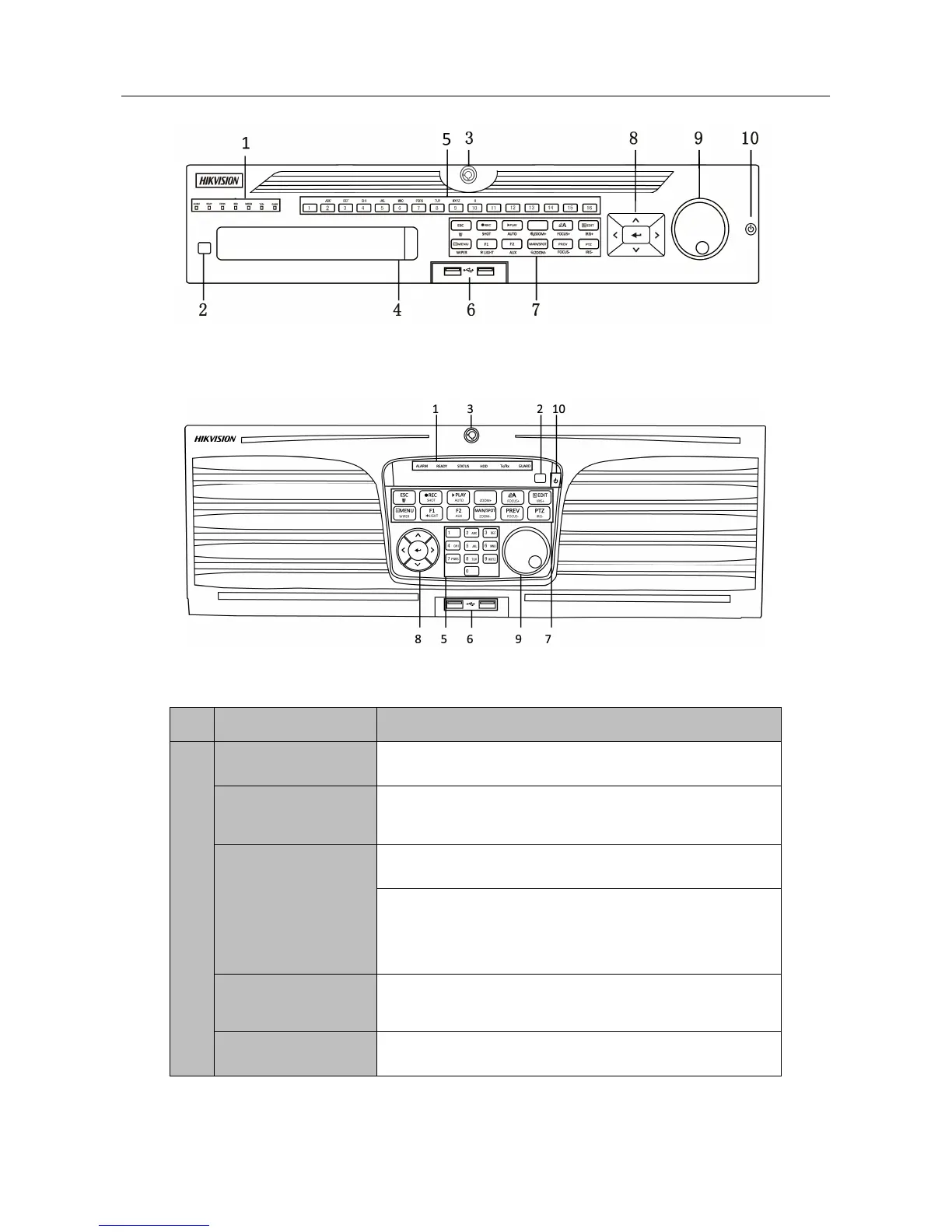

Figure 1-7 Front Panel of DS-9000HUHI-F8/N
Front Panel 8:
Figure 1-8 Front Panel of DS-9000HUHI-F16/N
Table 1-6 Description of Front Panel
No. Name Function Description
1
ALARM
Turns red when a sensor alarm is detected.
READY
Turns blue, indicating that the DVR is functioning
properly.
STATUS
Turns blue when device is controlled by an IR remote.
Turns red when controlled by a keyboard and purple
when IR remote and keyboard is used at the same
time.
HDD
Flickers in red when data is being read from or written
to HDD.
MODEM
Flickers in blue when network connection is

HIKVISION DS-7216HQHI-F1/N Specifications

General

Video input channels	16 channels
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Power consumption (typical)	30 W
Voltage	12 V
Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Analog signal format system	NTSC, PAL
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
