HIKVISION DS-7216HQHI-F1/N User Manual

Digital Video Recorder User Manual
61

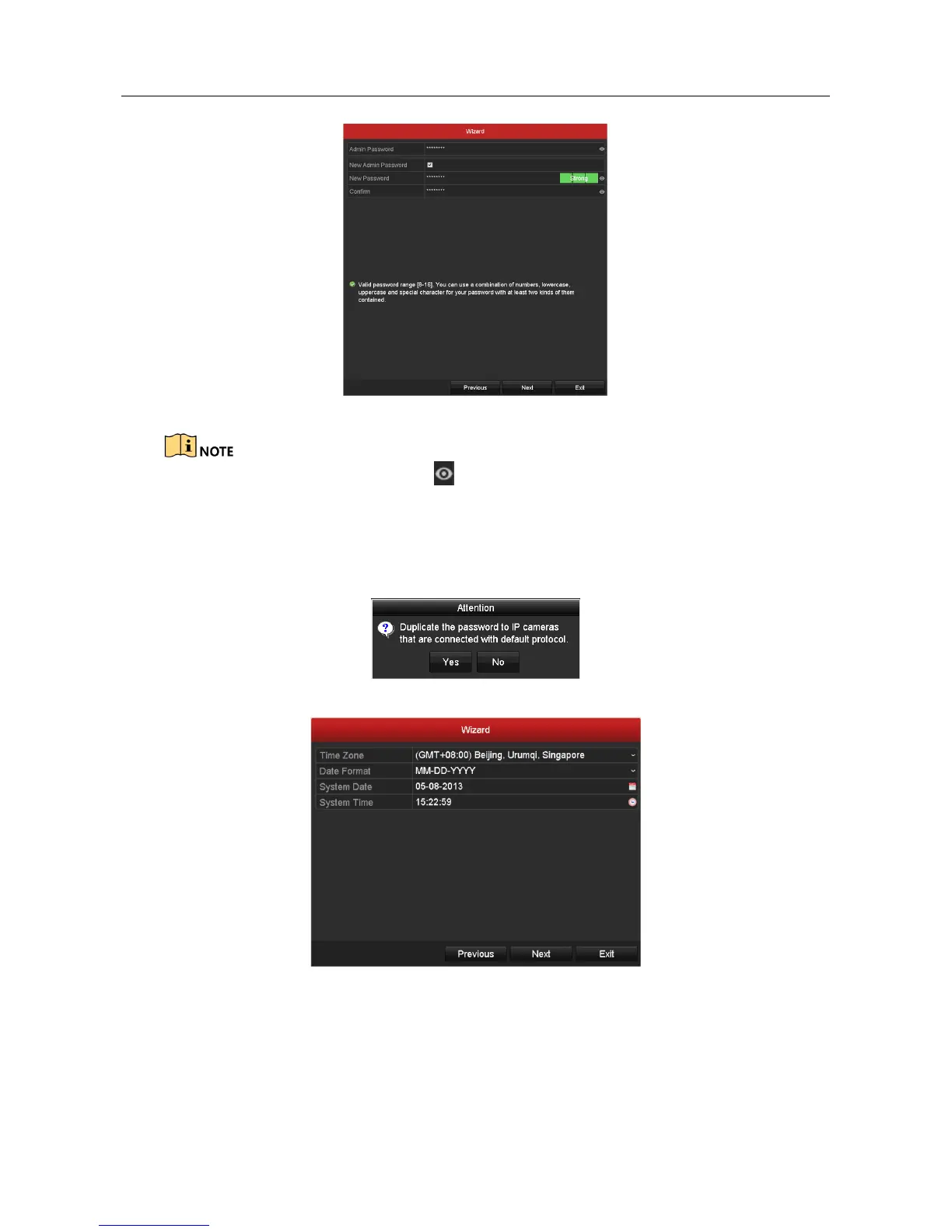

Figure 2-17 Change the Password
Clear-text password is supported. Click the icon and you can see the clear text of the password.
Click the icon again and the content of the password restores invisible.
Step 3 Click Next button and the Attention box pops up as shown below. Click Yes to duplicate the
password of the device to IP cameras that are connected with default protocol. Or click No
to enter the Date and Time Settings interface.
Figure 2-18 Duplicate the Password
Figure 2-19 Date and Time Settings
Step 4 After the time settings, click Next button to enter the General Network Setup Wizard
interface as shown below.

HIKVISION DS-7216HQHI-F1/N Specifications

General

Video input channels	16 channels
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Power consumption (typical)	30 W
Voltage	12 V
Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Analog signal format system	NTSC, PAL
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
