Digital Video Recorder User Manual
88
Step 2 Check the checkboxes to select the channels for diagnostics.
Step 3 Click the button Diagnose, and the results will be displayed on a list. You can view the video
status and diagnostics time of the selected channels.

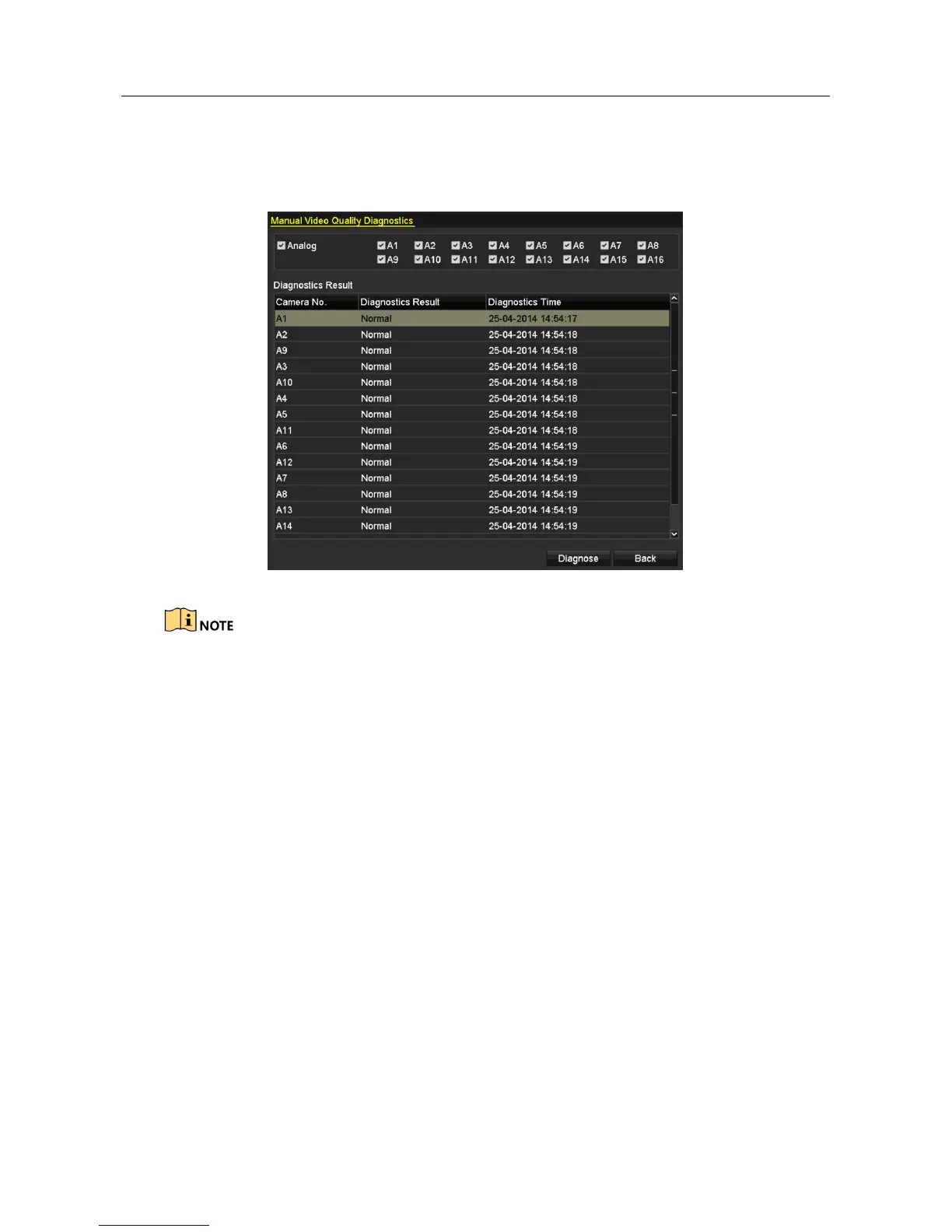

Figure 3-14 Diagnostics Result
Connect the camera to the device for the video quality diagnostics.
Three exception types can be diagnosed: Blurred Image, Abnormal Brightness and Color
Cast.

Table of Contents

Other manuals for HIKVISION DS-7216HQHI-F1/N

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7216HQHI-F1/N and is the answer not in the manual?

HIKVISION DS-7216HQHI-F1/N Specifications

General IconGeneral
Video input channels16 channels
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Power consumption (typical)30 W
Voltage12 V
Product colorBlack
Audio output channels1.0 channels
Video compression formatsH.264, H.264+
Analog signal format systemNTSC, PAL
HDD interfaceSerial ATA
Maximum HDD capacity6000 GB
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Weight2000 g
Dimensions (WxDxH)315 x 242 x 45 mm
