Hikvision USA, Inc. – Series DS-7300 User Manual
Configuring Live Feed Displays
Live Feed displays can be customized to your own needs. These settings can be accessed by
entering the Display Configuration menu, shown in Figure 19.

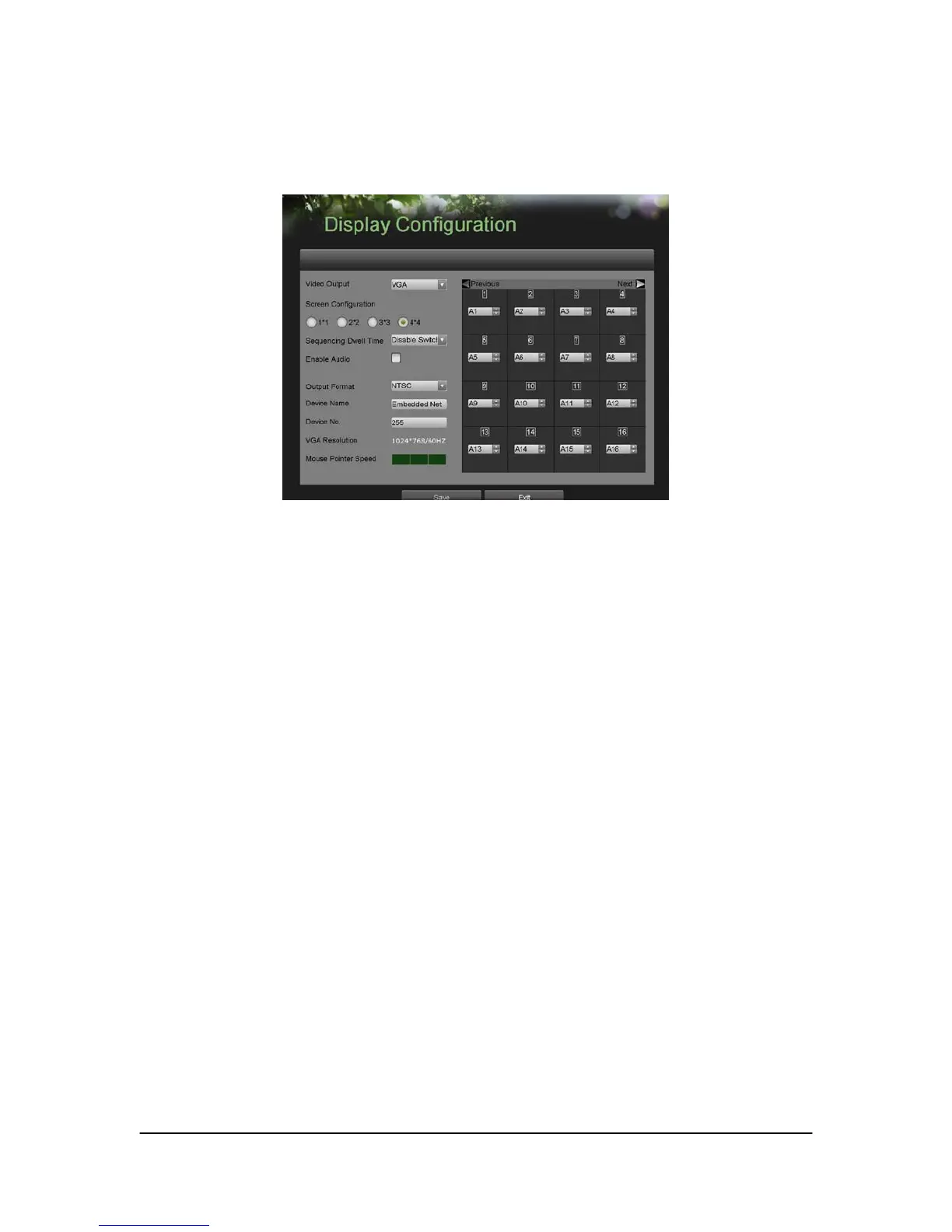

Figure 19. Display Configuration Menu
To customize display settings:
1. Enter the Display Configuration menu by going to Main Menu > System Configuration > Display
Configuration.
2. Select the Video Output to configure. You may configure either the VGA (Main VOUT) or Spot
VOUT (Auxiliary VOUT).
3. The settings available to configure for each video output includes:
• Screen Configuration: Screen configuration of each video output. You may select between a 1x1,
2x2 or 4x4 configuration.
• Sequencing Dwell Time: The time in seconds to dwell between switching of channels when Start
Sequence is selected in Live Feed. Selecting Disable Switching will disable switching in Live Feed.
• Enable Audio: Enables/disables audio output for the selected video output.
• Output Format: Designates the video output standard.
• Device Name/No.: Designates the device name and number of the current unit.
• VGA Resolution: Designates the resolution of main VGA display.
• Mouse Pointer Speed: Pointer speed of the mouse, the higher the amount, the faster the mouse
would move.
