HIKVISION DS-7332HQHI-K4 User Manual

Network Video Recorder User Manual
139
 NUCLEUS
1) Click the Custom to configure the NUCLEUS settings.
2) Enter the employee No. shift No. and the terminal No. in the field. The matching
message sent from the POS device will be used as the valid POS data.
The NUCLEUS protocol must be used in the RS-232 connection communication.
Select the connection mode to TCP Reception, UDP Reception, Multicast, RS-232, USB-
to-RS-232 or Sniff, and click Parameters to configure the parameters for each
connection mode.
 TCP Connection
1) When using TCP connection, the port must be set from 1 to 65535, and the port for each
POS machine must be unique.
2) Set the Allowed Remote IP Address of the device sending the POS message.

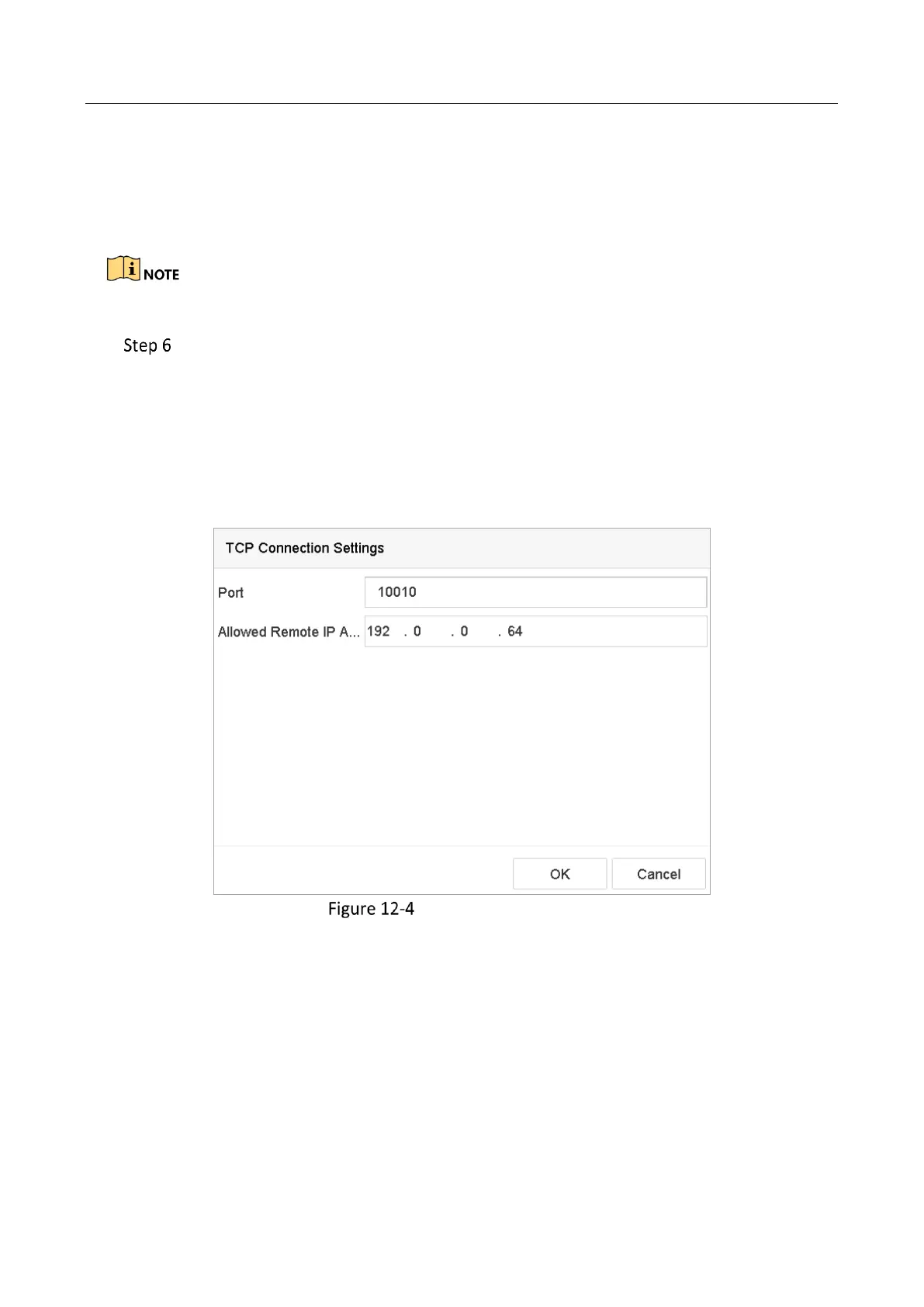

TCP Connection Settings
 UDP Connection
1) When using UDP connection, the port must be set from 1 to 65535, and the port for
each POS machine must be unique.
2) Set the Allowed Remote IP Address of the device sending the POS message.
 USB-to-RS-232 Connection
Configure the port parameters of USB-to-RS-232 convertor, including the serial number of
port, baud rate, data bit, stop bit, parity and flow ctrl.

HIKVISION DS-7332HQHI-K4 Specifications

General

Bit rate	64 Kbit/s
Product color	Black
Remote viewing	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of simultaneously playbacked channels	16 channels
Audio input	5
BNC input ports	32
BNC output ports	1
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	10000 GB
AC input voltage	100 - 240 V
Power supply type	AC
Power consumption (max)	74 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	440 mm
Height	70 mm
Weight	7000 g
