HIKVISION DS-7332HQHI-K4 User Manual

Network Video Recorder User Manual
47
No.
Item
Description
9
Network
Interface
Connector for network.
10
RS-485 and
Alarm Interface
Connector for RS-485 devices. T+ and T- pins connect to R+ and R- pins
of PTZ receiver respectively.
D+, D- pin connects to Ta, Tb pin of controller. For cascading devices,
the first DVR’s D+, D- pin should be connected with the D+, D- pin of
the next DVR.
Connector for alarm input.
Connector for alarm output.
11
eSATA
Connects external SATA HDD, CD/DVD-RW.
12
GND
Ground
13
Power Supply
100 to 240 VAC power supply.
14
Power Switch
Switch for turning on/off the device.
DS-9000HTHI-K8

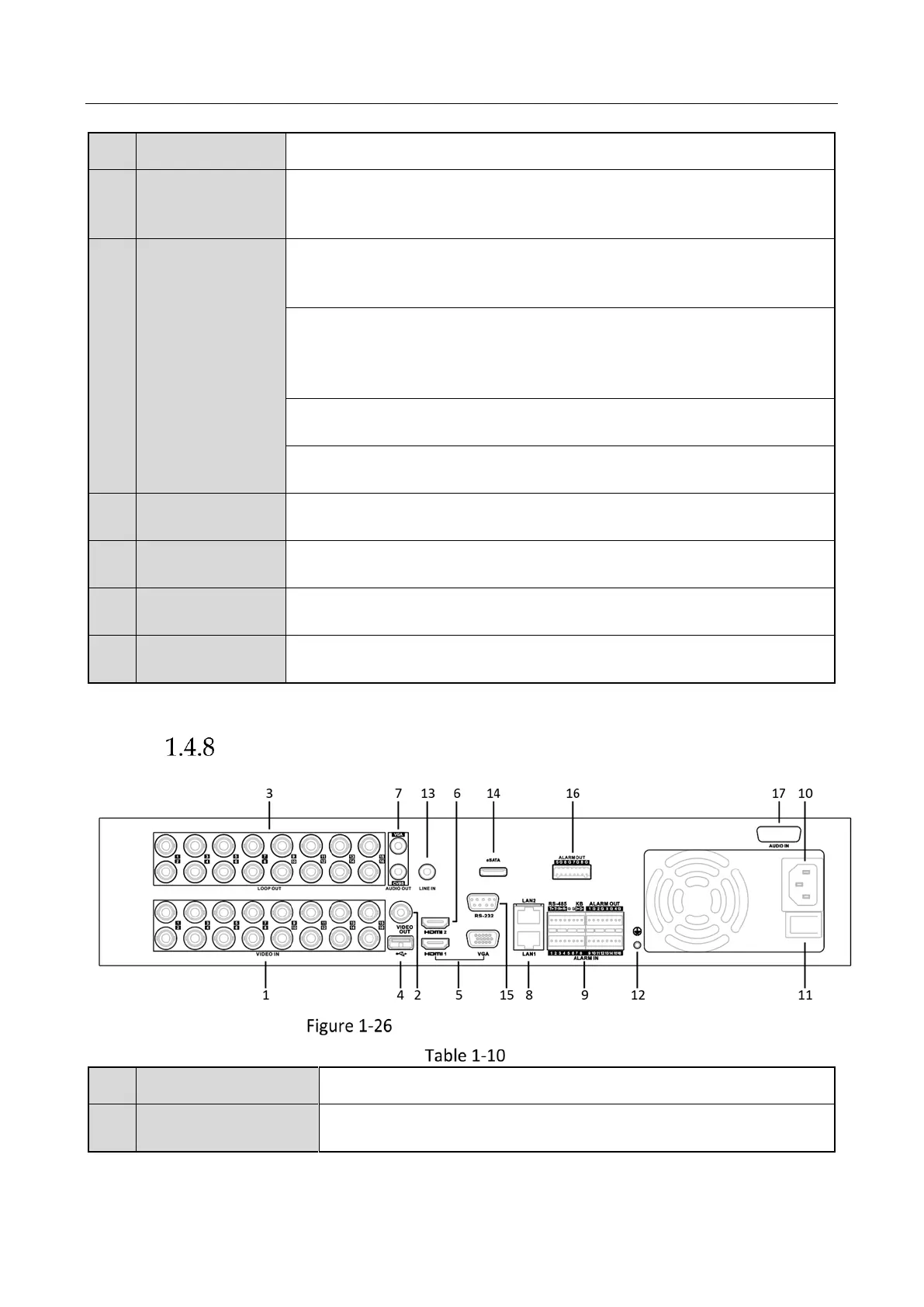

Rear Panel of DS-9000HTHI-K8
Rear Panel Description
No.
Item
Description
1
VIDEO IN
BNC interface for Turbo HD and analog video input.

HIKVISION DS-7332HQHI-K4 Specifications

General

Bit rate	64 Kbit/s
Product color	Black
Remote viewing	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of simultaneously playbacked channels	16 channels
Audio input	5
BNC input ports	32
BNC output ports	1
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	10000 GB
AC input voltage	100 - 240 V
Power supply type	AC
Power consumption (max)	74 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	440 mm
Height	70 mm
Weight	7000 g
