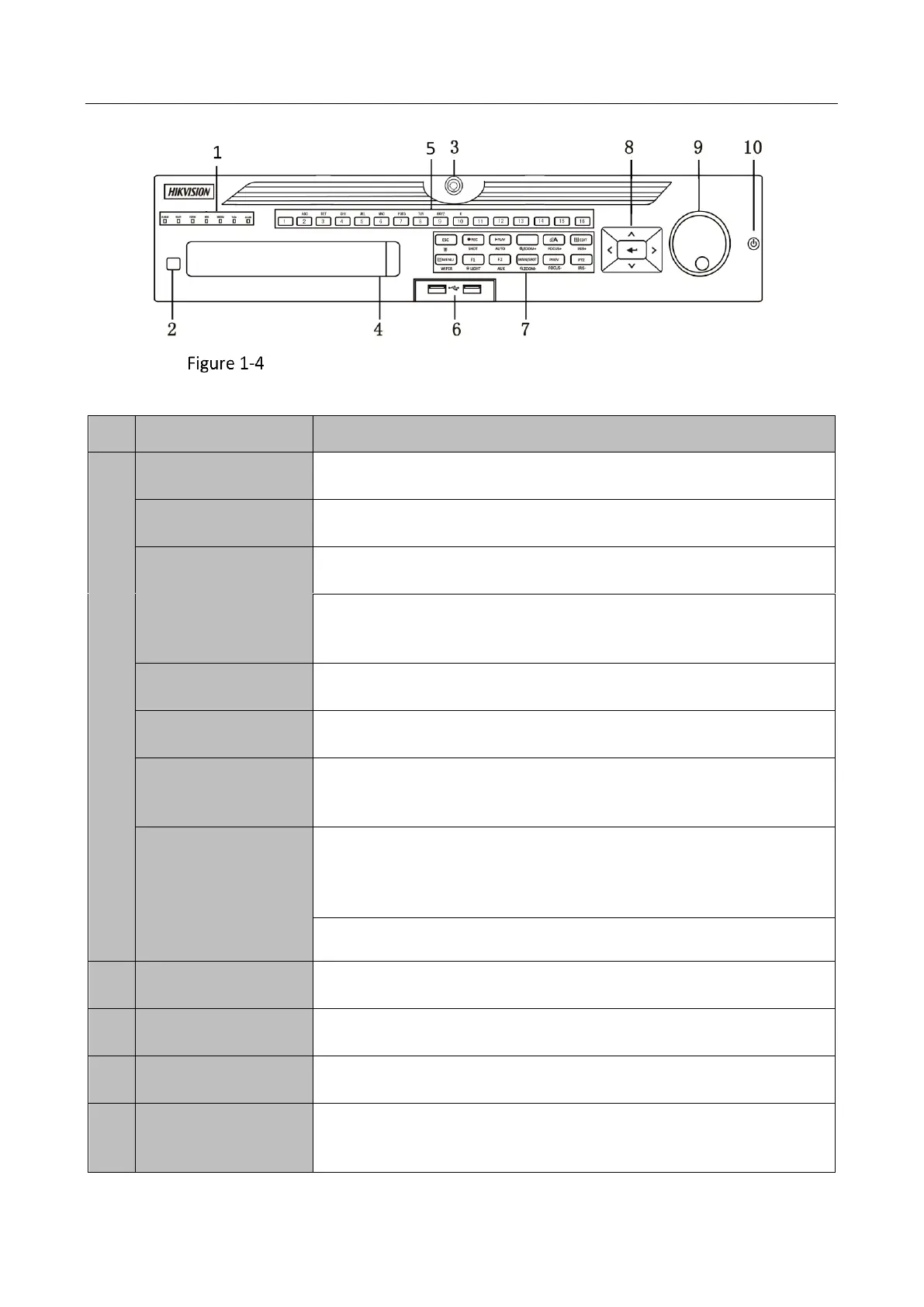

Front Panel of DS-9000HUHI/HTHI-K8 and iDS-9016HUHI-K8/16S
Table 1-3 Front Panel Description
No.
Name
Function Description
1
ALARM
Turns red when a sensor alarm is detected.
READY
Turns blue, indicating that the DVR is functioning properly.
STATUS
Turns blue when device is controlled by an IR remote.
Turns red when controlled by a keyboard and purple when IR
remote and keyboard is used at the same time.
HDD
Flickers in red when data is being read from or written to HDD.
MODEM
Flickers in blue when network connection is functioning properly.
Tx/Rx
Turns blue when the device is in armed status; at this time, an alarm
is enabled when an event is detected.
GUARD
Turns off when the device is unarmed. The arm/disarm status can
be changed by pressing and holding on the ESC button for more
than 3 seconds in live view mode.
Turns red when a sensor alarm is detected.
2
IR Receiver
Receiver for IR remote
3
Front Panel Lock
Lock or unlock the panel by the key.
4
DVD-R/W
Slot for DVD-R/W.
5
Alphanumeric
Buttons
Switches to the corresponding channel in live view or PTZ control
mode.

HIKVISION DS-7332HQHI-K4 Specifications

General

Bit rate	64 Kbit/s
Product color	Black
Remote viewing	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of simultaneously playbacked channels	16 channels
Audio input	5
BNC input ports	32
BNC output ports	1
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	10000 GB
AC input voltage	100 - 240 V
Power supply type	AC
Power consumption (max)	74 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	440 mm
Height	70 mm
Weight	7000 g
