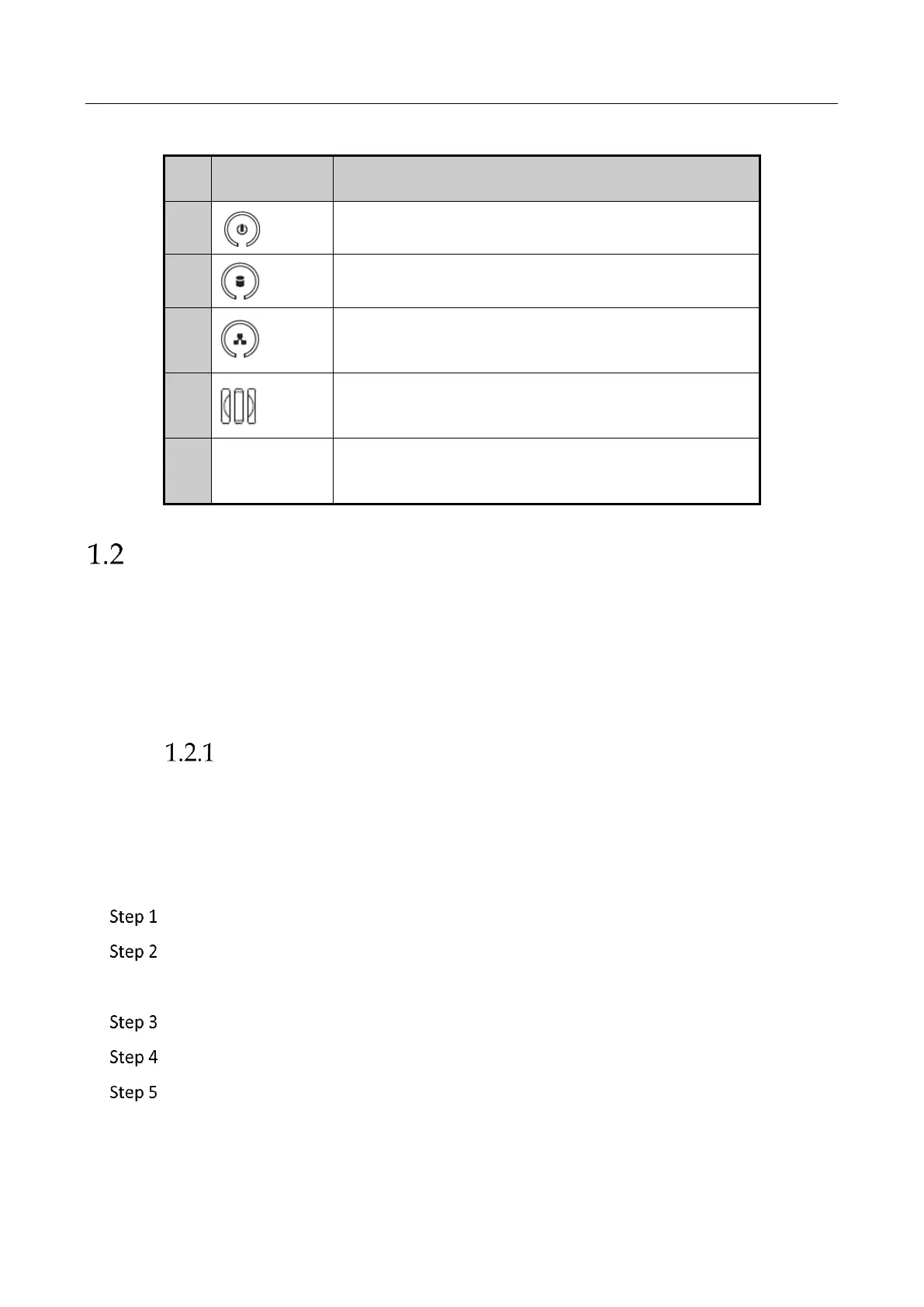

Table 1-4 Front Panel Description
No.
Icon
Description
1
Turns white when DVR is powered up.
2
Turns red when data is being read from or written to
HDD.
3
Flashes white when the network is well-connected.
4
Receiver for IR remote control.
5
USB Interface
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
IR Remote Control Operations
The device may also be controlled with the included IR remote control, shown in Figure 1-6.
Batteries (2×AAA) must be installed before operation.
The IR remote is set at the factory to control the device (using default Device ID# 255) without any
additional steps. Device ID# 255 is the default universal device identification number shared by the
devices. You may also pair an IR Remote to a specific device by changing the Device ID#, as follows:
Pairing (Enabling) the IR Remote to a Specific Device
(optional)
You can pair an IR Remote to a specific device by creating a user-defined Device ID#. This feature is
useful when using multiple IR Remotes and devices.
On the device:
Go to System > General.
Type a number (255 digits maximum) into Device No.
On the IR Remote:
Press DEV.
Use the Number buttons to enter the Device ID# that was entered into the device.
Press Enter to accept the new Device ID#.

HIKVISION DS-7332HQHI-K4 Specifications

General

Bit rate	64 Kbit/s
Product color	Black
Remote viewing	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of simultaneously playbacked channels	16 channels
Audio input	5
BNC input ports	32
BNC output ports	1
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	10000 GB
AC input voltage	100 - 240 V
Power supply type	AC
Power consumption (max)	74 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	440 mm
Height	70 mm
Weight	7000 g
