HIKVISION DS-7608NI-E1 User Manual

Network Video Recorder User Manual
35

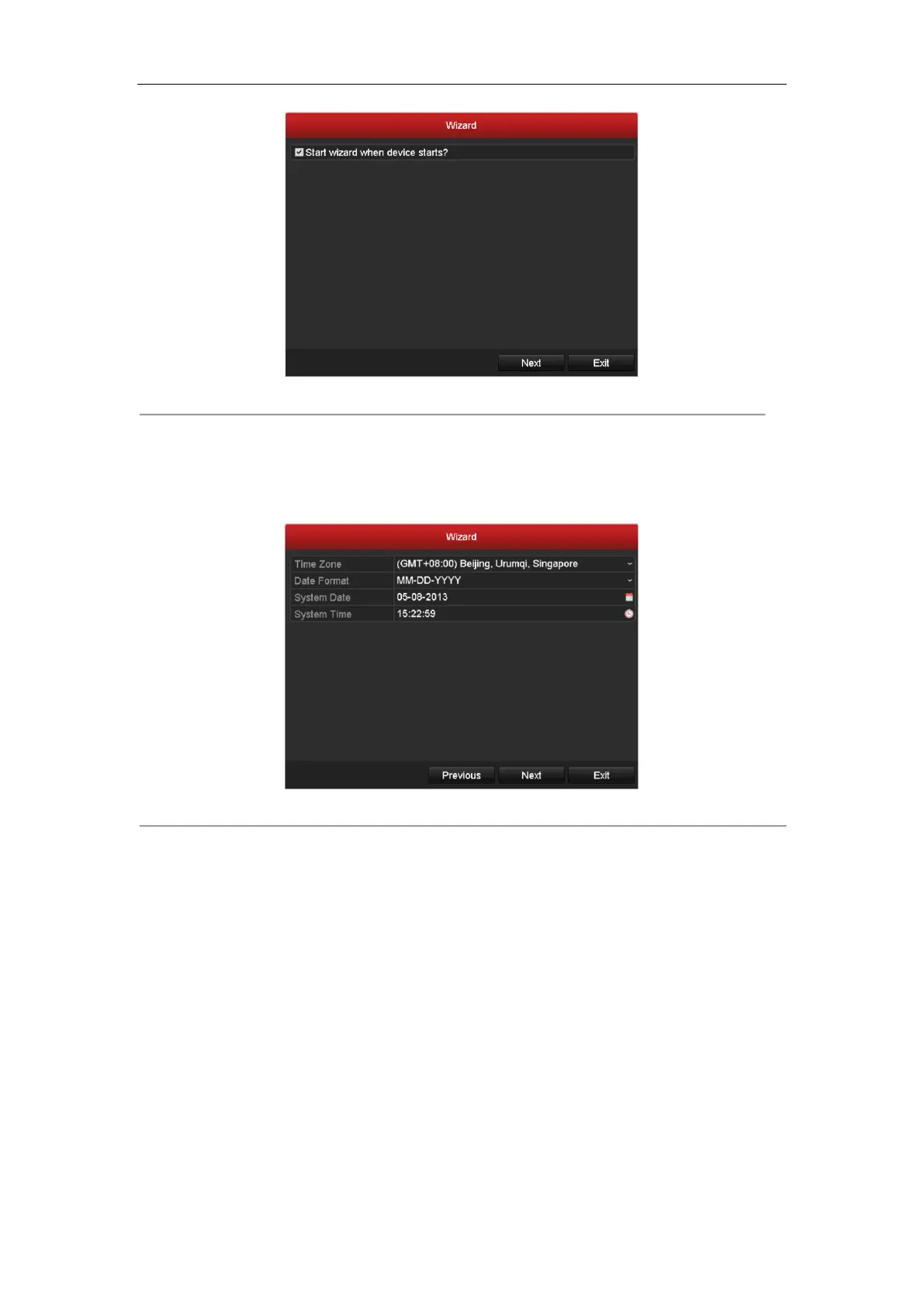

Figure 2. 11 Start Wizard Interface
Steps:
1. If you don’t want to use the setup wizard at that moment, click the Exit button. You can also choose to use
the Setup Wizard next time by leaving the “Start wizard when the device starts?” checkbox checked.
2. Click the Next button to enter the Date and Time Settings interface.
Figure 2. 12 Date and Time Settings
3. After the time settings, click Next button which takes you back to the Basic Network Setup Wizard
interface.

HIKVISION DS-7608NI-E1 Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	4
Video input channels	16 channels
HDMI output	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Supported graphics resolutions	1024 × 768, 1280 × 1024, 1920 × 1080
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	4 TB
Number of HDDs installed	0
Output voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	1U

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
