HIKVISION DS-7608NI-E1 User Manual

Network Video Recorder User Manual
49
Menu> Camera> Camera

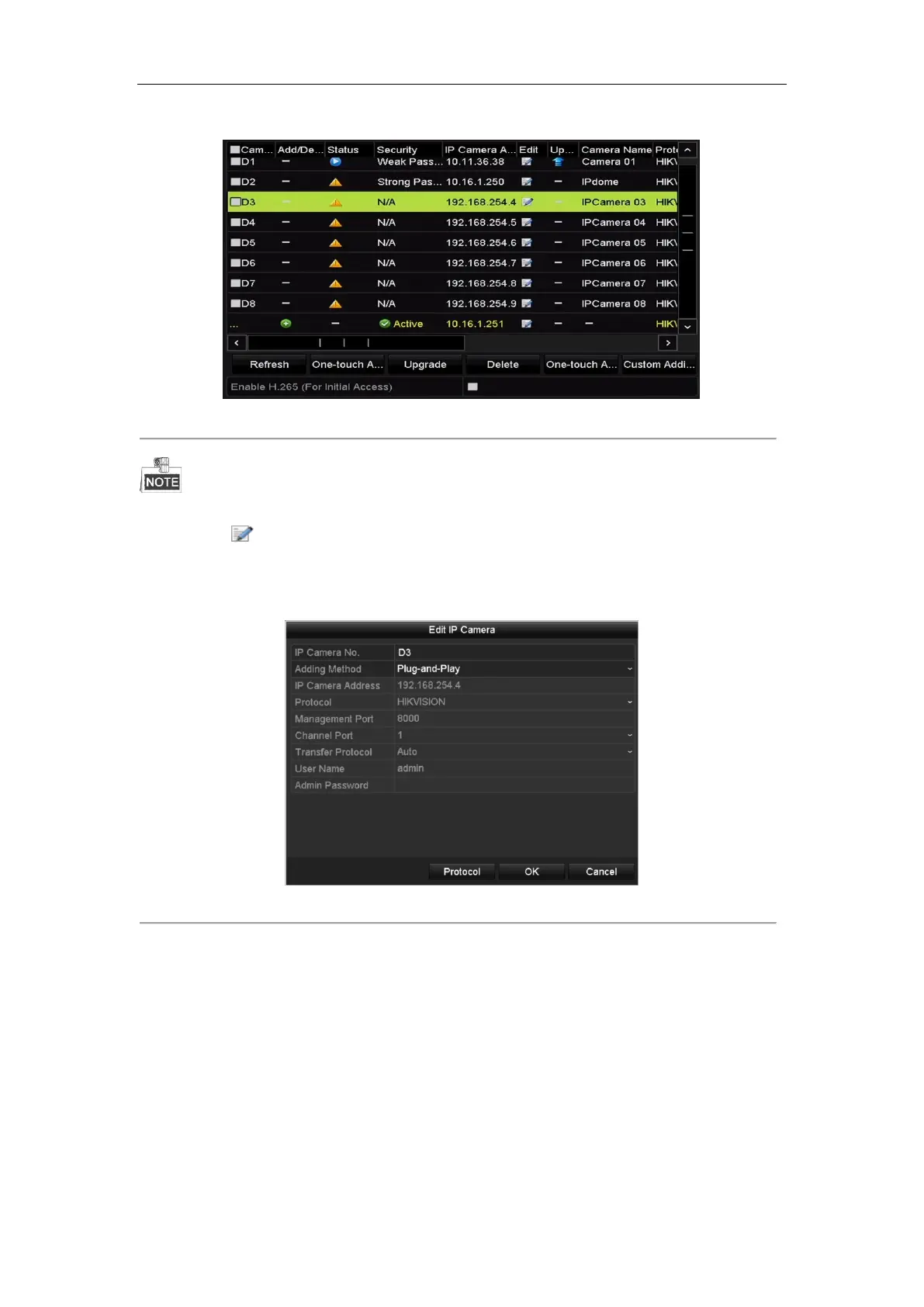

Figure 2. 37 List of Connected Cameras
The cameras connecting to the PoE interface cannot be deleted in this menu.
2. Click the button, and select the Adding Method in the drop-down list.
• Plug-and-Play: It means that the camera is connected to the PoE interface, so in this case, the
parameters of the camera can’t be edited. The IP address of the camera can only be edited in the Network
Configuration interface, see Chapter 11.1 Configuring General Settings for detailed information.
Figure 2. 38 Edit IP Camera Interface - Plug-and-Play
• Manual: You can disable the PoE interface by selecting the manual while the current channel can be
used as a normal channel and the parameters can also be edited.
Input the IP address, the user name and password of administrator manually, and click OK to add the IP
camera.

HIKVISION DS-7608NI-E1 Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	4
Video input channels	16 channels
HDMI output	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Supported graphics resolutions	1024 × 768, 1280 × 1024, 1920 × 1080
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	4 TB
Number of HDDs installed	0
Output voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	1U

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
