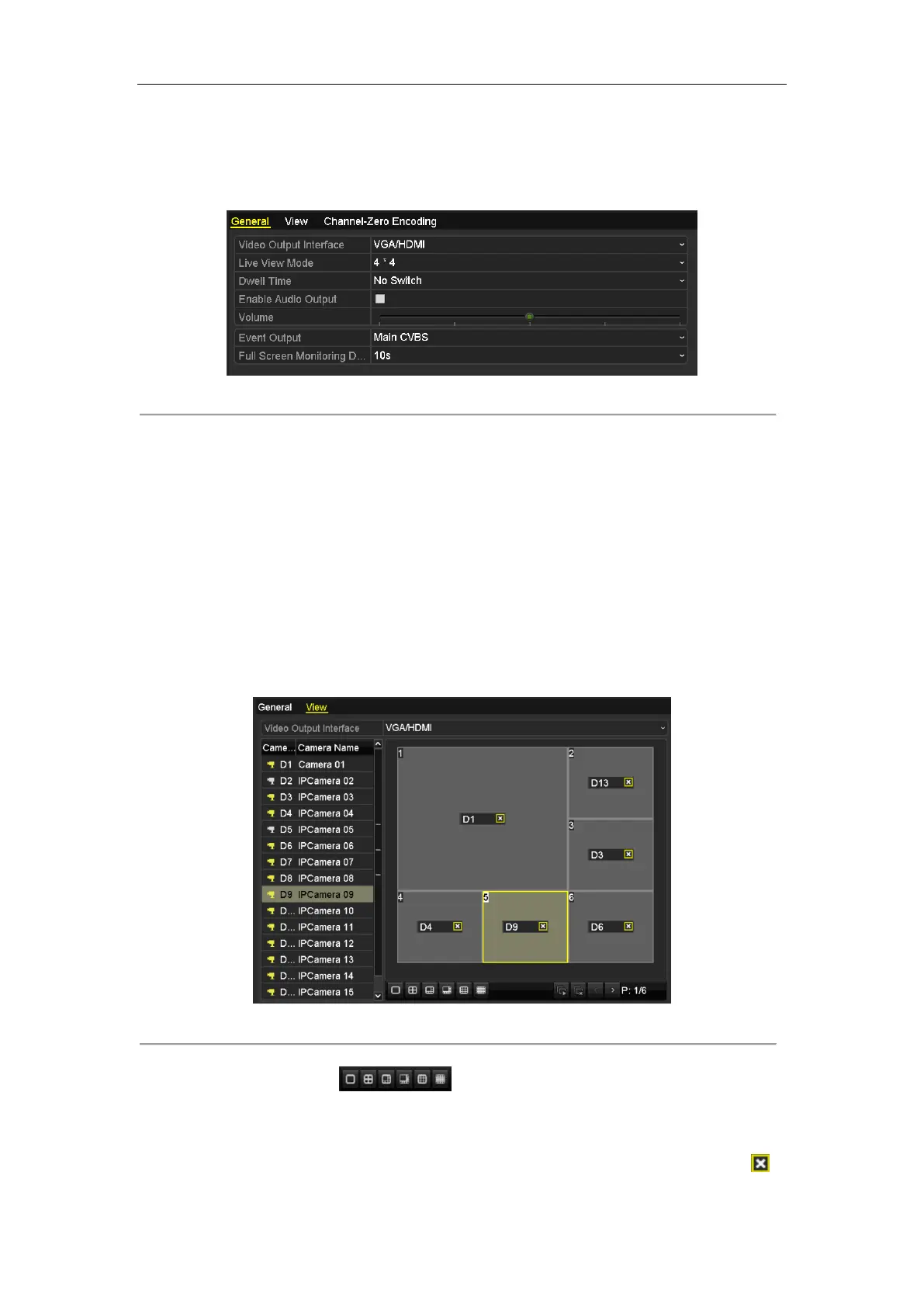

Network Video Recorder User Manual
57
time for screen to be shown, mute or turning on the audio, the screen number for each channel, etc.
Steps:
1. Enter the Live View Settings interface.
Menu > Configuration > Live View
Figure 3. 7 Live View-General
The settings available in this menu include:
Video Output Interface: Designates the output to configure the settings for, and only VGA/ HDMI
TM
is
selectable by default.
Live View Mode: Designates the display mode to be used for Live View.
Dwell Time: The time in seconds to dwell between switching of channels when enabling auto-switch in
Live View.
Enable Audio Output: Enables/disables audio output for the selected video output.
Volume: Adjust the volume of live view, playback and two-way audio for the selected output interface.
Event Output: Designates the output to show event video.
Full Screen Monitoring Dwell Time: The time in seconds to show alarm event screen.
2. Setting Cameras Order
Figure 3. 8 Live View- Camera Order
1) Select a View mode in . Up to 36-screen display is supported for 32-ch NVR.
2) Select the small window, and double-click on the channel number to display the channel on the
window.
If you do not want the camera to be displayed on the live view interface, click the corresponding
