HIKVISION DS-7608NI-I2/8P

Network Video Recorder Quick Start Guide
15
1.2.2 DS-7700NI Series

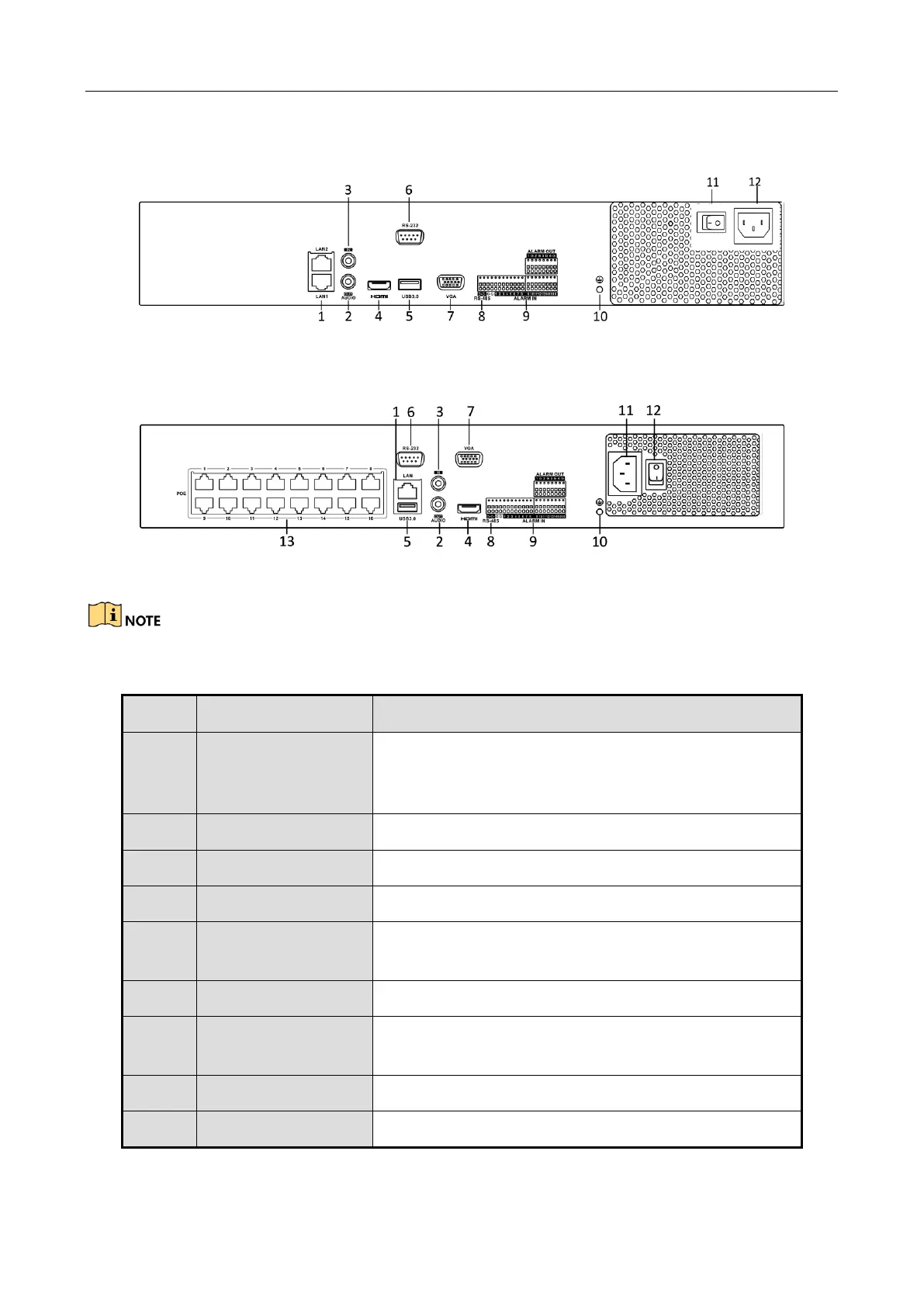

Figure 1-7 DS-7700NI-I4 and DS-7700NI-K4 Series
Figure 1-8 DS-7700NI-I4/16P and DS-7700NI-K4/16P Series
The DS-7708NI-I4/8P and DS-7708NI-K4/8P provides 8 network Interfaces with PoE function.
Table 1-5 Panel Description
No.
Name
Description
1
LAN Interface
1 network interface provided for DS-7700NI-I4/P and
DS-7700NI-K4/P, and 2 network interfaces for
DS-7700NI-I4 and DS-7700NI-K4.
2
AUDIO OUT
RCA connector for audio output.
3
LINE IN
RCA connector for audio input.
4
HDMI
HDMI video output connector.
5
USB 3.0 interface
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
6
RS-232 Interface
Connector for RS-232 devices.
7
VGA
DB9 connector for VGA output. Display local video
output and menu.
8
RS-485 Interface
Half-duplex connector for RS-485 devices.
9
ALARM IN
Connector for alarm input.
