HIKVISION DS-7608NI-K2/8P User Manual

Network Video Recorder User Manual
134

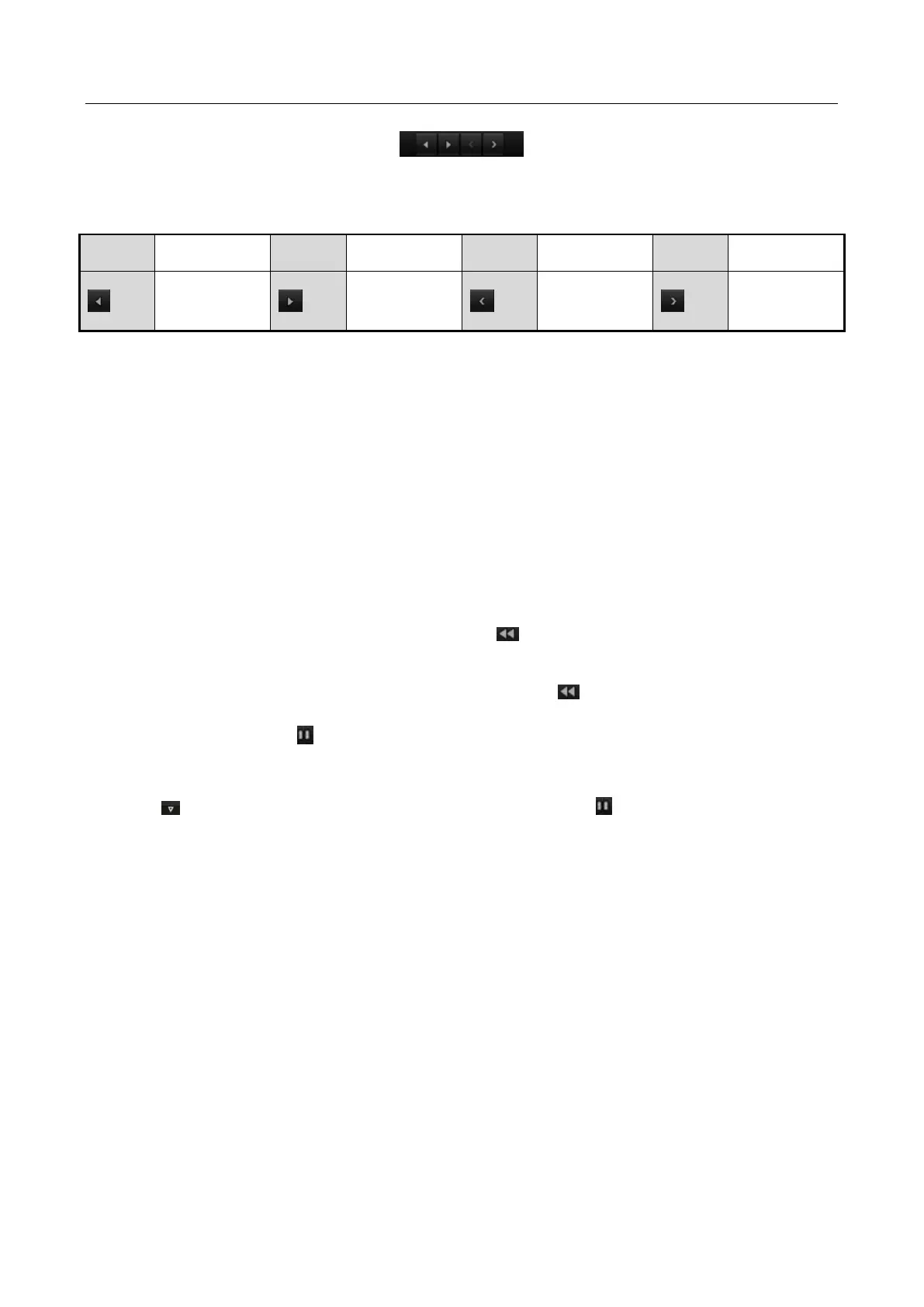

Figure 6-21 Picture Playback Toolbar
Table 6-2 Detailed Explanation of Picture-playback Toolbar
Button
Function
Button
Function
Button
Function
Button
Function
Play reverse
Play
Previous
Next picture
6.2 Auxiliary Functions of Playback
6.2.1 Playing Back Frame by Frame
Purpose:
Play video files frame by frame, in case of checking image details of the video when abnormal
events happen.
• Using a Mouse:
Go to Playback interface.
If you choose playback of the record file: click button until the speed changes to Single frame
and one click on the playback screen represents playback of one frame.
If you choose reverse playback of the record file: click button until the speed changes to
Single frame and one click on the playback screen represents reverse playback of one frame. It is
also feasible to use button in toolbar.
• Using the Front Panel:
Click the button to set the speed to Single frame. One click on button, one click on the
playback screen or Enter button on the front panel represents playback or reverse playback of one
frame.
6.2.2 Thumbnails View
With the thumbnails view on the playback interface, you can conveniently locate the required
video files on the time bar.
Step 1 Enter the playback interface and start to play the video files.
Step 2 Move the mouse to the time bar to get the preview thumbnails of the video files. Select and
double click on a required thumbnail to enter the full-screen playback.

HIKVISION DS-7608NI-K2/8P Specifications

General

Input bandwidth	80 Mbit/s
Output bandwidth	160 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	4
Video input channels	8 channels
Alarm output channels	1
Supported resolutions	3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
HDMI output	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Power over Ethernet (PoE) ports quantity	8
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Number of HDDs installed	0
Number of HDDs supported	2
AC input voltage	100 - 240 V
Power consumption (typical)	15 W
Total Power over Ethernet (PoE) budget	120 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	1U
Wi-Fi	No

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
