HIKVISION DS-7608NI-K2/8P User Manual

Network Video Recorder User Manual
146

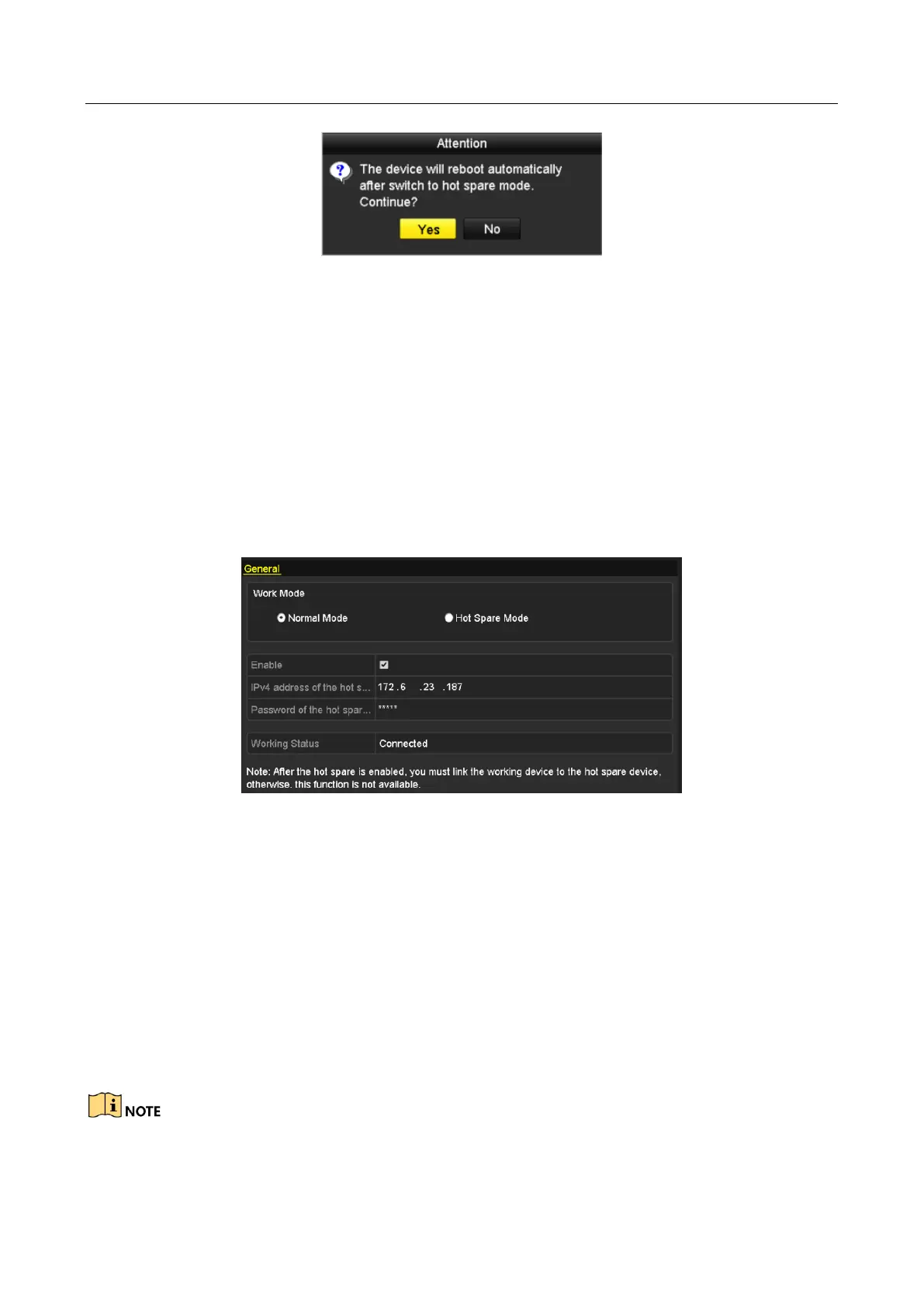

Figure 7-14 Reboot Attention
Step 4 Click the Yes button in the pop-up attention box.
7.3.3 Setting Working Device
Step 1 Enter the Hot Spare settings interface.
Step 2 Menu > Configuration > Hot Spare
Step 3 Set the Work Mode as Normal Mode (default).
Step 4 Check the checkbox of Enable to enable the hot spare function.
Step 5 Enter the IP address and admin password of hot spare device.
Figure 7-15 Setting Working Mode for Working device
Step 6 Click the Apply button to save the settings.
7.3.4 Managing Hot Spare System
Step 1 Enter the Hot Spare Settings interface of the hot spare device.
Menu > Configuration > Hot Spare
The connected working device is displayed on the device list.
Step 2 Check the checkbox to select the working device from the device list, and click the Add
button to link the working device to the hot spare device.
A hot spare device can connect up to 32 working devices.

HIKVISION DS-7608NI-K2/8P Specifications

General

Input bandwidth	80 Mbit/s
Output bandwidth	160 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	4
Video input channels	8 channels
Alarm output channels	1
Supported resolutions	3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
HDMI output	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Power over Ethernet (PoE) ports quantity	8
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Number of HDDs installed	0
Number of HDDs supported	2
AC input voltage	100 - 240 V
Power consumption (typical)	15 W
Total Power over Ethernet (PoE) budget	120 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	1U
Wi-Fi	No

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
