HIKVISION DS-7608NI-K2/8P User Manual

Network Video Recorder User Manual
248
Chapter 16 NVR Management and Maintenance
16.1 Viewing System Information
Step 1 Enter the System Information interface.
Menu >Maintenance>System Info
Step 2 You can click the Device Info, Camera, Record, Alarm, Network and HDD tabs to view the
system information of the device.
XXXXXXXXXXX
XXXXXXXXXXXXXXXXX
XXXXXXXXXXX

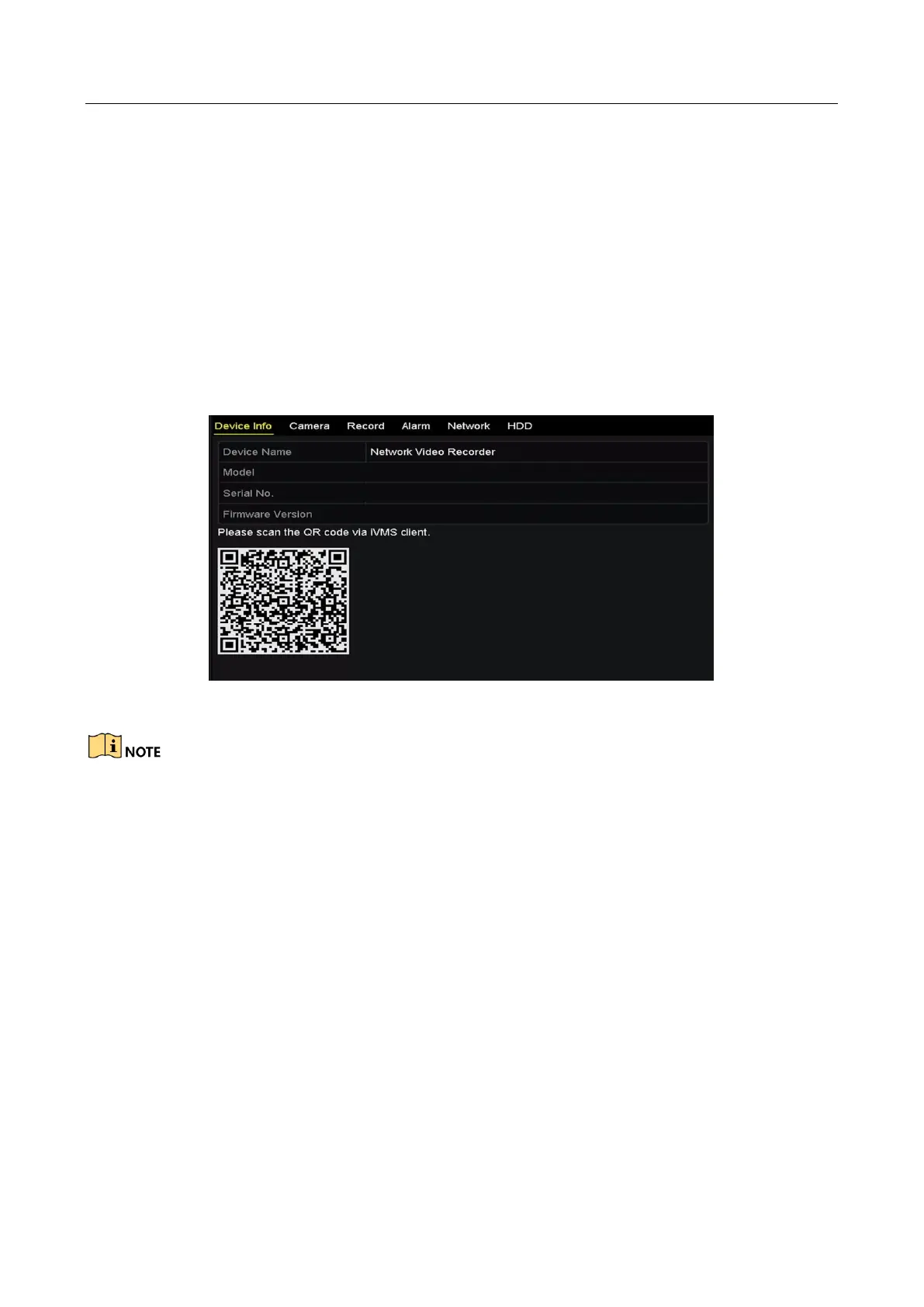

Figure 16-1 Device Information Interface
You can add the device to your mobile client software (iVMS-4500) via scanning the QR Code.

HIKVISION DS-7608NI-K2/8P Specifications

General

Input bandwidth	80 Mbit/s
Output bandwidth	160 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	4
Video input channels	8 channels
Alarm output channels	1
Supported resolutions	3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
HDMI output	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Power over Ethernet (PoE) ports quantity	8
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Number of HDDs installed	0
Number of HDDs supported	2
AC input voltage	100 - 240 V
Power consumption (typical)	15 W
Total Power over Ethernet (PoE) budget	120 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	1U
Wi-Fi	No

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
