HIKVISION DS-7608NI-K2/8P User Manual

Network Video Recorder User Manual
94

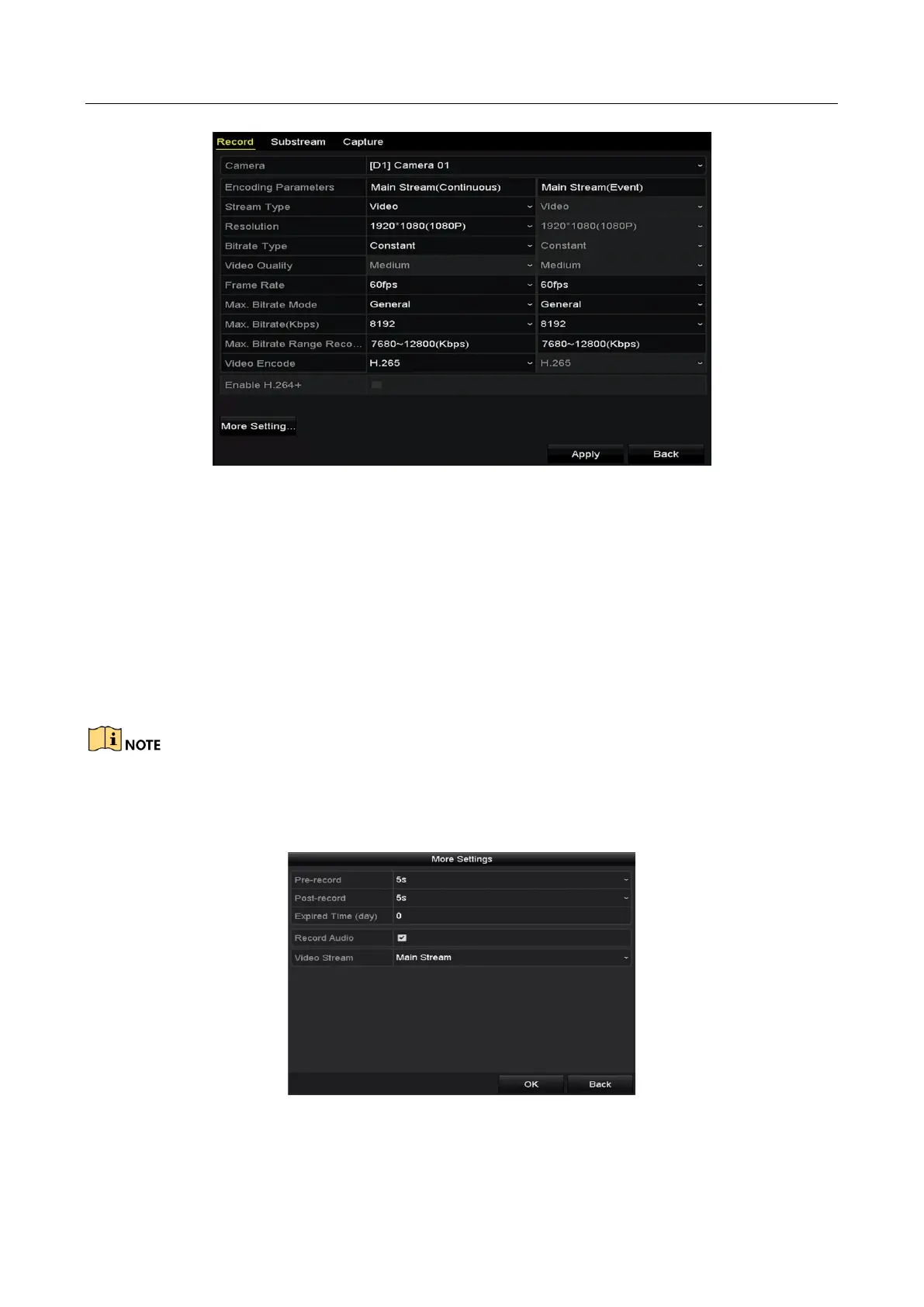

Figure 5-3 Recording Parameters
Step 2 Parameters Setting for Recording
1) Select Record tab page to configure. You can configure the stream type, the resolution,
and other parameters on your demand.
Video Encode: select the video encoding to H.265 or H.264.
Enable H.264+ Mode: check the checkbox to enable. Once enabled, the Max. Bitrate
Mode, Max. Bitrate(Kbps) and Max. Bitrate Range Recommend are not configurable.
Enabling it helps to ensure the high video quality with a lowered bitrate.
The H.265 and H.264+ should be supported by the connected IP camera.
2) Click the More Settings button to set the advanced parameters for recording and then
click OK button to finish editing.
Figure 5-4 More Settings

HIKVISION DS-7608NI-K2/8P Specifications

General

Input bandwidth	80 Mbit/s
Output bandwidth	160 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	4
Video input channels	8 channels
Alarm output channels	1
Supported resolutions	3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
HDMI output	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Power over Ethernet (PoE) ports quantity	8
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Number of HDDs installed	0
Number of HDDs supported	2
AC input voltage	100 - 240 V
Power consumption (typical)	15 W
Total Power over Ethernet (PoE) budget	120 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	1U
Wi-Fi	No

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
