HIKVISION DS-7608NI-Q2/8P User Manual

Network Video Recorder User Manual
39

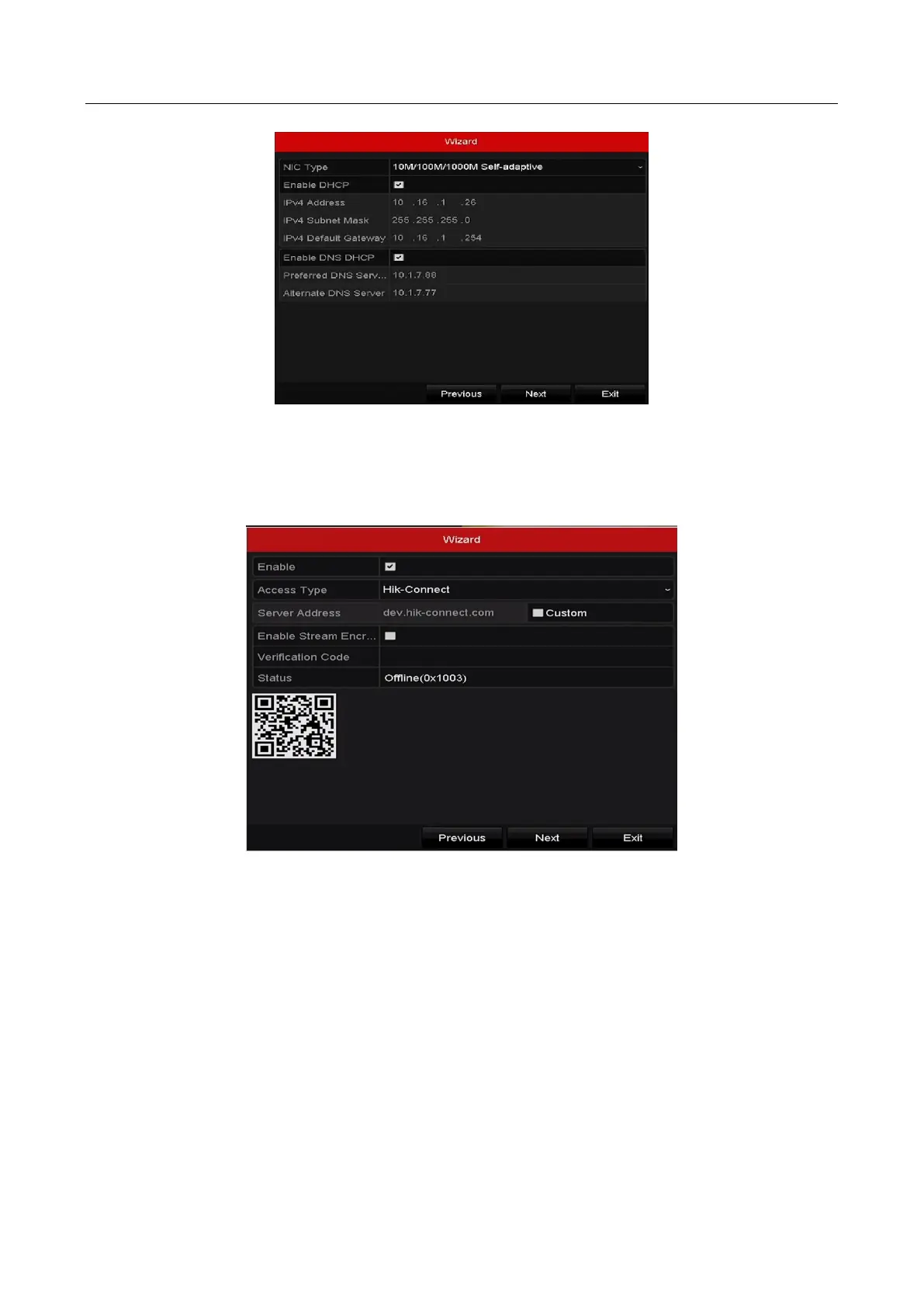

Figure 2-17 Network Settings
Step 4 Click Next button after you configured the basic network parameters. Enter the Hik-Connect
interface to configure the parameters. Please refer to Chapter 11.2.1 Configuring
Hik-Connect for detailed instructions.
Figure 2-18 Hik-Connect Settings
Step 5 Click Next button after you configured the basic network parameters. Then you will enter
the Advanced Network Parameter interface. You can enable UPnP, DDNS and set other
ports according to your need.

HIKVISION DS-7608NI-Q2/8P Specifications

General

DHCP client	Yes
Input bandwidth	80 Mbit/s
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	1
Video input channels	8 channels
Supported resolutions	1024 x 768, 1280 × 720, 1280 × 1024, 1920 × 1080, 1600 × 1200, 3840 × 2160
Video recording modes	720p, 1080p
Wi-Fi	No
HDD capacity	2000 GB
HDD interface	Serial ATA
Maximum storage capacity	16 TB
Number of HDDs supported	2
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Power over Ethernet (PoE) ports quantity	8
Product color	Black
Rack capacity	1U
LED indicators	LAN, Power, Status
AC input voltage	100 - 240 V
Power consumption (typical)	15 W
Total Power over Ethernet (PoE) budget	80 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
