Network Video Recorder User Manual
86
5.3 Configuring Motion Detection Recording
Purpose:
Follow the steps to set the motion detection. In the live view mode, once a motion detection event
takes place, the NVR can analyze it and take alarm response actions. Enabling motion detection
function can trigger certain channels to start recording, or trigger full screen monitoring, audio
warning, notify the surveillance center and so on. In this chapter, you can follow the steps to
schedule a record which triggered by the detected motion.
Step 1 Enter the Motion Detection interface.
Menu>Camera>Motion

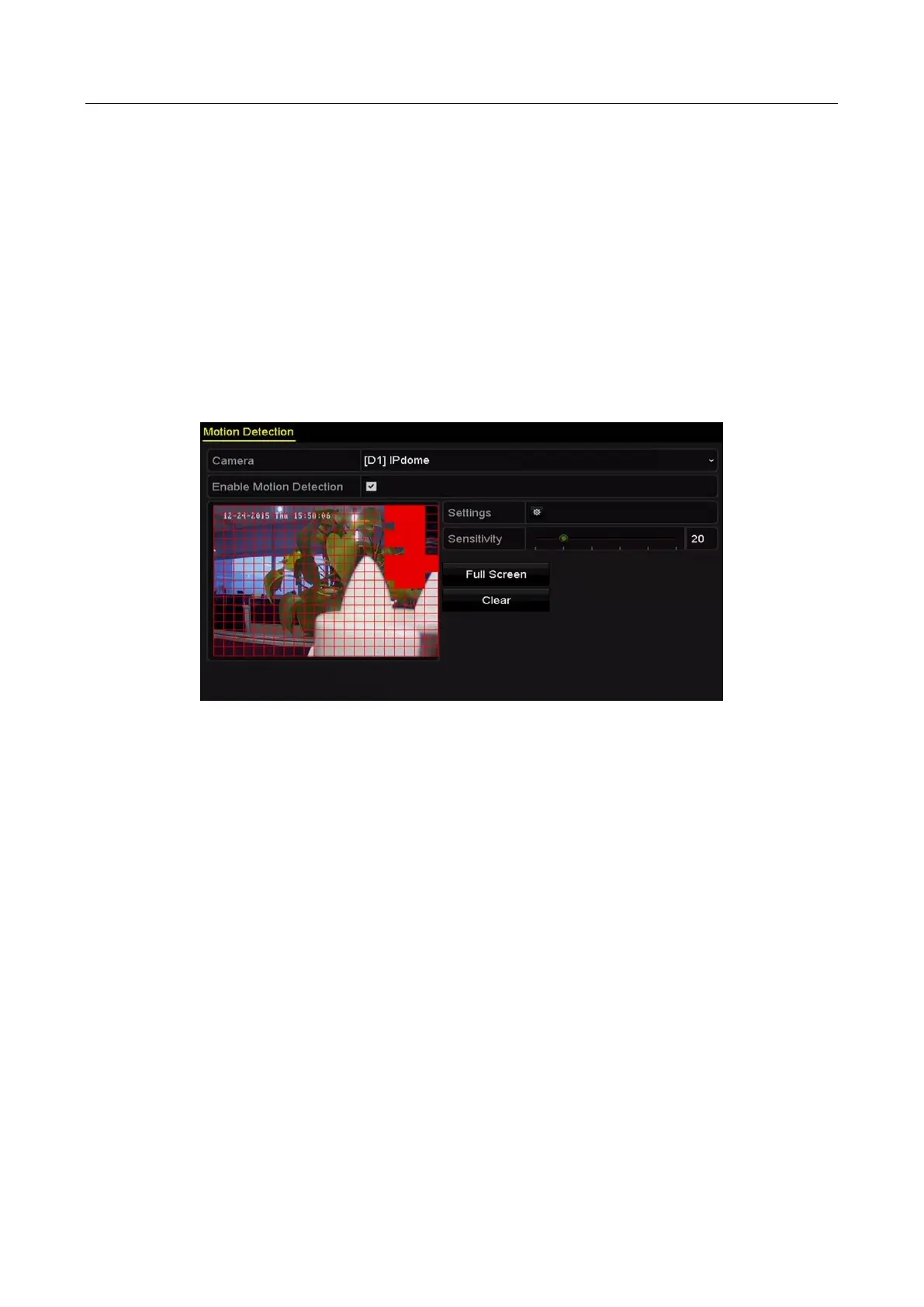

Figure 5-11 Motion Detection
Step 2 Configure Motion Detection:
1) Choose camera you want to configure.
2) Check the checkbox after Enable Motion Detection.
3) Drag and draw the area for motion detection by mouse. If you want to set the motion
detection for all the area shot by the camera, click Full Screen. To clear the motion
detection area, click Clear.
4) Click Settings, and the message box for channel information pops up.
