 Main Monitor: Enter Main operation mode.
In the live view mode of the main output monitor, the menu operation is not available while Aux
output mode is enabled.
3.2.4 Quick Setting Toolbar in Live View Mode
On the screen of each channel, there is a quick setting toolbar which shows when you single click
the mouse in the corresponding screen.

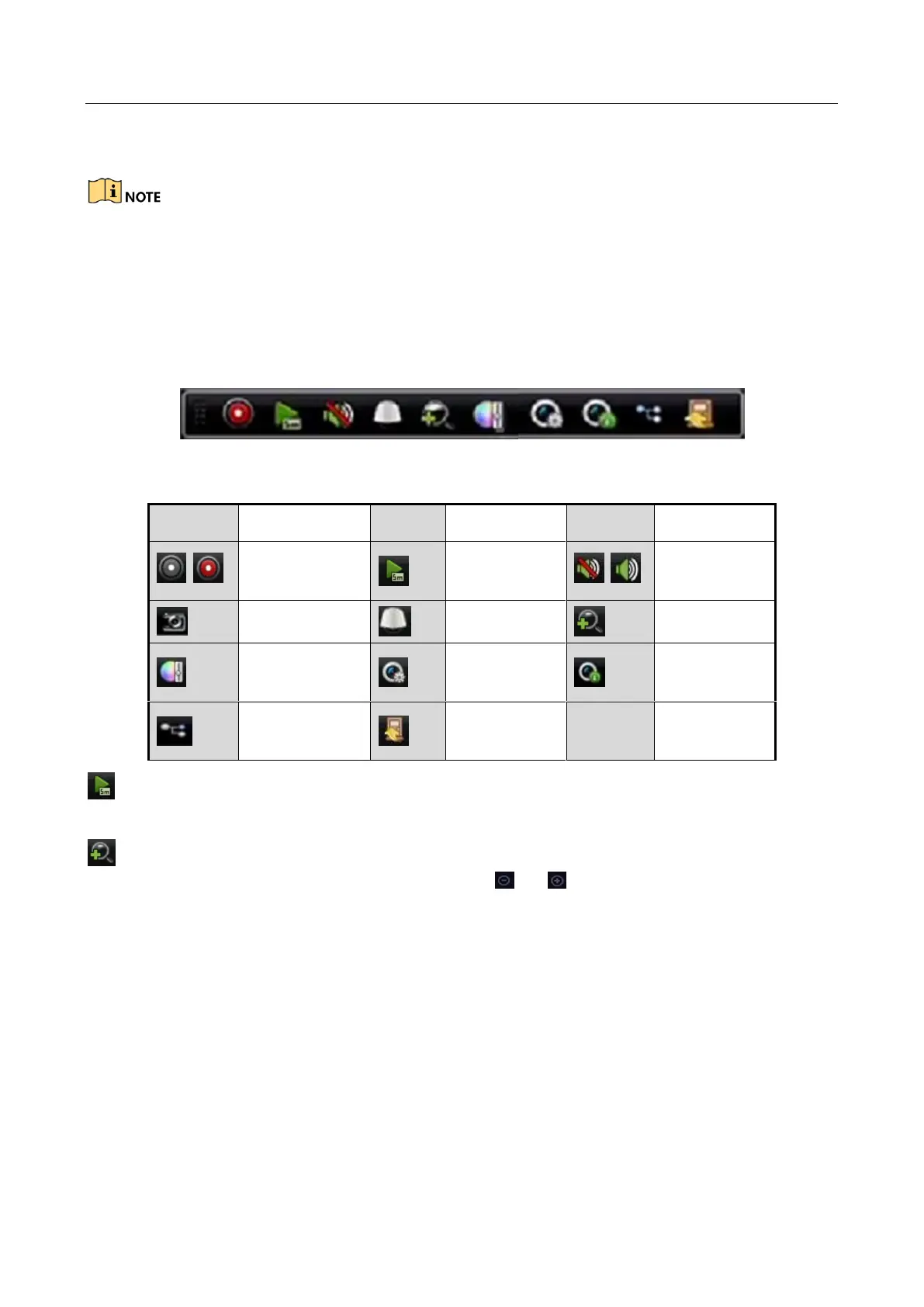

Figure 3-2 Quick Setting Toolbar
Table 3-4 Description of Quick Setting Toolbar Icons
Icon
Description
Icon
Description
Icon
Description
/
Enable/Disable
Manual Record
Instant
Playback
/
Mute/Audio
on
Capture
PTZ Control
Digital Zoom
Image Settings
Live View
Strategy
Information
Main/Sub-Stre
am
Close
Instant Playback only shows the record in last five minutes. If no record is found, it means
there is no record during the last five minutes.
Digital Zoom is for zooming in the live image. You can zoom in the image to different
proportions (1 to16X) by moving the sliding bar from to . You can also scroll the mouse
wheel to control the zoom in/out.

HIKVISION DS-7608NI-Q2/8P Specifications

General

DHCP client	Yes
Input bandwidth	80 Mbit/s
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	1
Video input channels	8 channels
Supported resolutions	1024 x 768, 1280 × 720, 1280 × 1024, 1920 × 1080, 1600 × 1200, 3840 × 2160
Video recording modes	720p, 1080p
Wi-Fi	No
HDD capacity	2000 GB
HDD interface	Serial ATA
Maximum storage capacity	16 TB
Number of HDDs supported	2
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Power over Ethernet (PoE) ports quantity	8
Product color	Black
Rack capacity	1U
LED indicators	LAN, Power, Status
AC input voltage	100 - 240 V
Power consumption (typical)	15 W
Total Power over Ethernet (PoE) budget	80 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
