HIKVISION DS-7616 User Manual

15

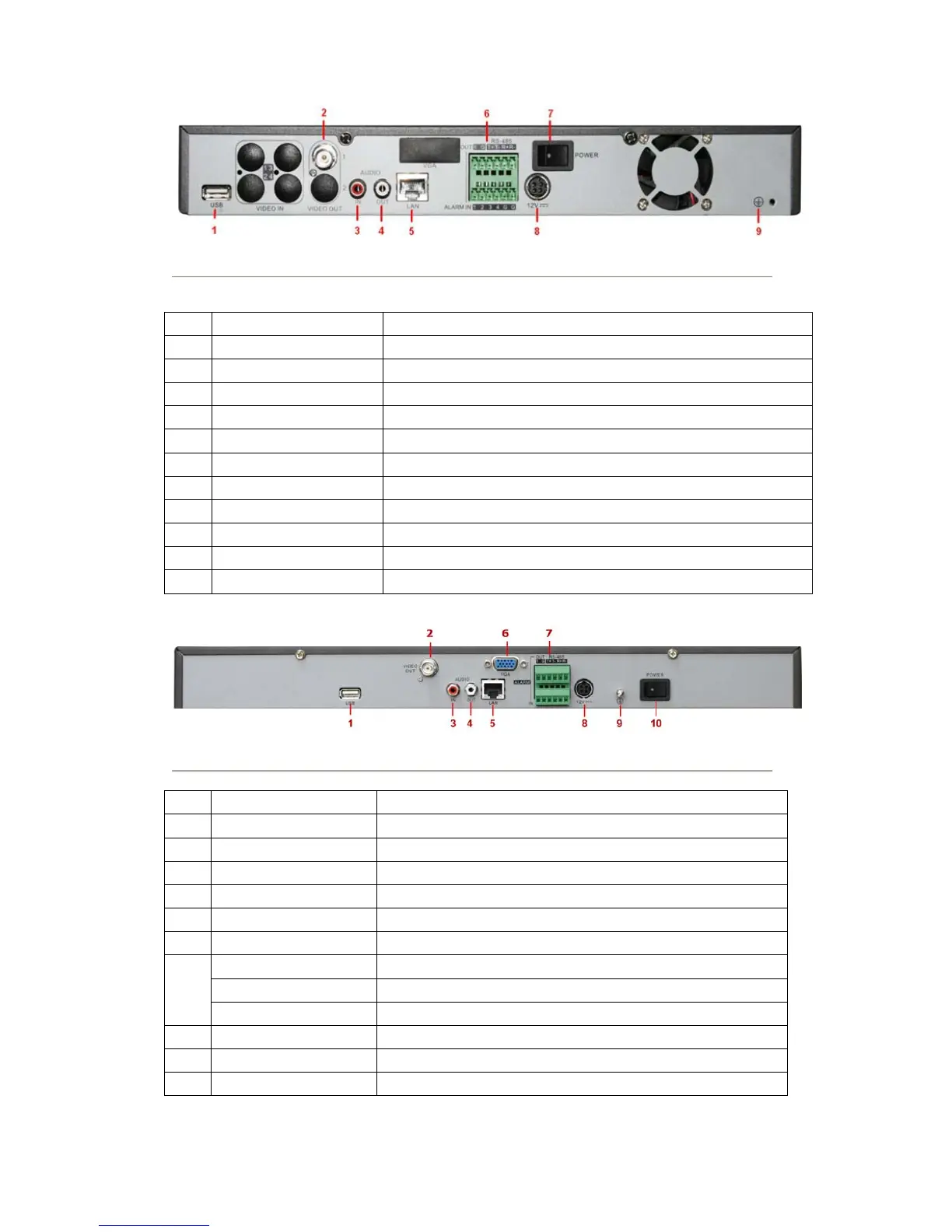

Figure11. Rear Pane of DS-7604NI-S/M
No.
Item
Description
1
USB Interface
Connector for USB devices
2
VIDEO OUT
BNC connector for video output
3
AUDIO IN
RCA connectors for analog audio input
4
AUDIO OUT
RCA connector for audio output
5
LAN
Connector for LAN (Local Area Network)
6
RS-485 Interface
Connector for RS-485 devices. T+, T- pin connects to PTZ
ALARM IN
Connector for alarm input (up to 4 channels)
ALARM OUT
Connector for alarm output (1 channel)
7
POWER
Switch for turn on/off the device
8
12V
12VDC power supply
9
GND
Ground(needs to be connected when DVR startup)
Figure12. Rear Pane of DS-7608NI-S
No.
Item
Description
1
USB Interface
Connector for USB devices
2
VIDEO OUT
BNC connector for video output
3
AUDIO IN
RCA connectors for analog audio input
4
AUDIO OUT
RCA connector for audio output
5
LAN
Connector for LAN (Local Area Network).
6 VGA DB15 connector for VGA output. Display local video output and menu
7
RS-485 Interface Connector for RS-485 devices. T+, T- pin connects to PTZ
ALARM IN Connector for alarm input (up to 4 channels)
ALARM OUT Connector for alarm output (1 channel)
8 12V 12VDC power supply
9
GND
Ground(needs to be connected when DVR startup)
10
POWER
Switch for turn on/off the device
