52

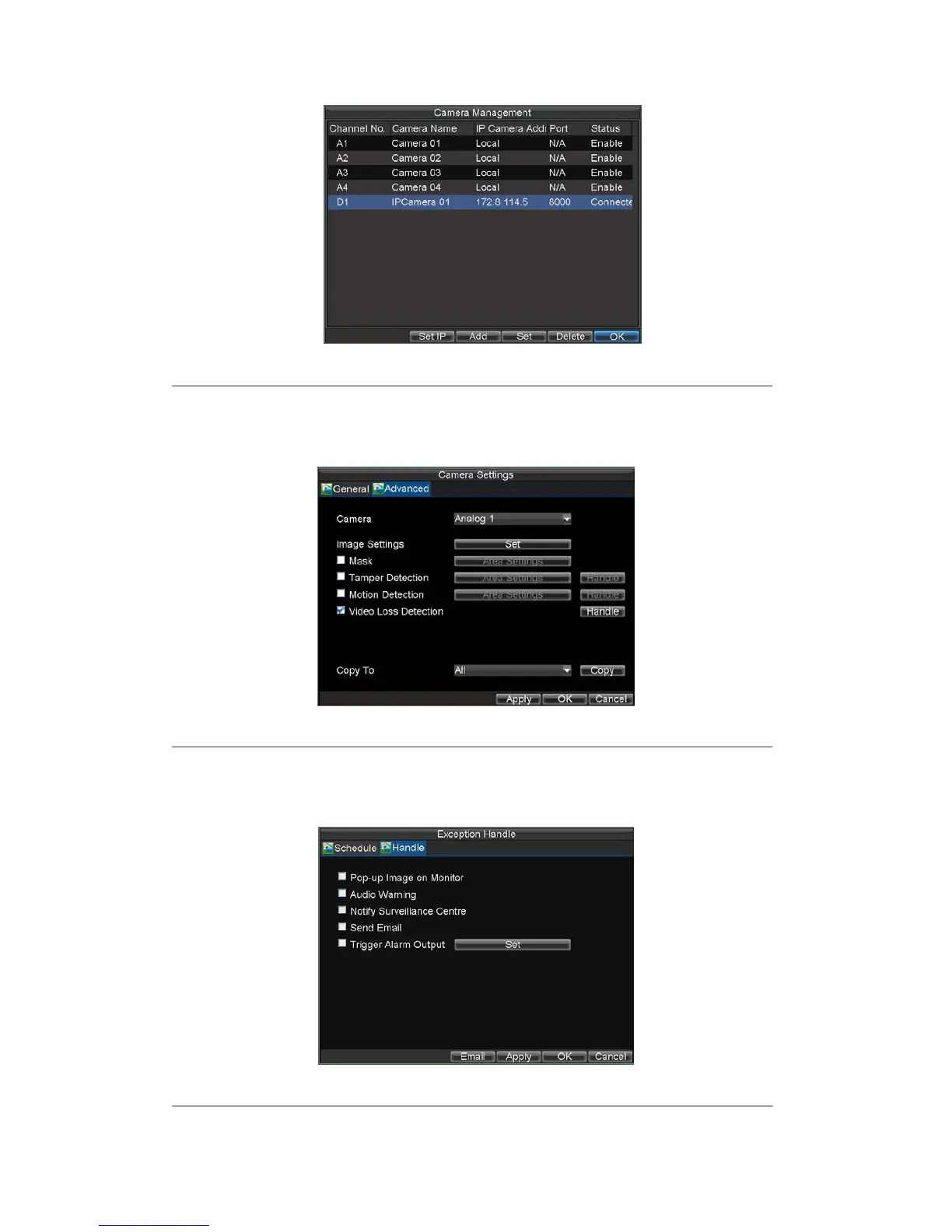

Figure12. Camera Management Menu
2. Select camera under Channel No. to configure video loss detection for and click the Set button.
3. Select the Advanced tab.
4. Check the Video Loss Detection checkbox to enable this feature, as shown in Figure 13.
Figure13. Camera Settings Menu
5. Click the Handle button to enter the Exception Handle menu, shown in Figure 14.
6. Select the Handle tab to configure exceptions handling. Exception trigger options will be
described in the next section (See Understanding Exception Trigger Options).
Figure14. Exception Handle Menu
To Next Page
