HIKVISION DS-7616NI-Q1 User Manual

Network Video Recorder User Manual
213

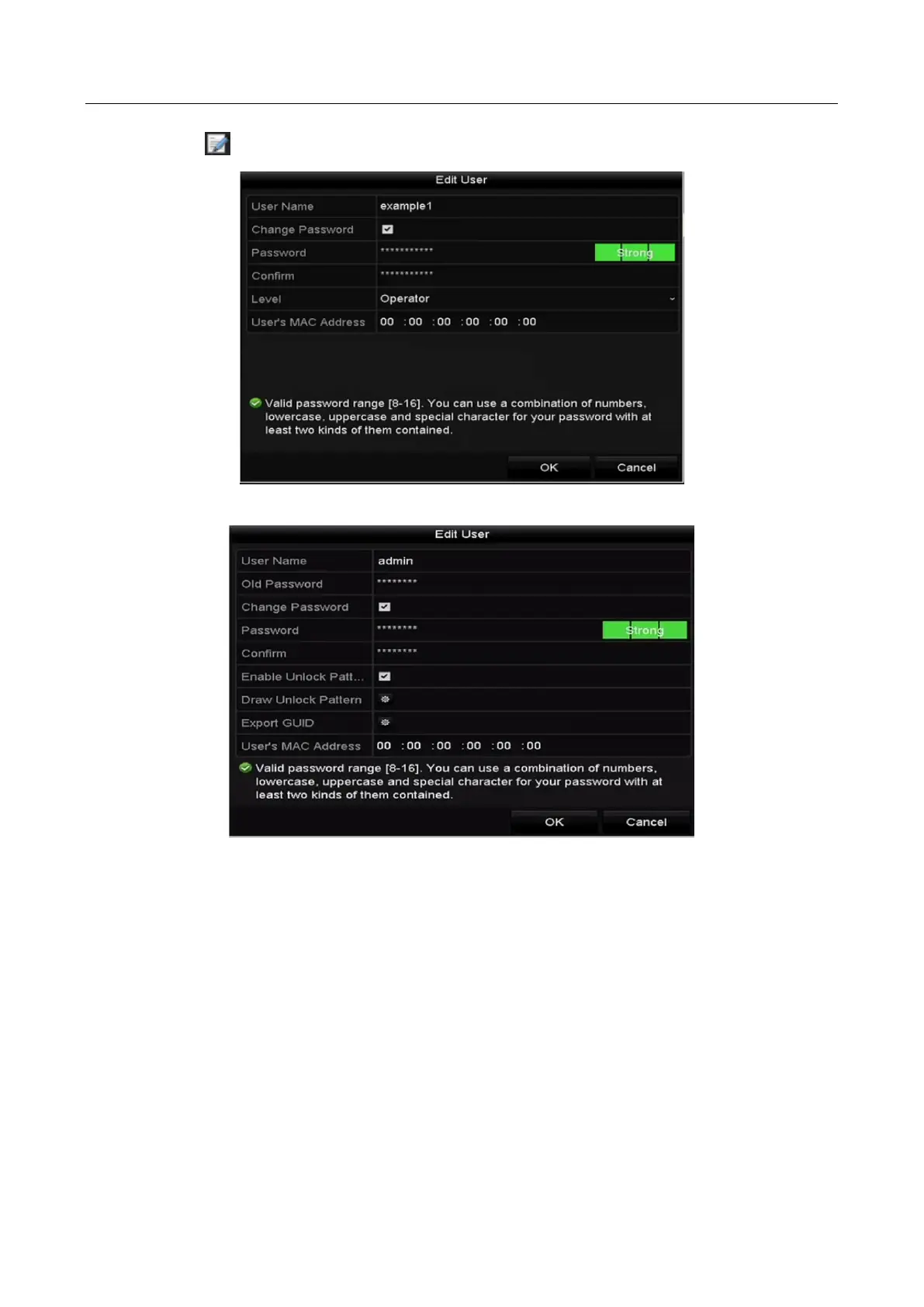

Step 3 Click the icon to enter the Edit User interface, as shown in Figure 15-10.
Figure 15-9 Edit User (Operator/Guest)
Figure 15-10 Edit User (admin)
Step 4 Edit the password for the user
• Operator and Guest
You can edit the user information, including user name, password, permission level and
MAC address. Check the checkbox of Change Password if you want to change the password,
and input the new password in the text field of Password and Confirm. A strong password
is recommended.
• Admin
You are only allowed to edit the password and MAC address. Check the checkbox of
Change Password if you want to change the password, and the input the correct old
password, and the new password in the text field of Password and Confirm.

HIKVISION DS-7616NI-Q1 Specifications

General

Two-way talk	Yes
Input bandwidth	160 Mbit/s
Output bandwidth	80 Mbit/s
Maximum resolution	4096 x 2160 pixels
Video input channels	16 channels
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Video recording modes	720p, 1080p
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035:
Product color	Black
Rack capacity	1U
Audio RCA outputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Wi-Fi	No
Output voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	240 mm
Width	320 mm
Height	48 mm
Weight	1000 g
