HIKVISION DS-7716NI-K4 User Manual

Network Video Recorder User Manual
250

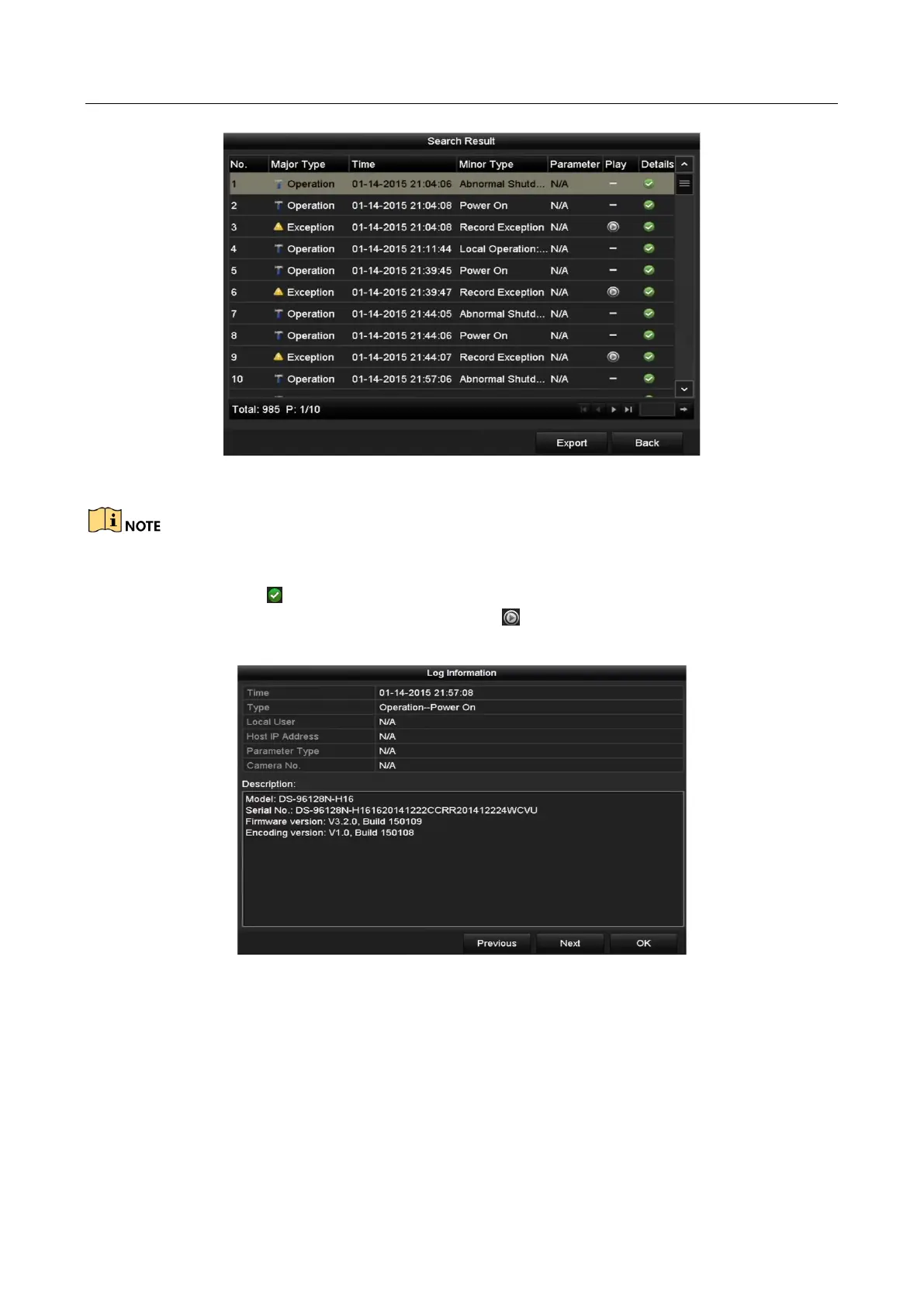

Figure 16-3 Log Search Results
Up to 2000 log files can be displayed each time.
Step 5 You can click the button of each log or double click it to view its detailed information, as
shown in Figure 16-4. And you can also click the button to view the related video files if
available.
Figure 16-4 Log Details
Step 6 If you want to export the log files, click the Export button to enter the Export menu, as
shown in Figure 16-4 Log Details.
You can also click Export All on the Log Search interface (Figure 15.2) to enter the Export
interface (Figure 15.5), and all the system logs will be exported to the backup device.

HIKVISION DS-7716NI-K4 Specifications

General

Audio system	2-way
Input bandwidth	160 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
RS-232 ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Product color	Black
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Wi-Fi	No

Weight and Dimensions

Depth	400 mm
Width	445 mm
Height	71 mm
Weight	5000 g
