HIKVISION DS-7732NI-E4 User Manual

Network Video Recorder User Manual
147

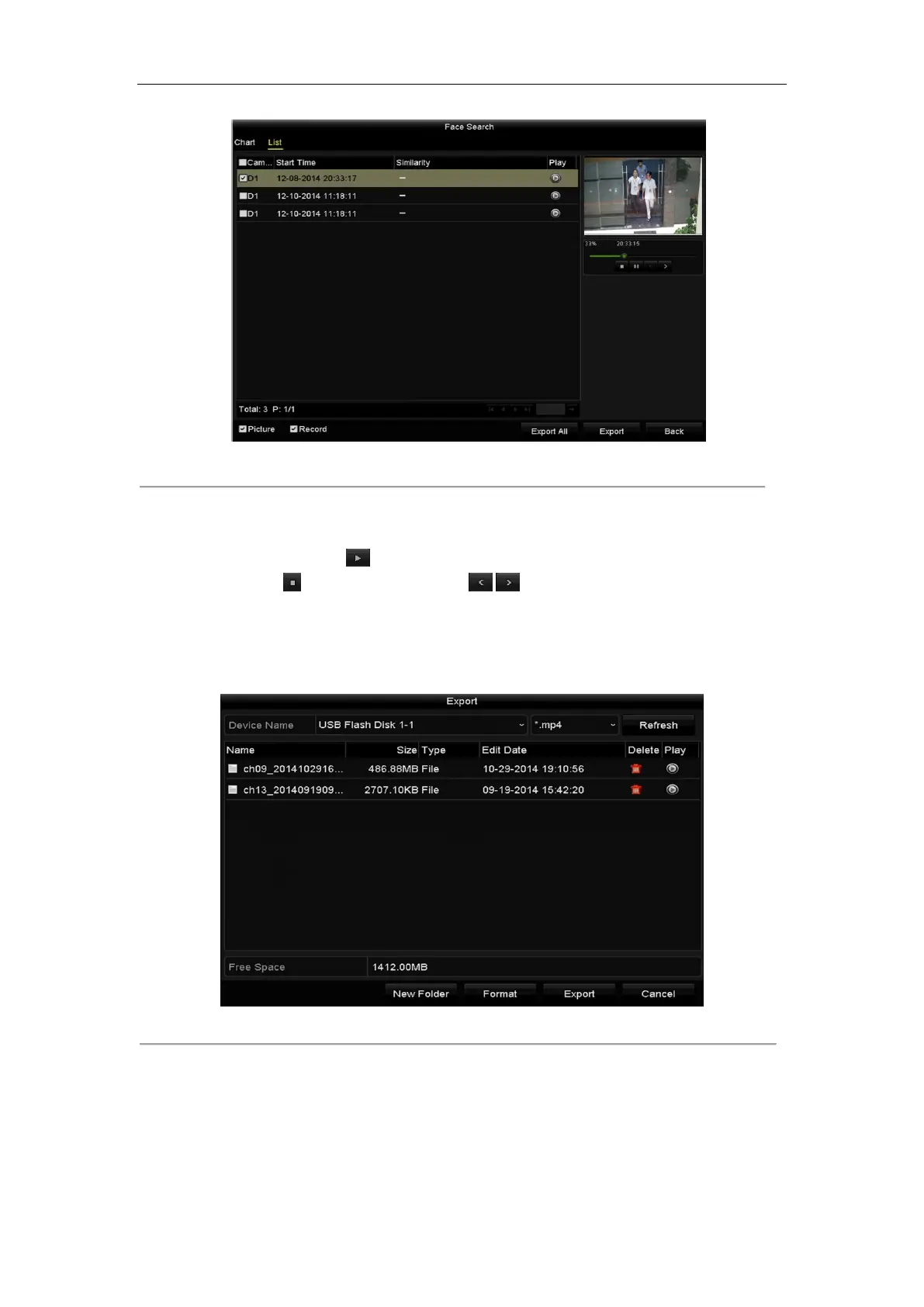

Figure 10. 2 Face Search Interface
5. Play the face picture related video file.
You can double click on a face picture to play its related video file in the view window on the top right, or
select a picture item and click to play it.
You can also click to stop the playing, or click / to play the previous/next file.
6. If you want to export the captured face pictures to local storage device, connect the storage device to the
device and click Export All to enter the Export interface.
Click Export to export all face pictures to the storage device.
Please refer to Chapter 7 Backup for the operation of exporting files.
Figure 10. 3 Export Files

HIKVISION DS-7732NI-E4 Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
HDMI output	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
HDD interface	Serial ATA
Maximum storage capacity	24 TB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	4000 g
