HIKVISION DS-8616NI-K8 User Manual

Network Video Recorder User Manual
121

The indicates the start/end time of the recorded video files.

Playback progress bar: use the mouse to click any point of the progress bar or drag the
progress bar to locate specific frames.

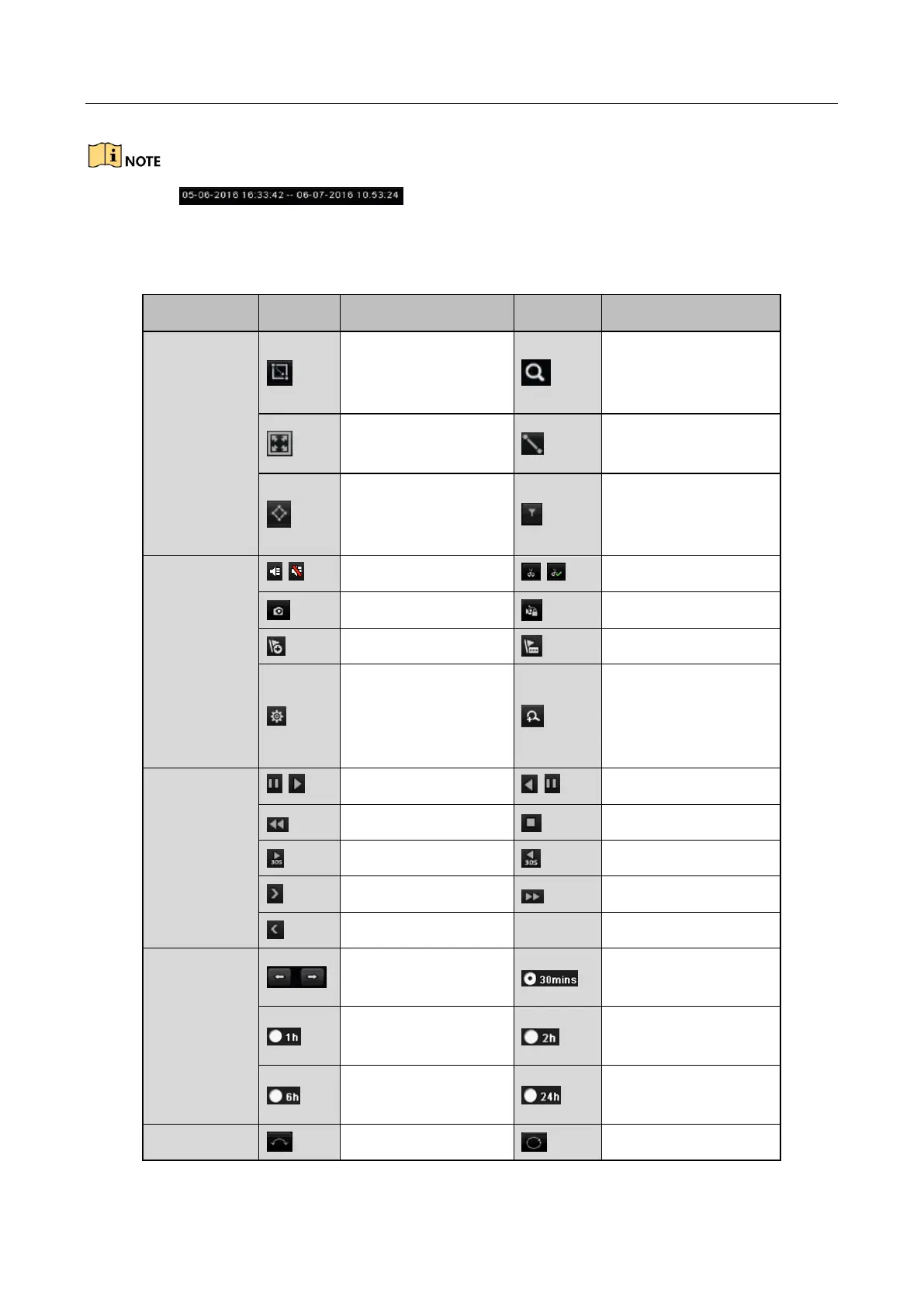

Table 6-1 Detailed Explanation of Playback Toolbar
Item
Button
Operation
Button
Operation
Smart
Search
Draw quadrilateral
for the motion
detection
Search the matched
video
Set full screen for
motion detection
Draw line for the line
crossing detection
Draw quadrilateral
for the intrusion
detection
Filter video files by
setting the target
characters
Operations
/
Audio on/Mute
/
Start/Stop clipping
Capture Picture
Lock File
Add default tag
Add customized tag
File management
for video clips,
captured pictures,
locked files and tags
Digital Zoom
Playing
Control
/
Pause/Play
/
Reverse play/ Pause
Slow forward
Stop
30s forward
30s reverse
Next day
Fast forward
Previous day
Time Bar
Scaling
Previous/Next
period
Play the time bar in
30 minutes (default)
Play the time bar in
1 hour
Play the time bar in 2
hours
Play the time bar in
6 hours
Play the time bar in
24 hours
Fisheye
180° panorama
360° panorama

HIKVISION DS-8616NI-K8 Specifications

General

Audio input	2
RS-232 interface	Yes
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Internal SATA ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
AC input voltage	100 - 240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Ethernet interface type	Gigabit Ethernet
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Input bandwidth	160 Mbit/s
Supported resolutions	3840 × 2160 1920 × 1080 1600 × 1200 1280 × 1024 1280 × 720 1024 × 768
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.265
HDD capacity	- GB
HDD interface	SATA, eSATA
Maximum HDD capacity	6000 GB
Maximum storage capacity	8 TB
Number of HDDs installed	-
Certification	CE, FCC, CB, IC, RCM, KCC, ICE-003
Product color	Black
Rack capacity	2U

Weight and Dimensions

Depth	470 mm
Width	445 mm
Height	90 mm
Weight	8000 g
