Network Video Recorder User Manual
146

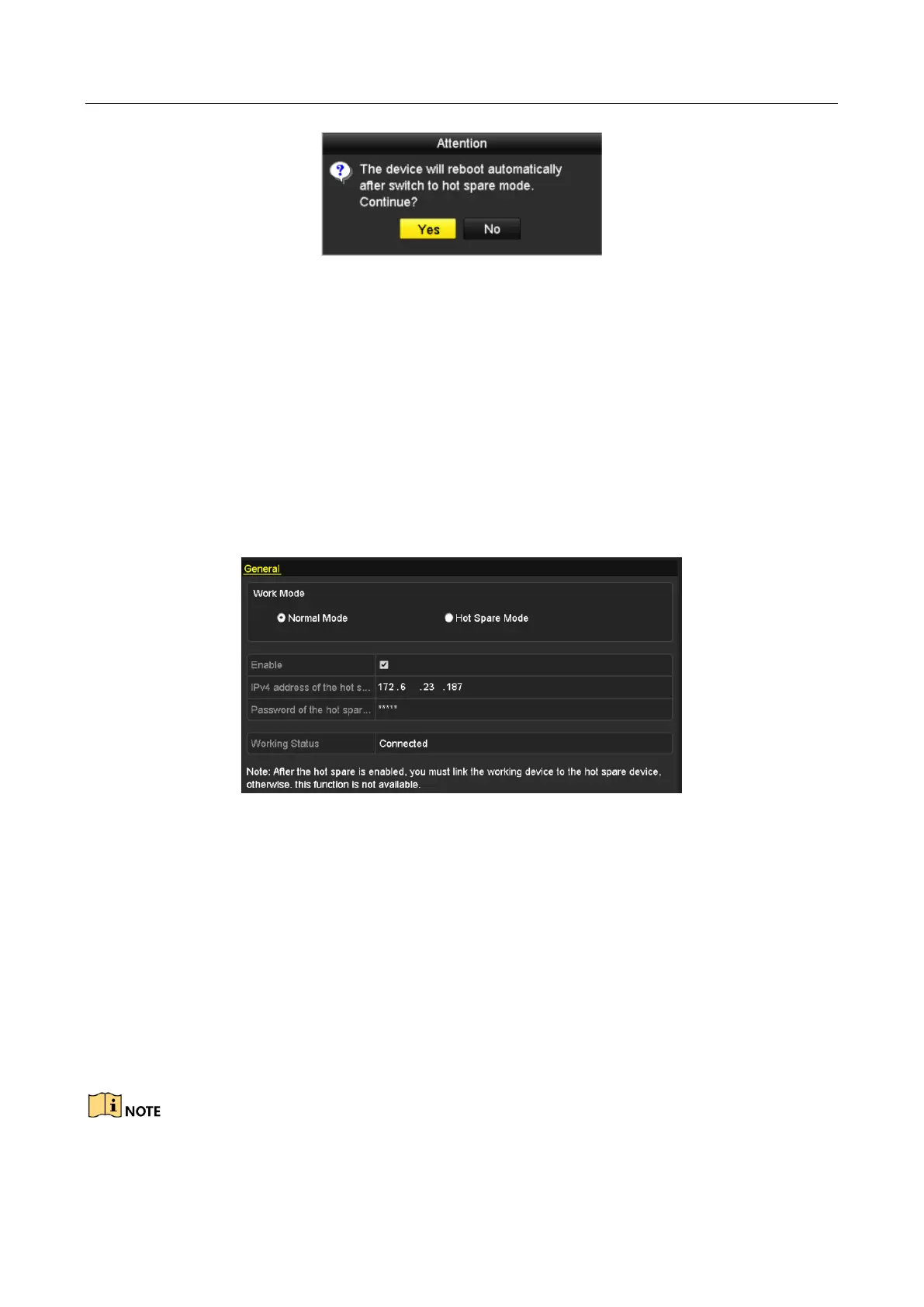

Figure 7-14 Reboot Attention
Step 4 Click the Yes button in the pop-up attention box.
7.3.3 Setting Working Device
Step 1 Enter the Hot Spare settings interface.
Step 2 Menu > Configuration > Hot Spare
Step 3 Set the Work Mode as Normal Mode (default).
Step 4 Check the checkbox of Enable to enable the hot spare function.
Step 5 Enter the IP address and admin password of hot spare device.
Figure 7-15 Setting Working Mode for Working device
Step 6 Click the Apply button to save the settings.
7.3.4 Managing Hot Spare System
Step 1 Enter the Hot Spare Settings interface of the hot spare device.
Menu > Configuration > Hot Spare
The connected working device is displayed on the device list.
Step 2 Check the checkbox to select the working device from the device list, and click the Add
button to link the working device to the hot spare device.
A hot spare device can connect up to 32 working devices.

HIKVISION DS-8616NI-K8 Specifications

General

Audio input	2
RS-232 interface	Yes
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Internal SATA ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
AC input voltage	100 - 240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Ethernet interface type	Gigabit Ethernet
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Input bandwidth	160 Mbit/s
Supported resolutions	3840 × 2160 1920 × 1080 1600 × 1200 1280 × 1024 1280 × 720 1024 × 768
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.265
HDD capacity	- GB
HDD interface	SATA, eSATA
Maximum HDD capacity	6000 GB
Maximum storage capacity	8 TB
Number of HDDs installed	-
Certification	CE, FCC, CB, IC, RCM, KCC, ICE-003
Product color	Black
Rack capacity	2U

Weight and Dimensions

Depth	470 mm
Width	445 mm
Height	90 mm
Weight	8000 g
