HIKVISION DS-8616NI-K8 User Manual

Network Video Recorder User Manual
37
Table 1-8 Panel Description
No.
Name
Description
1
LAN1/LAN2
Interface
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet
interfaces provided.
2
LINE IN
RCA connector for audio input.
3
AUDIO OUT
2 RCA connectors for audio output.
4
HDMI1/HDMI2
HDMI video output connector.
5
VGA1/VGA2
DB9 connector for VGA output. Display local video
output and menu.
6
USB 3.0 interface
Universal Serial Bus (USB) ports for additional
devices such as USB mouse and USB Hard Disk Drive
(HDD).
7
RS-232 Interface
Connector for RS-232 devices.
8
eSATA
Connects external SATA HDD, CD/DVD-RM.
9
Controller Port
D+, D- pin connects to Ta, Tb pin of controller. For
cascading devices, the first NVR’s D+, D- pin should
be connected with the D+, D- pin of the next NVR.
ALARM IN
Connector for alarm input.
ALARM OUT
Connector for alarm output.
10
100 to 240 VAC
100 to 240 VAC power supply.
11
Power Switch
Switch for turning on/off the device.
12
GROUND
Ground (needs to be connected when NVR starts
up).
1.5.2 DS-7600NI Series
DS-7600NI-I2 (/P) and DS-7600NI-K2 (/P)

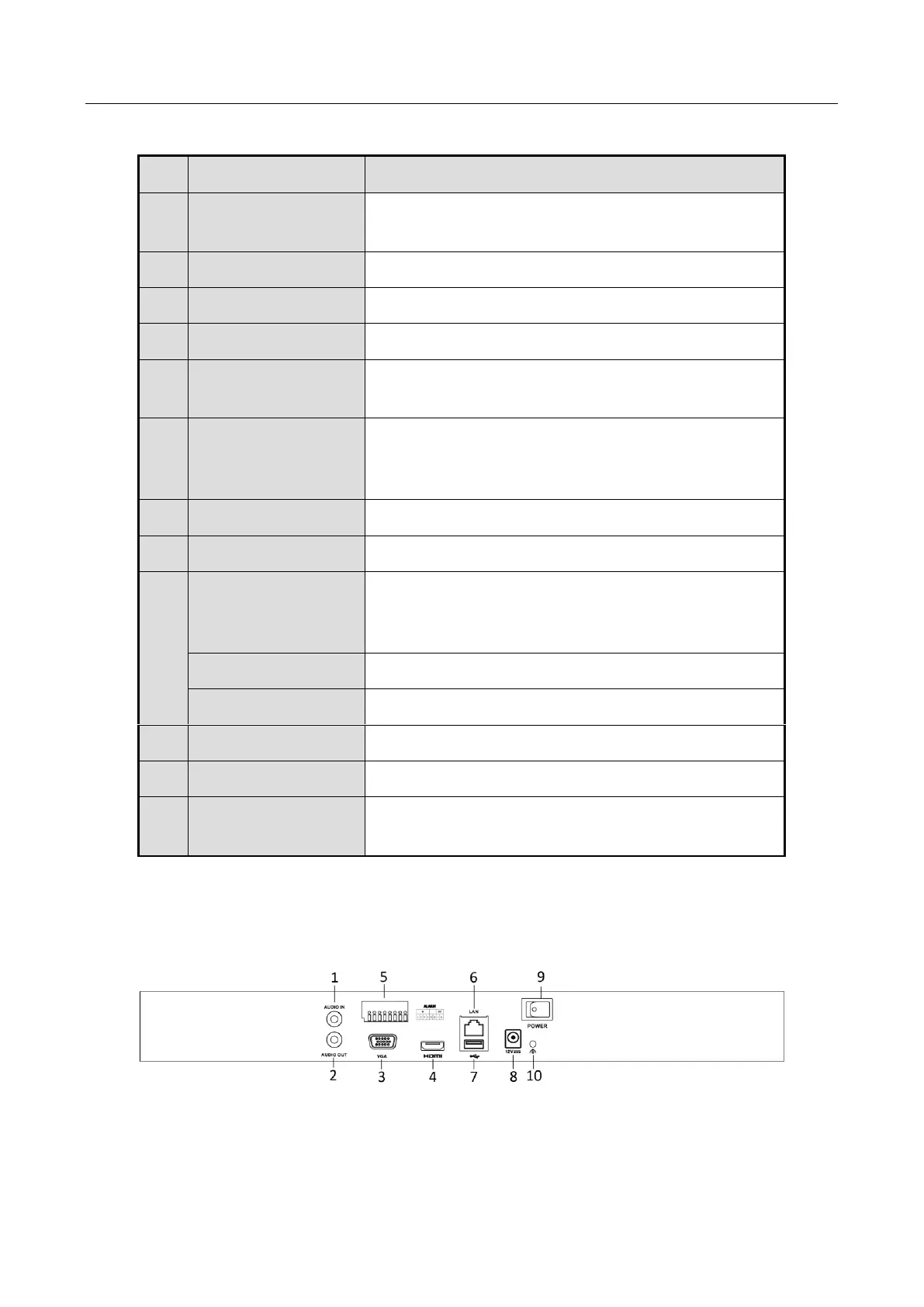

Figure 1-12 DS-7600NI-I2 and DS-7600NI-K2 Series

HIKVISION DS-8616NI-K8 Specifications

General

Audio input	2
RS-232 interface	Yes
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Internal SATA ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
AC input voltage	100 - 240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Ethernet interface type	Gigabit Ethernet
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Input bandwidth	160 Mbit/s
Supported resolutions	3840 × 2160 1920 × 1080 1600 × 1200 1280 × 1024 1280 × 720 1024 × 768
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.265
HDD capacity	- GB
HDD interface	SATA, eSATA
Maximum HDD capacity	6000 GB
Maximum storage capacity	8 TB
Number of HDDs installed	-
Certification	CE, FCC, CB, IC, RCM, KCC, ICE-003
Product color	Black
Rack capacity	2U

Weight and Dimensions

Depth	470 mm
Width	445 mm
Height	90 mm
Weight	8000 g
