When the new protocol is selected, you should reboot the device to activate the new settings.
 Universal Protocol
Click the Advanced button to expand more settings when selecting the universal protocol.
You can set the start line tag, line break tag and end line tag for the POS overlay characters,
and the case-sensitive property of the characters.

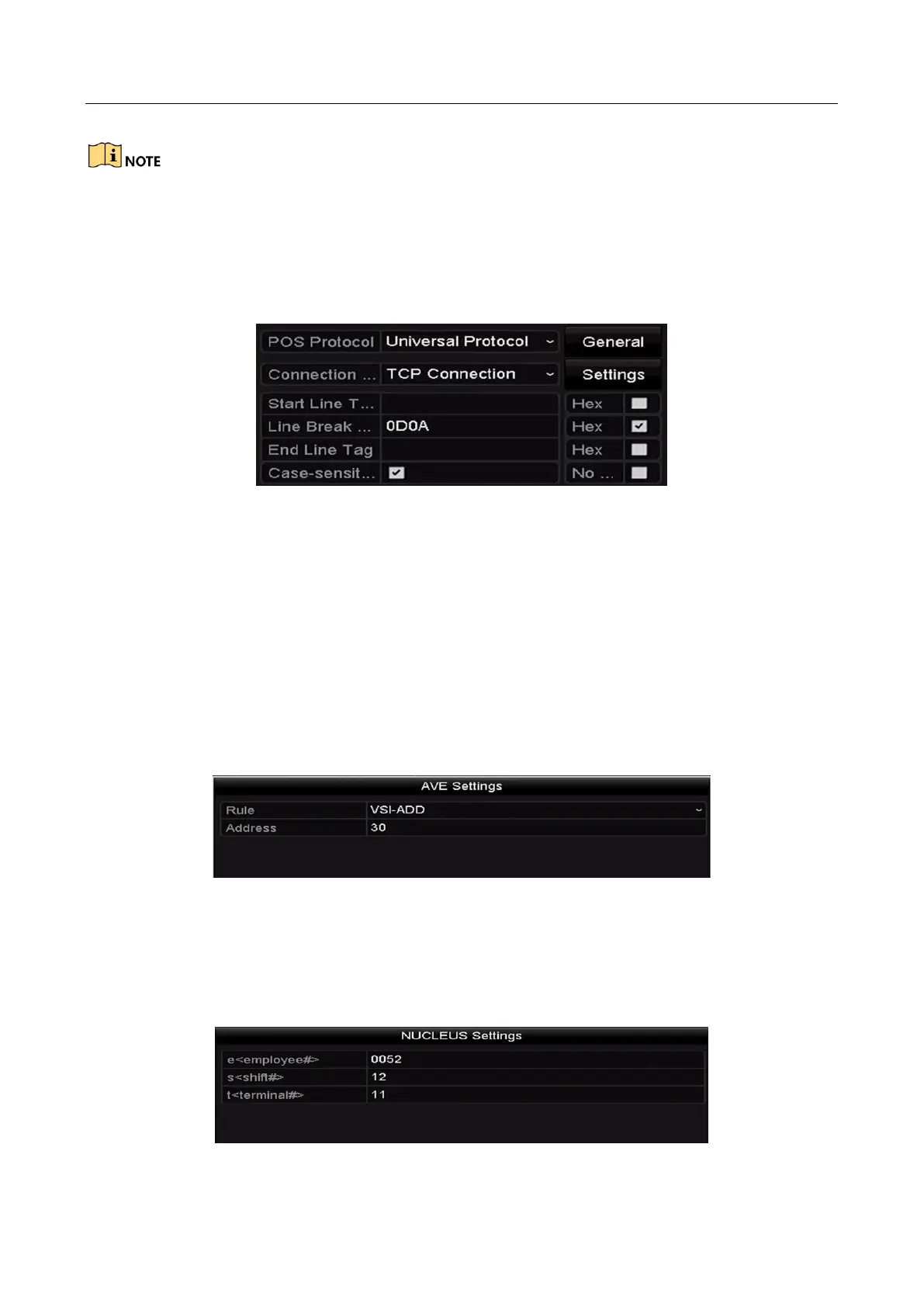

Figure 9-2 Universal Protocol Settings
 EPSON
The fixed start and end line tag are used for EPSON protocol.
 AVE
The fixed start and end line tag are used for AVE protocol. And the serial port and virtual
serial port connection types are supported.
1) Click the Set to configure the AVE settings.
2) Se the rule to VSI-ADD or VNET.
3) Set the address bit of the POS message to send.
4) Click OK to save the settings.
Figure 9-3 AVE Settings
 NUCLEUS
1) Click the Set to configure the NUCLEUS settings.
2) Enter the employee No. shift No. and the terminal No. in the field. The matching message sent from
the POS device will be used as the valid POS data.
Figure 9-4 NUCLEUS Settings

HIKVISION DS-8616NI-K8 Specifications

General

Audio input	2
RS-232 interface	Yes
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Internal SATA ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
AC input voltage	100 - 240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Ethernet interface type	Gigabit Ethernet
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Input bandwidth	160 Mbit/s
Supported resolutions	3840 × 2160 1920 × 1080 1600 × 1200 1280 × 1024 1280 × 720 1024 × 768
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.265
HDD capacity	- GB
HDD interface	SATA, eSATA
Maximum HDD capacity	6000 GB
Maximum storage capacity	8 TB
Number of HDDs installed	-
Certification	CE, FCC, CB, IC, RCM, KCC, ICE-003
Product color	Black
Rack capacity	2U

Weight and Dimensions

Depth	470 mm
Width	445 mm
Height	90 mm
Weight	8000 g
