HIKVISION DS-9016HQHI-SH User Manual

User Manual of Digital Video Recorder
116

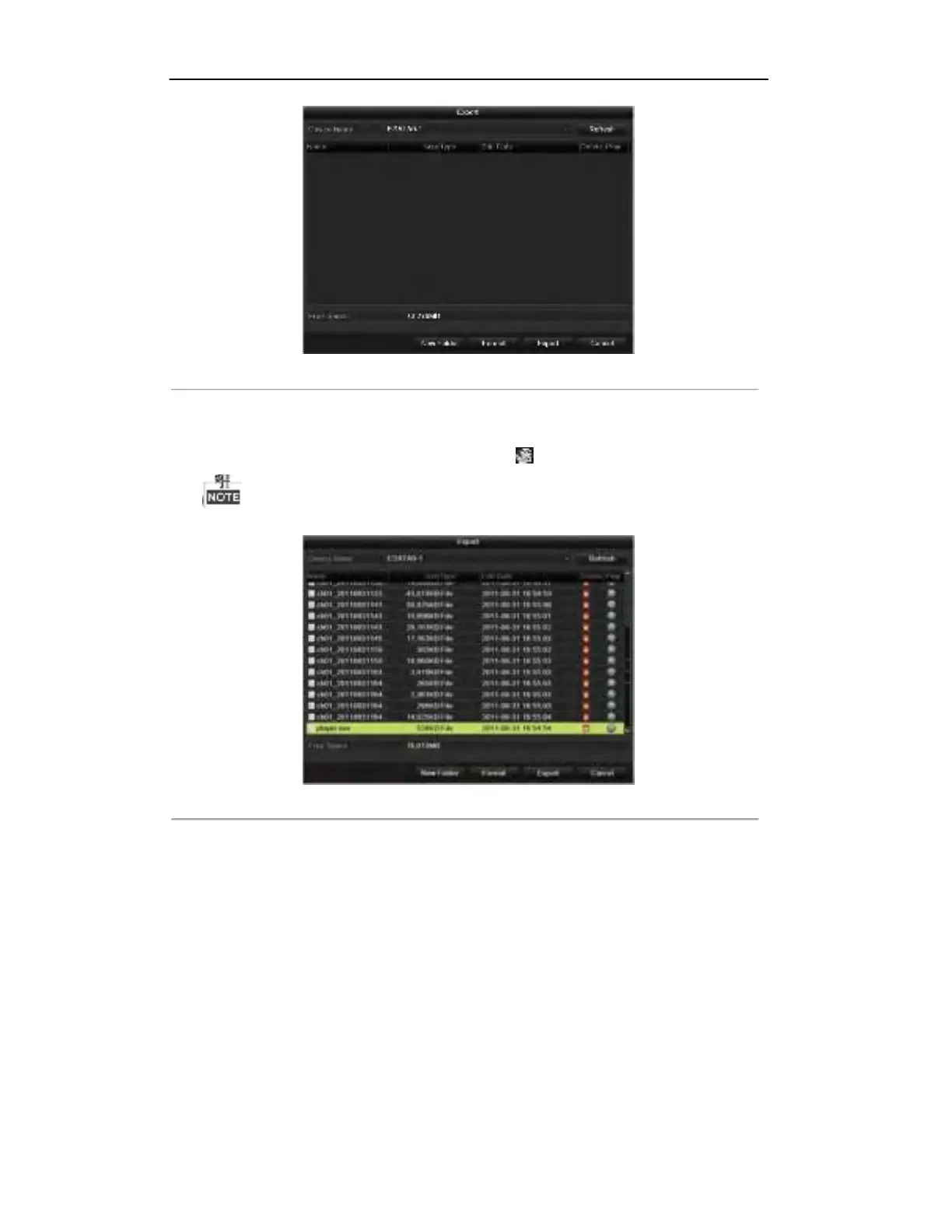

Figure 7. 6 Export by Normal Video Search Using eSATA HDD
Stay in the Exporting interface until all record files are exported with pop-up message “Export finished”.
5. Check backup result.
Choose the record file in Export interface and click button to check it.
The Player player.exe will be exported automatically during record file export.
Figure 7. 7 Checkup of Export Result Using eSATA HDD
7.1.2 Backing up by Event Search
Purpose:
Back up event-related recording files using USB devices, such as USB flash drives, USB HDDs, and USB
writer.
Steps:
1. Enter Export interface.
Menu>Export>Event
2. Search for events.
1) Select Motion , Alarm Input , Line Crossing Detection or Intrusion Detection as the event type.

HIKVISION DS-9016HQHI-SH Specifications

General

Product color	Black
Channels quantity	16 channels
Total storage capacity	0 GB
Video compression formats	H.264
Graphical user interface (GUI)	Yes
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	8
RS-485 ports	1
BNC input ports	16
USB 2.0 ports quantity	3
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, HTTPS, DDNS, RTP, RTSP, SNMP
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power requirements	100-240 VAC, 47-63Hz
Power consumption (typical)	65 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	8000 g
Dimensions (WxDxH)	445 x 470 x 90 mm
