5.5 Configuring VCA Record
Purpose:
The DS-7200/7300/8100/9000 support the VCA (line crossing detection and intrusion detection) triggered
recording.
 The VCA settings and VCA event triggered recording is supported by 1 analog camera for DS-
7200/7300/8100HGHI models and 2 analog camers for DS-7200/7300/8100/9000HQHI models.
 DS-7100-SH does not support VCA.
Steps:
1. Enter the VCA settings interface and select a camera for the VCA settings.
Menu> Camera> VCA

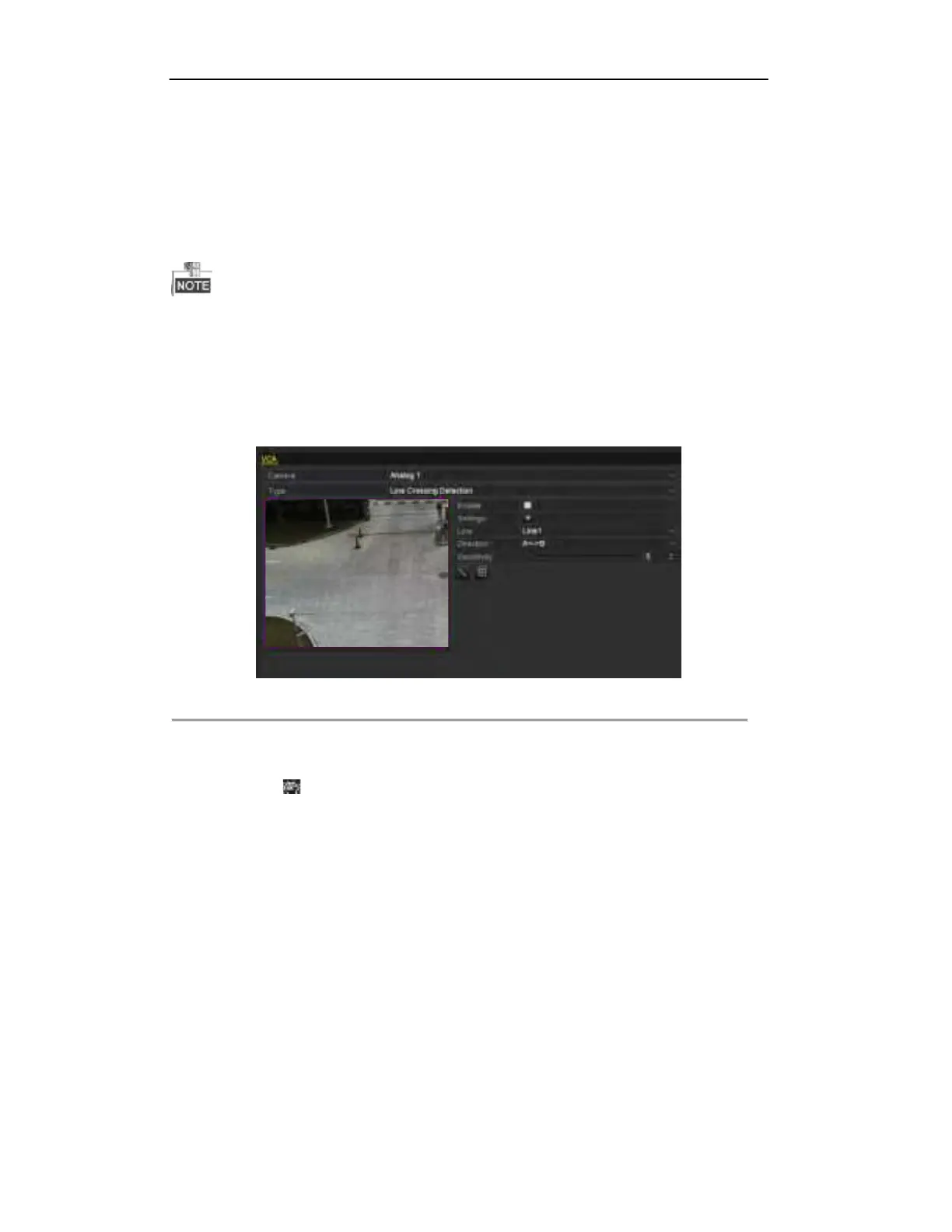

Figure 5. 19 VCA Settings
2. Configure the detection rules for VCA events. For details, see the step 2 in Chapter 8.5 Detecting VCA
Alarm
.
3. Click the icon to configure the alarm linkage actions for the VCA events.
Select
Trigger Channel tab and select one or more channels which will start to record when VCA alarm
is triggered.
Click
Apply to save the settings

HIKVISION DS-9016HQHI-SH Specifications

General

Product color	Black
Channels quantity	16 channels
Total storage capacity	0 GB
Video compression formats	H.264
Graphical user interface (GUI)	Yes
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	8
RS-485 ports	1
BNC input ports	16
USB 2.0 ports quantity	3
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, HTTPS, DDNS, RTP, RTSP, SNMP
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power requirements	100-240 VAC, 47-63Hz
Power consumption (typical)	65 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	8000 g
Dimensions (WxDxH)	445 x 470 x 90 mm
