HIKVISION DS-9016HQHI-SH User Manual

192
User Manual of Digital Video Recorder
13.1 Configuring RS-232 Serial Port
Purpose:
The RS-232 port can be used in two ways:
Parameters Configuration: Connect a PC to the device through the PC serial port. Device parameters can be
configured by using software such as HyperTerminal. The serial port parameters must be the same as the device’s
when connecting with the PC serial port.
Transparent Channel: Connect a serial device directly to the device. The serial device will be controlled
remotely by the PC through the network.
RS-232 serial port is not available for DS-7100 and DS-7200 series.
Steps:
1. Enter the RS-232 Settings interface.
Menu > Configuration > RS-232

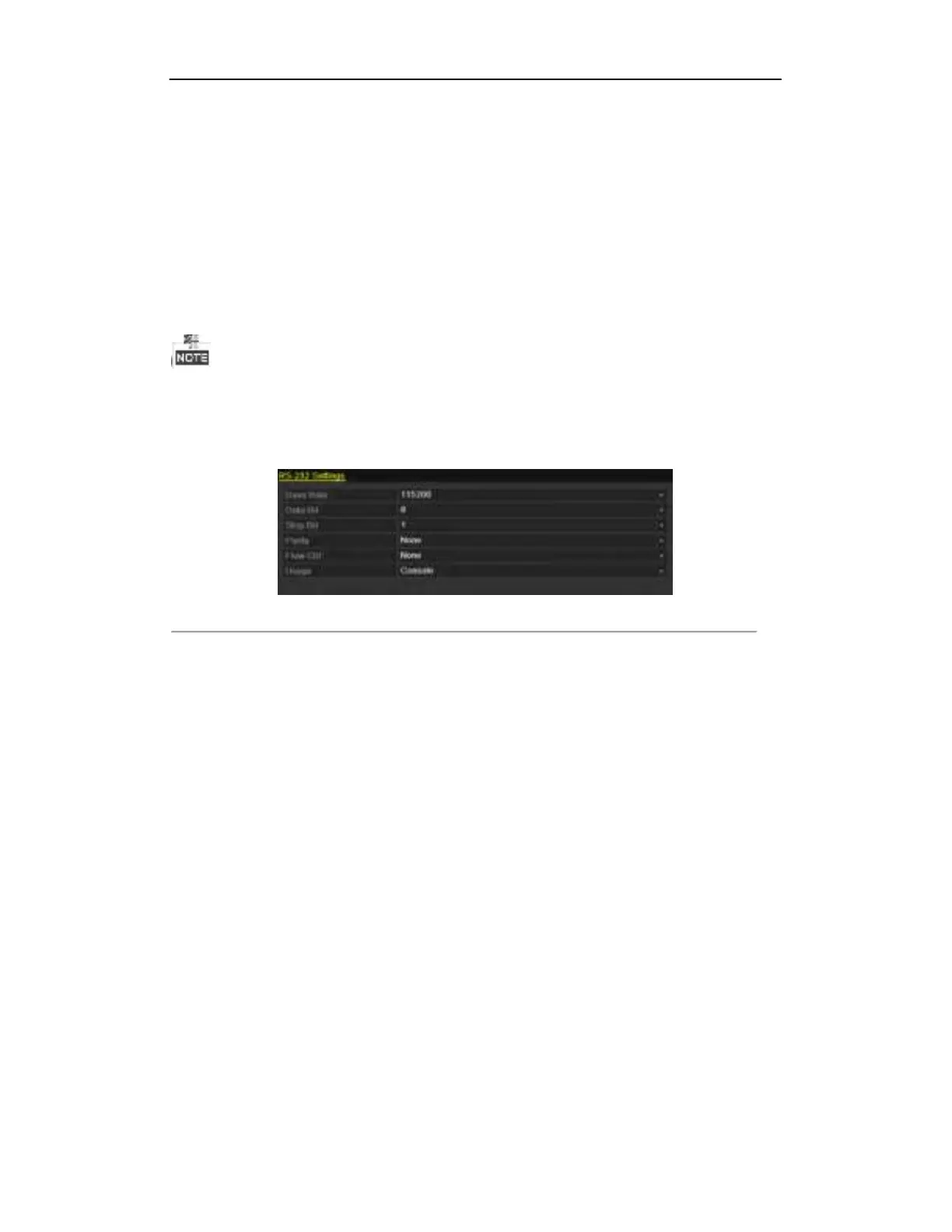

Figure 13. 1 RS-232 Settings Interface
2. Configure RS-232 parameters, including baud rate, data bit, stop bit, parity, flow control and usage.
3. Click Apply to save the settings.

HIKVISION DS-9016HQHI-SH Specifications

General

Product color	Black
Channels quantity	16 channels
Total storage capacity	0 GB
Video compression formats	H.264
Graphical user interface (GUI)	Yes
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	8
RS-485 ports	1
BNC input ports	16
USB 2.0 ports quantity	3
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, HTTPS, DDNS, RTP, RTSP, SNMP
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power requirements	100-240 VAC, 47-63Hz
Power consumption (typical)	65 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	8000 g
Dimensions (WxDxH)	445 x 470 x 90 mm
