User Manual of Digital Video Recorder
10.8 Detecting Bad Sector
Purpose:
You can detect the bad sector of the HDD to check the status of the HDD.
Steps:
1. Enter the HDD Detect interface.
Menu>HDD>HDD Detect

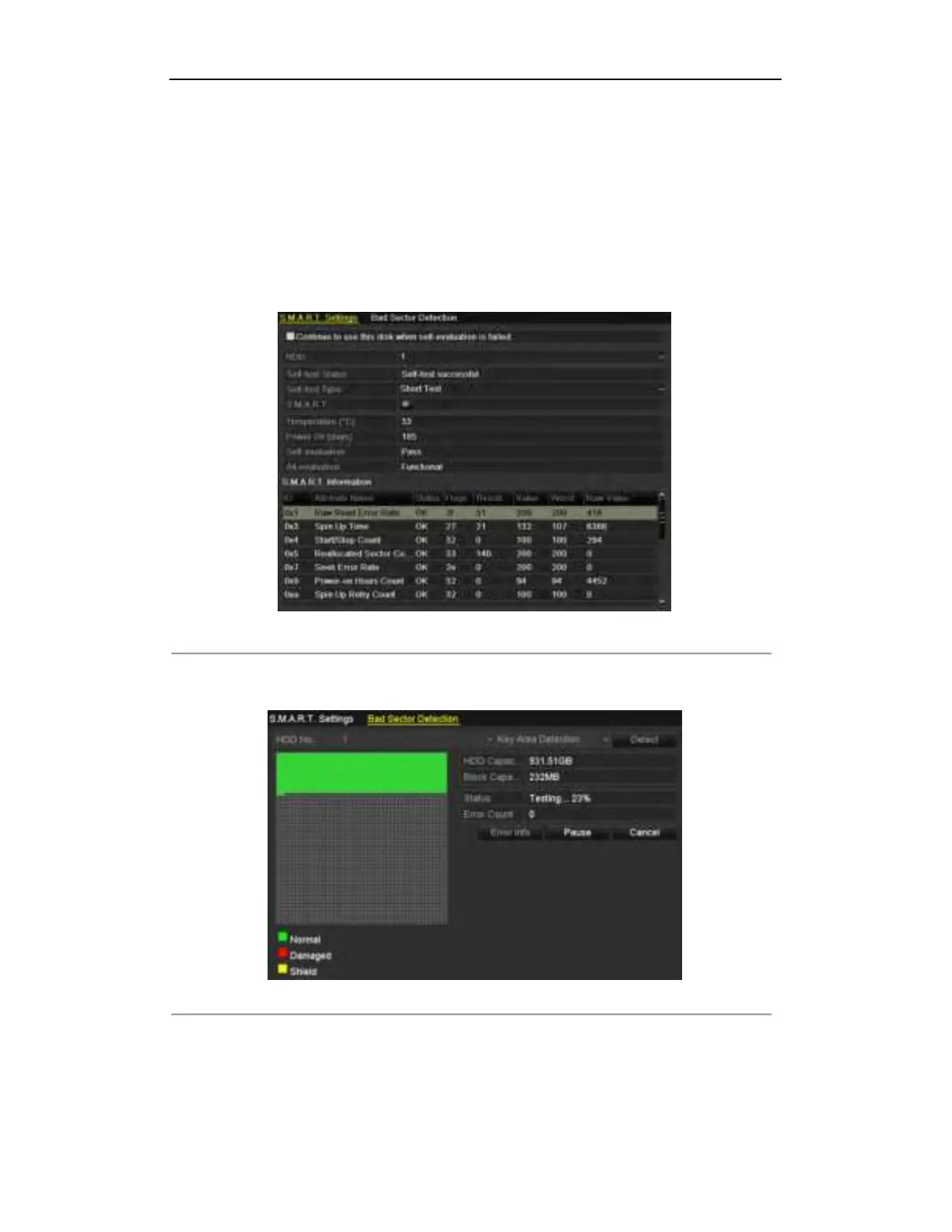

Figure 10. 23 Bad Sector Detection
2. Click the Bad Sector Detection tab to enter the interface.
3. Select a HDD and click the Detect button to start detecting.
Figure 10. 24 Bad Sector Detecting
4. You can click the Pause button to pause the detection and click the Resume button to resume the detection.
5. If there is error information about the HDD, you can click the Error Info button to view the information.

HIKVISION DS-9016HQHI-SH Specifications

General

Product color	Black
Channels quantity	16 channels
Total storage capacity	0 GB
Video compression formats	H.264
Graphical user interface (GUI)	Yes
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	8
RS-485 ports	1
BNC input ports	16
USB 2.0 ports quantity	3
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, HTTPS, DDNS, RTP, RTSP, SNMP
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power requirements	100-240 VAC, 47-63Hz
Power consumption (typical)	65 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	8000 g
Dimensions (WxDxH)	445 x 470 x 90 mm
