User Manual of Digital Video Recorder
9.4.3 Checking Network Status
Purpose:
You can also check the network status and quick set the network parameters in this interface.
Steps:
Click Status on the right bottom of the page.

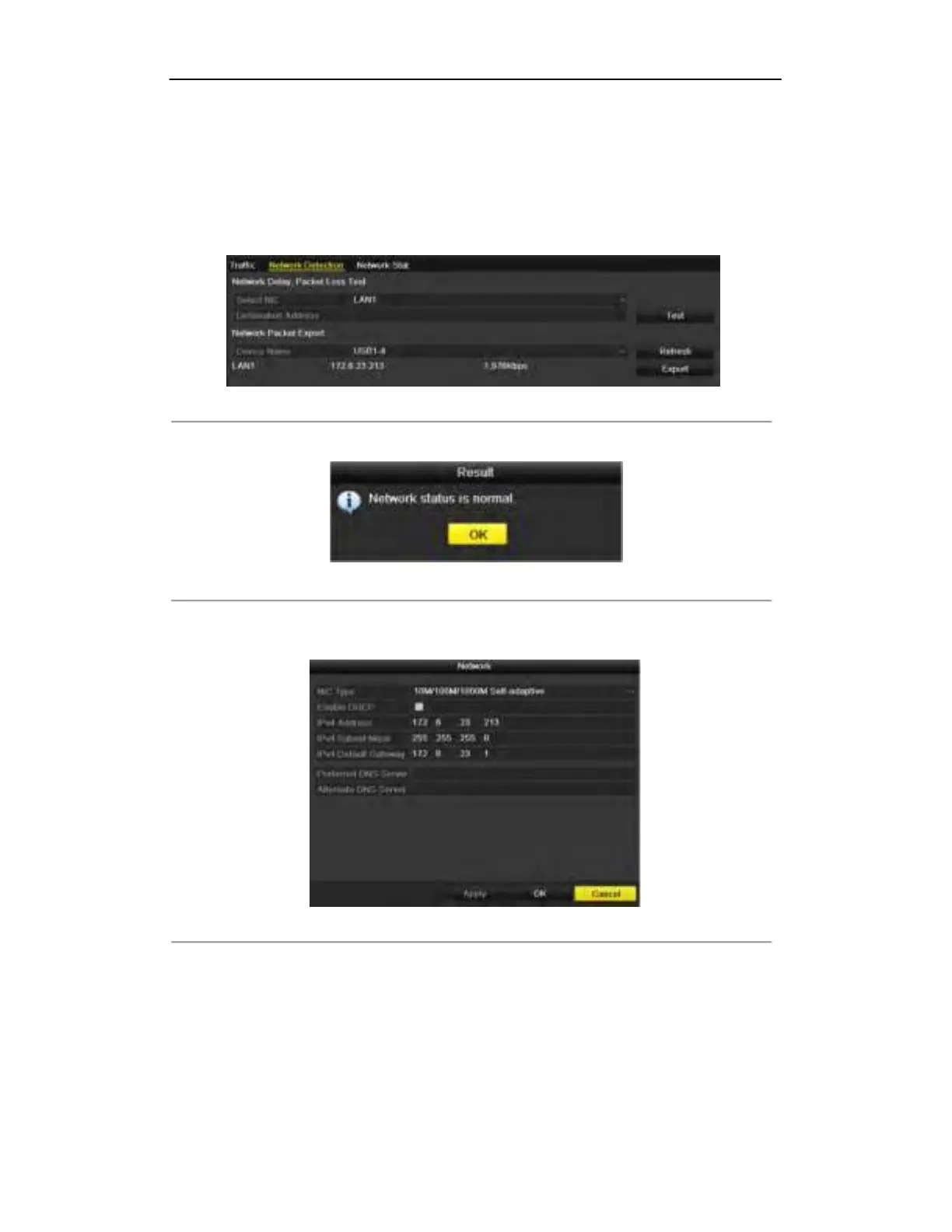

Figure 9. 31 Checking Network Status
If the network is normal the following message box pops out.
Figure 9. 32 Network Status Checking Result
If the message box pops out with other information instead of this one, you can click Network button to show
the quick setting interface of the network parameters.
Figure 9. 33 Network Parameters Configuration
9.4.4 Checking Network Statistics
Purpose :
You can check the network statistics to obtain the real-time information of the device.
Steps:

HIKVISION DS-9016HQHI-SH Specifications

General

Product color	Black
Channels quantity	16 channels
Total storage capacity	0 GB
Video compression formats	H.264
Graphical user interface (GUI)	Yes
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	8
RS-485 ports	1
BNC input ports	16
USB 2.0 ports quantity	3
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, HTTPS, DDNS, RTP, RTSP, SNMP
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power requirements	100-240 VAC, 47-63Hz
Power consumption (typical)	65 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	8000 g
Dimensions (WxDxH)	445 x 470 x 90 mm
