HIKVISION DS-9016HQHI-SH User Manual

User Manual of Digital Video Recorder
37

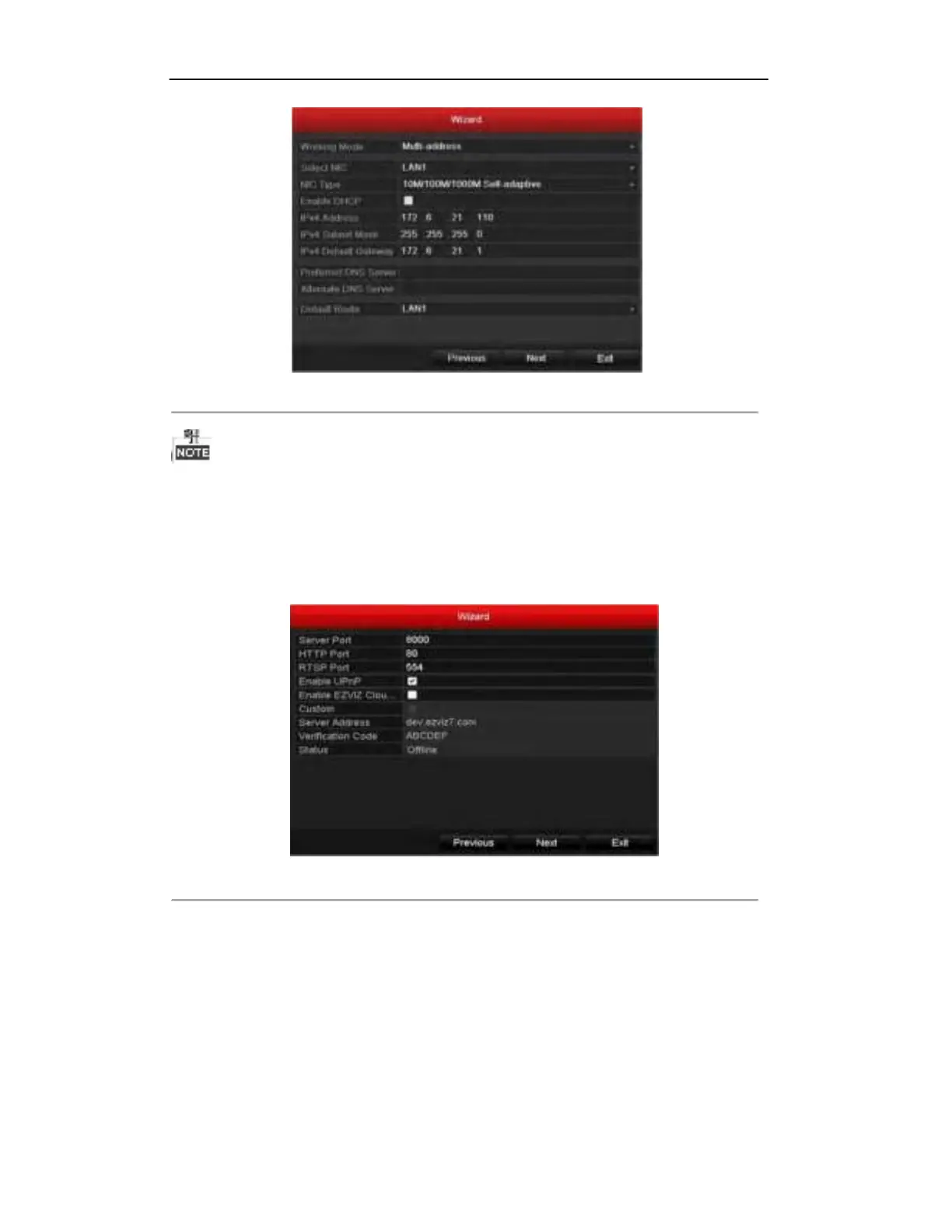

Figure 2. 7 General Network Configuration
1 self-adaptive 10M/100M network interface for DS-7100, DS-7204/7208HGHI-SH and DS-7200HGHI-E1/E2;
2 self-adaptive 10M/100M/1000M network interfaces for DS-8100HQHI&HGHI-SH series, with three working
modes configurable: multi-address, load balance, network fault tolerance; and 1 self-adaptive
10M/100M/1000M network interface for other models.
4. Click Next button after you having configured the network parameters, which will take you to the
Advanced Network Setup Wizard window, as shown in Figure 2. 8.
Figure 2. 8 Advanced Network Configuration
5. Set the parameters of port No., EZVIZ Cloud P2P, Auto UPnP or DDNS if required.
6. Click Next button after configuring the advanced network parameters, which will take you to the HDD
Management window, shown in Figure 2. 9.

HIKVISION DS-9016HQHI-SH Specifications

General

Product color	Black
Channels quantity	16 channels
Total storage capacity	0 GB
Video compression formats	H.264
Graphical user interface (GUI)	Yes
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	8
RS-485 ports	1
BNC input ports	16
USB 2.0 ports quantity	3
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, HTTPS, DDNS, RTP, RTSP, SNMP
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power requirements	100-240 VAC, 47-63Hz
Power consumption (typical)	65 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	8000 g
Dimensions (WxDxH)	445 x 470 x 90 mm
