2. Rear Panel Interface
The panel appearance and interface vary by model. The devices can be classified as follows.
2.1. Type A

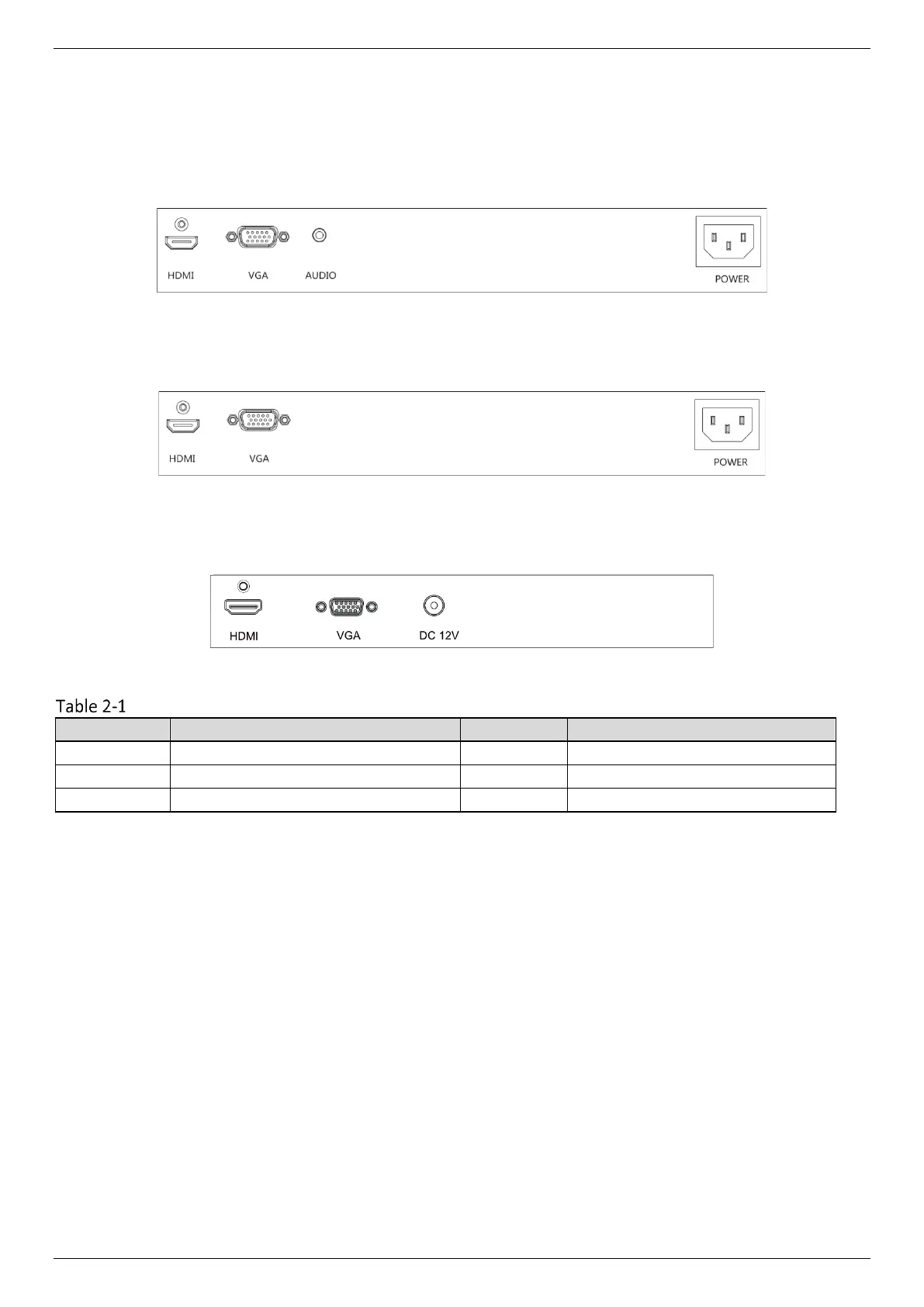

Figure 1, Type A Interface
2.2. Type B
Figure 2, Type B Interface
2.3. Type C
Figure 3, Interface of Type C
Interface Description
Interface
Description
Interface
Description
HDMI
HDMI digital signal input interface
AUDIO
Audio input interface
VGA
VGA analog signal input interface
POWER
AC power supply
DC 12V
Power adapter interface
--
--
NOTE: Audio input interface is only available for type A, and power adapter interface for
type C.

HIKVISION DS-D5022FN-C Specifications

General

Panel type	-
Color gamut	72 %
Pixel pitch	0.0831 x 0.241 mm
Screen shape	Flat
Response time	6.5 ms
Backlight type	Direct LED
Display diagonal	21.5 \
Display technology	LED
Maximum refresh rate	60 Hz
Viewable size, vertical	260.28 mm
Contrast ratio (typical)	3000:1
Viewable size, horizontal	478.656 mm
Display brightness (typical)	250 cd/m²
HDMI	Yes
Energy efficiency scale	A to G
Power consumption (standby)	0.5 W
Power consumption (typical)	22 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 90 %
Panel mounting interface	75 x 75 mm
Package depth	403 mm
Package width	644 mm
Package height	108 mm
Package weight	3800 g
Product color	Black
Market positioning	Business

Weight and Dimensions

Bezel width (side)	19.06 mm
Depth (with stand)	200.2 mm
Width (with stand)	492.356 mm
Height (with stand)	390.11 mm
Weight (with stand)	2500 g
Bezel width (bottom)	30.87 mm
Depth (without stand)	43.88 mm
Height (without stand)	289.68 mm
