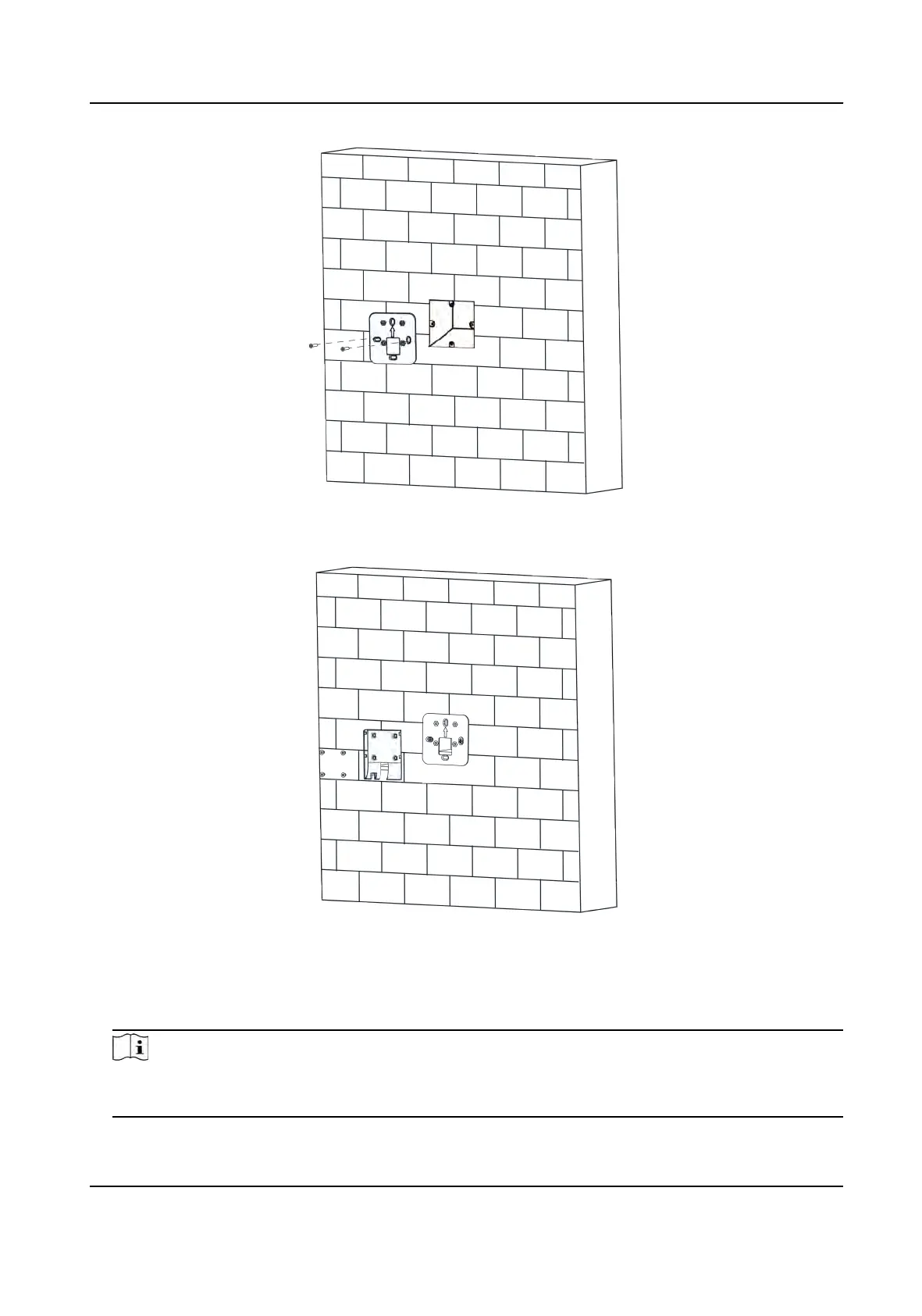

Figure 3-2 Secure Base Plate
3. Use another 4 supplied scr
ews (KA4×22-SUS) to secure the mounng plate on the base plate.
Figure 3-3 Install Mounng Plate
4. R
oute the cable through the cable hole of the mounng plate, and connect to corresponding
external devices' cables.
5. Align the device with the mounng plate and hang the device on the mounng plate.
Note
If you want to install the device outdoors, you should install a protecve
shield. For details, ask
our technique supports.
