4.3 Wire Secure Door Control Unit
You can connect the terminal with the secure door control unit.

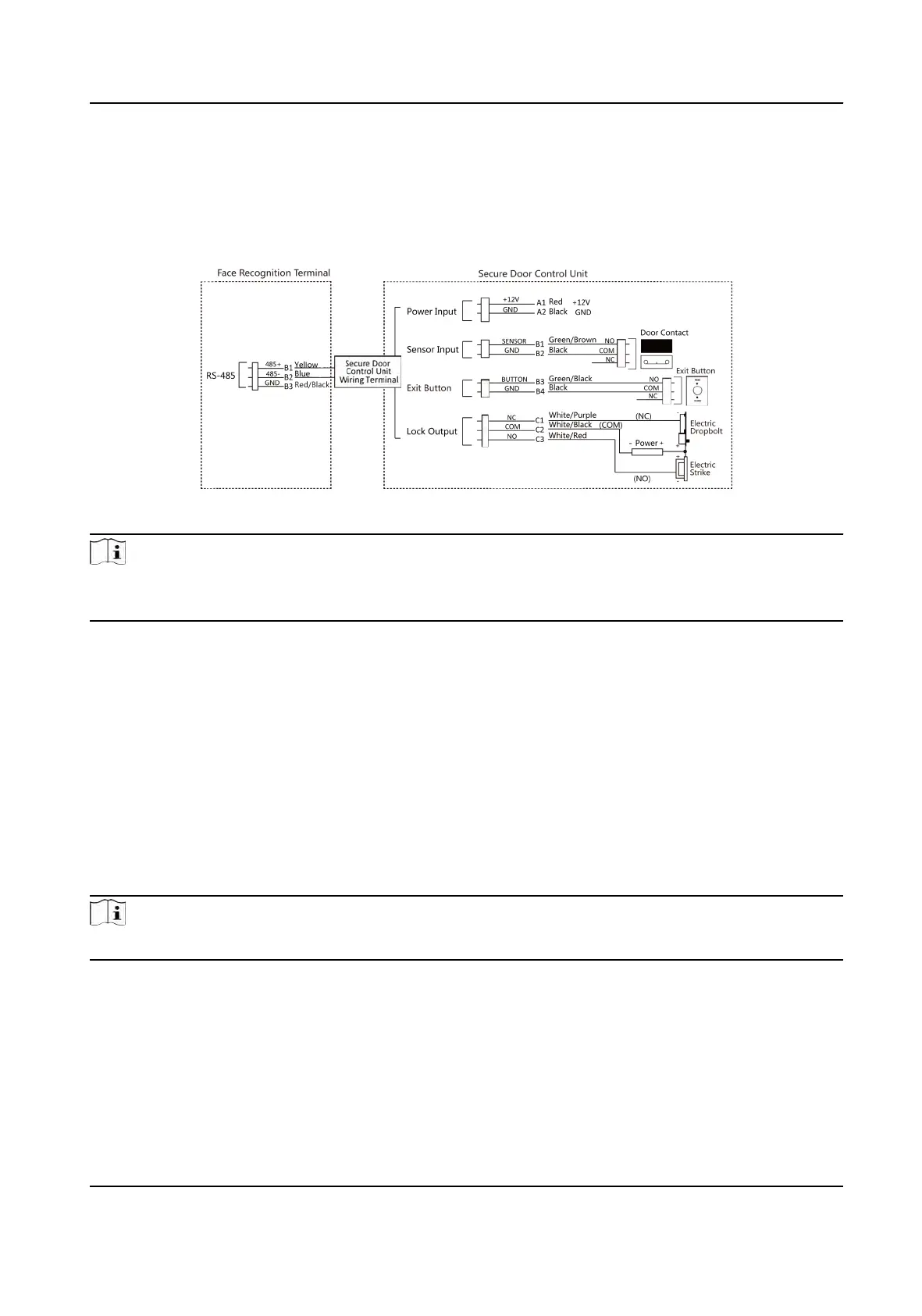

The wiring diagram is as follows.
Figure 4-2 Secure Door Control Unit Wiring
Note
The secure door control unit should connect to an external power supply separately. The suggested
e
xternal power supply is 12V, 0.5A.
4.4 Wire Fire Module
4.4.1 Wiring Diagram of Door Open When Powering O
Lock Type: Anode Lock,
Magnec Lock, and Electric Bolt (NO)
Security Type: Door Open When Powering O
Scenario: Installed in Fire Engine Access
Type 1
Note
The
re system controls the power supply of the access control system.
DS-K1T341A Series Face Recognion Terminal User Manual
13

HIKVISION DS-K1T341AMF Specifications

General

Model	DS-K1T341AMF
Category	Touch terminals
Operating System	Linux
Resolution	480 × 272
WDR	Yes
Face Capacity	3000
Event Capacity	100, 000
Communication Mode	TCP/IP, Wi-Fi
Working Temperature	-10°C to 55°C
RAM	512 MB
Screen Type	LCD
Camera	2 MP
Face Recognition Distance	0.3 m to 1.5 m
Face Recognition Accuracy	99%
Face Recognition Duration	< 0.2 s
Power Supply	12 VDC/2 A
Working Humidity	10% to 90%
Screen Size	4.3 inch
